Screwdriver bit NEO tools 09-575, Phillips PH1, 1/4" drive, 50 mm length, blister pack

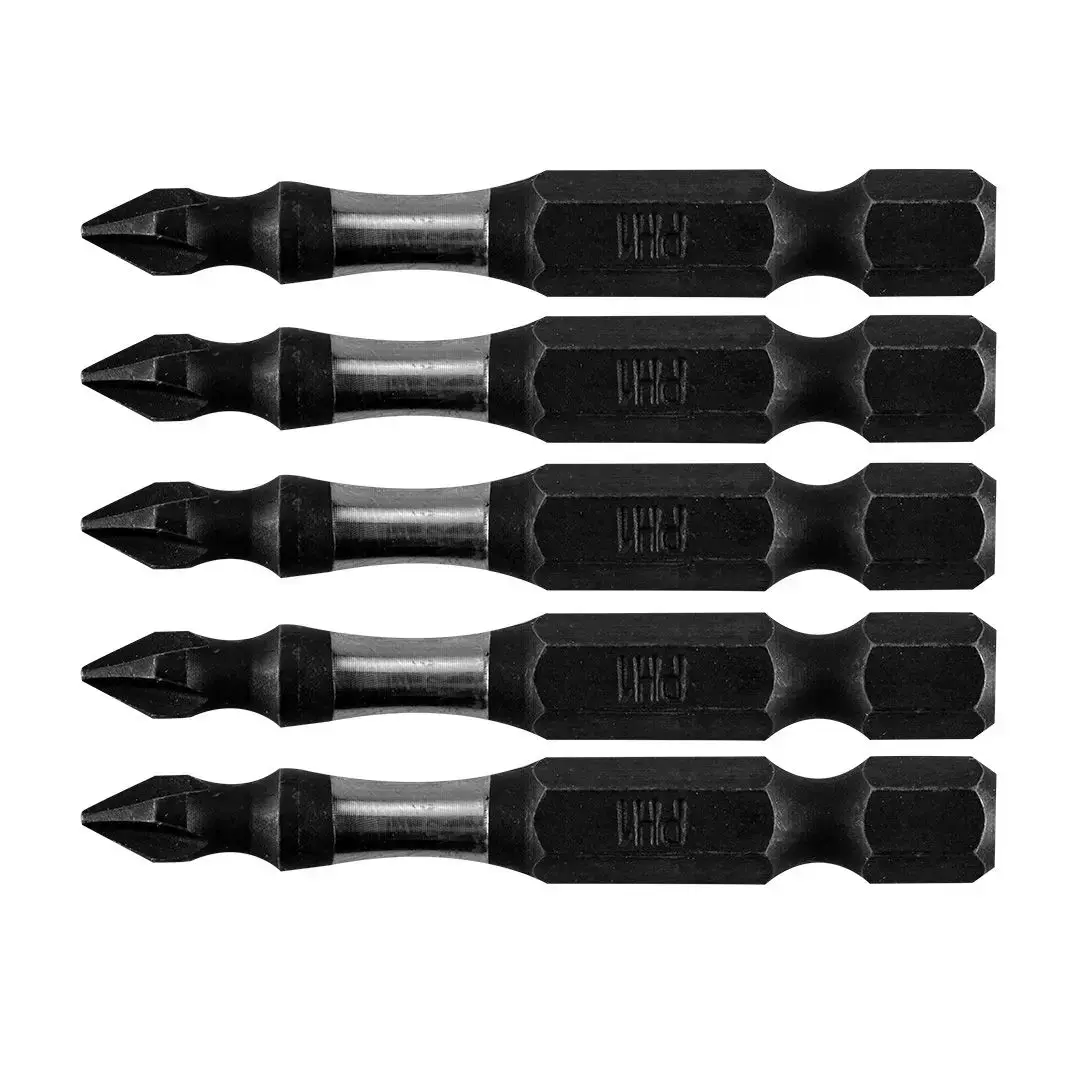

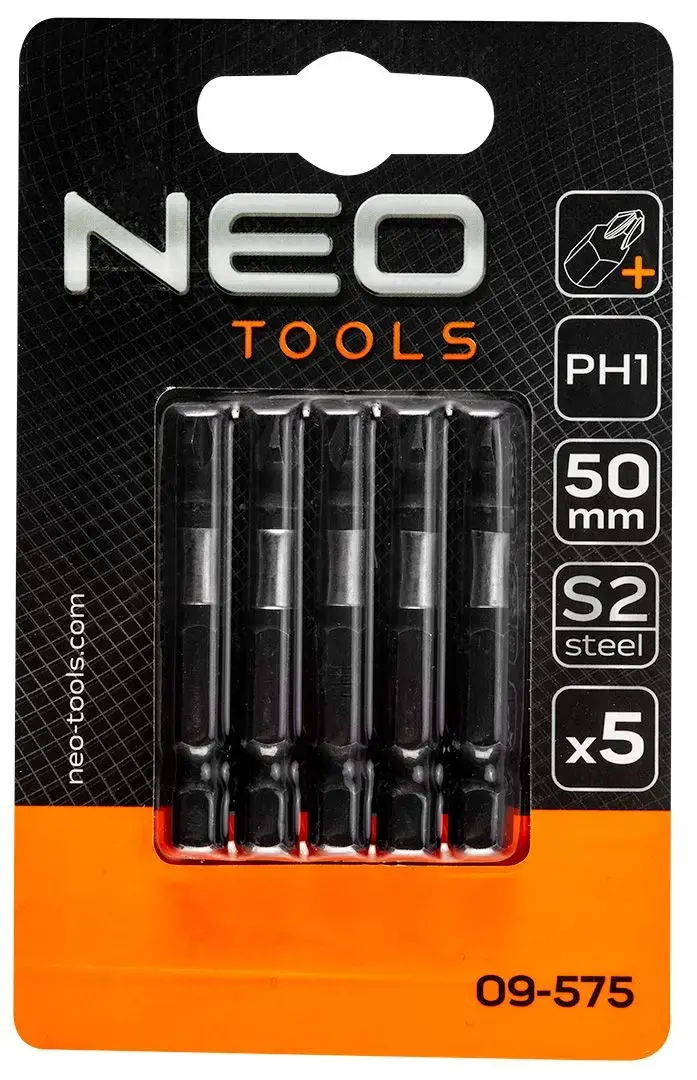

NEO tools 09-575 is a set of five Phillips PH1 screwdriver bits with a 1/4" hex drive and a 50 mm working length supplied in a blister pack. Cold-forged from S2 tool steel, these impact-rated PH1 tips are intended for use with 1/4" bit holders, drill-drivers and ratchets. The bits include a tip-slipping protection system and a torque absorption system that helps achieve a high tightening torque of 21.8 Nm while reducing wear for longer service life.

Advantages

The S2 steel construction and cold-forging process provide high hardness and durability suitable for frequent use. The tip-slipping protection system reduces cam-out and improves engagement with Phillips fasteners, while the torque absorption system lessens stress on the bit during high-torque operations, extending tool life. Supplied as a set of five, the blister pack keeps the bits organized and ready for professional assembly, maintenance and repair tasks.

Suitable for

• Assembly and disassembly of consumer and light industrial Phillips fasteners
• Use with 1/4" bit holders, drill-drivers and ratchets
• Maintenance, repair and renovation work requiring PH1 bits
• Professional or frequent-use applications where impact-rated bits are required

Key specifications

• Tip type: Phillips PH1
• Drive: 1/4" hex
• Working length: 50 mm
• Material: S2 tool steel (cold-forged)
• Quantity in pack: 5 pieces
• Designed torque capability: up to 21.8 Nm
• Features: tip-slipping protection system, torque absorption system

How to use

Select a PH1 bit from the blister pack and insert it into a compatible 1/4" bit holder, drill-driver or ratchet until it locks. Position the tip in the Phillips screw recess and apply steady axial pressure while turning the driver or activating the driver tool. For impact applications, use an impact-rated holder or driver and allow the tool’s percussive action to assist driving. After use, return unused bits to the blister pack to keep them organized and protected.

Usage recommendations

Use these S2 impact bits with compatible 1/4" impact drivers or holders and avoid excessive lateral force. Match the PH1 tip to the screw size to minimize cam-out; periodically inspect bits for wear and replace them when tip geometry is deformed to maintain safe and effective performance.
