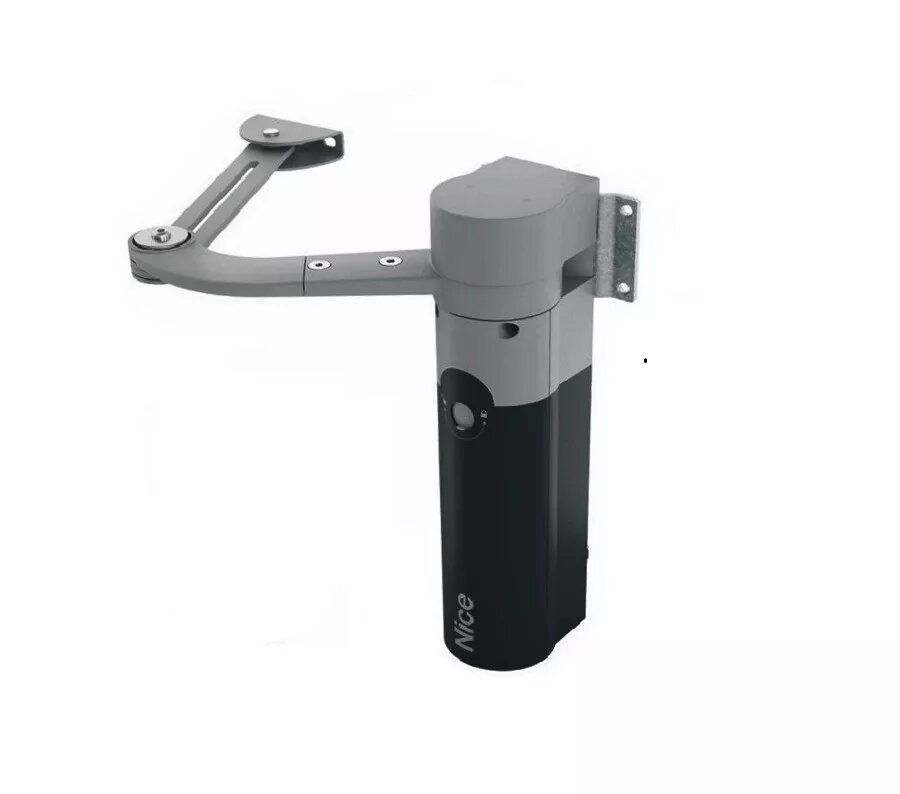

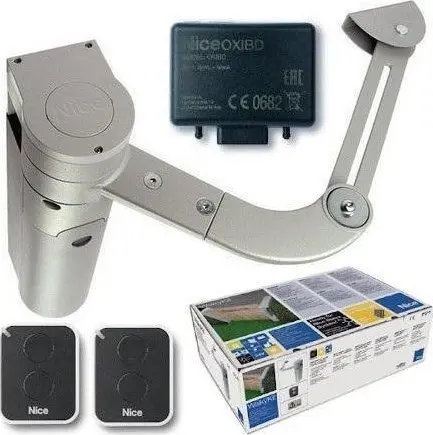

Swing gate opener kit Nice WALKY1024BDKCE — max gate weight 100 kg, 120 W motor, 230 V, 50 cycles/hour

Nice WALKY1024BDKCE is a compact swing gate opener kit engineered for single-leaf gates with a maximum weight of 100 kg. The unit integrates a 120 W motor driven from a 230 V supply and is rated for up to 50 operating cycles per hour. With modest physical dimensions (135 × 122.5 × 386 mm) and a low input current of 0.8 A, this kit is intended for residential and light-commercial installations that require reliable, space-efficient automation of a gate leaf.

Advantages

The opener provides consistent performance for gates up to 100 kg while maintaining low power consumption thanks to its 120 W motor and 0.8 A input current. Its compact housing allows installation in tight spaces and simplifies integration into existing gate systems. The mechanism is designed for repeated short cycles, supporting up to 50 cycles per hour, which makes it suitable for private homes and small businesses. Built-in features focus on dependable actuation and straightforward electrical connection to a standard 230 V supply.

Suitable for

• Single-leaf swing gates up to 100 kg
• Residential driveways and private properties
• Light-commercial entrances with moderate traffic
• Retrofit projects where compact dimensions are required

Key specifications

• Maximum gate leaf weight: 100 kg
• Motor power: 120 W
• Supply voltage: 230 V
• Input current: 0.8 A
• Work intensity: 50 cycles per hour
• Dimensions (W × H × D): 135 × 122.5 × 386 mm

How to use

Mount the unit according to the manufacturer’s installation guidelines for single-leaf swing gates, ensuring the supporting bracket and gate structure can handle the specified maximum weight. Connect the opener to a 230 V mains supply using appropriate cable and protective devices, and verify the control wiring and safety accessories before commissioning. Adjust end-stops, force settings and any mechanical linkages so that the gate operates smoothly throughout its travel. Perform initial test cycles to confirm correct opening and closing behavior and to check safety interlocks.

Usage recommendations

For reliable long-term operation, use the kit on gates within the specified weight limit and observe the 50 cycles/hour rating to avoid excessive continuous use. Regularly inspect mechanical linkages, mounting points and electrical connections; lubricate pivot points as recommended and replace worn components promptly. Ensure safety devices such as photocells or edge sensors are installed and tested to protect users and vehicles.
