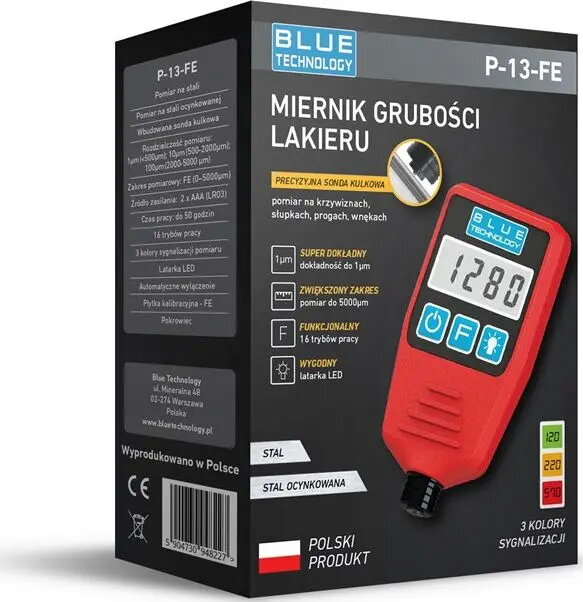

Paint Thickness Gauge No name P-13-FE, model 1461, for ferrous metals

The Paint Thickness Gauge No name P-13-FE, model 1461, is a handheld instrument designed to measure coating thickness on ferrous metal substrates. It provides nondestructive, single-point readings of paint, lacquer or plating thickness on iron and steel surfaces. The device is intended for practical on-site use during vehicle surveys, maintenance inspections, quality control checks and repair preparation where measurements on ferrous metals are required.

Advantages

The gauge offers quick, reliable thickness readings without damaging the coating, enabling fast inspection workflows and repeatable checks. Its compact handheld design supports portability and use in confined spaces. The measurement principle and ferrous-specific calibration produce consistent results on iron and steel surfaces, reducing the need for additional adapters or probes when working with these substrates.

Suitable for

• Vehicle body inspections and pre-purchase surveys on steel panels
• Quality control of painted or coated steel parts in production
• Site maintenance checks and corrosion protection audits on iron structures
• Workshop repair preparation and verification of coating uniformity

Key specifications

• Measure type: coating thickness on ferrous substrates (non-destructive)
• Application: paint, lacquer, plating and similar coatings on iron and steel
• Form factor: handheld portable gauge suitable for field use
• Operation: single-point point measurements for inspection and spot checks
• Typical use environment: workshop, production line, vehicle inspection sites, maintenance locations

How to use

Place the gauge perpendicular to the coated steel surface and activate a measurement according to the instrument's operating controls. Ensure the probe makes steady contact with the surface and avoid tilted or moving readings. Take several measurements across the area of interest to assess coating uniformity and record values for inspection or quality control documentation. Follow any device-specific startup or calibration instructions supplied with the instrument before first use.

Usage recommendations

For accurate results, clean the surface of loose debris, rust flakes and abrasive residues before measuring. Allow recently applied coatings to cure as recommended by the coating manufacturer prior to measurement. When inspecting complex shapes or edges, take multiple readings and average results to reduce local variance. Store the gauge in a dry, vibration-free location and perform periodic verification against a reference standard if available.
