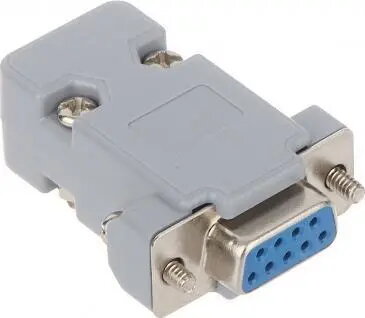

No name DB9-G serial port connector (DB9) — gendered panel/socket adapter

DB9-G by No name is a DB9 (9-pin) serial port connector designed for RS‑232 and similar serial interfaces. The connector provides a standard 9-pin D-sub connection suitable for panel or cable mounting, enabling reliable electrical and mechanical connection of serial devices. It is intended for use in repairs, custom cable assemblies, and installations where a conventional DB9 interface is required for data transfer, control signals, or legacy peripheral connectivity.

Advantages

This DB9-G connector offers a compact D-sub form factor that is widely compatible with RS‑232 equipment and other 9-pin serial interfaces. Its construction supports secure mounting to panels or integration into cable assemblies, ensuring stable contact and straightforward replacement of worn or damaged connectors. The design facilitates straightforward soldering or crimp termination depending on the variant used, providing flexibility for different assembly and repair workflows.

Suitable for

• Repairing or replacing damaged DB9 ports on devices and equipment
• Building custom serial cables for modems, routers, or industrial controllers
• Panel mounting in control cabinets, test fixtures, or enclosures
• Connecting legacy peripherals that use RS‑232 or compatible serial protocols

Key specifications

• Connector type: 9-pin D-sub (DB9) serial connector
• Mounting style: panel/socket or cable-mounted variant
• Contact count: 9 contacts for serial signal lines
• Compatible interfaces: RS‑232 and other 9-pin serial protocols
• Contact termination: suitable for solder or crimp termination depending on assembly
• Material considerations: metal shell with insulated contact housing for reliable shielding and mechanical strength

How to use

Install the DB9-G connector by aligning the D-sub shell with the panel cutout or cable assembly opening and securing it with the recommended mounting hardware. For cable-mounted installations, prepare the cable conductors to the specified lengths, terminate each conductor to the appropriate contact using soldering or crimp tools, and verify continuity. For panel-mounted sockets, ensure the connector is seated and fastened to the enclosure to maintain electrical grounding and mechanical stability. After assembly, test Tx/Rx and control signal lines with a multimeter or loopback test to confirm correct wiring and function.

Usage recommendations

When integrating the DB9-G connector, follow proper electrostatic handling and ensure secure mechanical fastening to avoid intermittent contacts. Use strain relief on cable-mounted versions and verify pin assignments against device wiring diagrams before powering the system. For installations exposed to electrical noise, maintain proper cable routing and grounding to preserve signal integrity.
