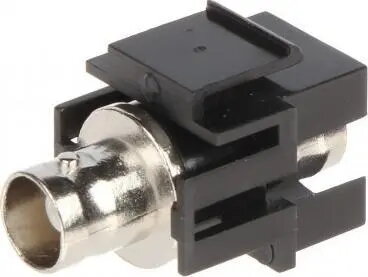

BNC Keystone Connector FX-BNC1 by No name — FX-BNC1 modular coupler adapter

Keystone-format BNC connector FX-BNC1 by No name is a modular coupler designed for installation into keystone wall plates and patch panels. It provides a standard BNC female interface for coaxial video and signal connections, enabling tidy panel mounting and easy replacement. The FX-BNC1 is intended to create a professional feed-through point for CCTV systems, analog video links and broadcast test setups where a reliable BNC connection is required.

Advantages

The FX-BNC1 keystone BNC coupler offers a compact and consistent mounting solution that simplifies cable routing and device access on patch panels and faceplates. Its standardized keystone dimensions allow tool-free swapping and integration with multi-port plates, reducing installation time. The female BNC interface maintains signal continuity for analog and composite video, while the modular housing keeps the connection secure and aligned within the panel opening.

Suitable for

• CCTV camera feed-throughs and security system panels
• Analog composite video patch panels and wall plates
• Broadcast test setups and temporary signal routing
• Professional AV racks where standard BNC feed-throughs are required

Key specifications

• Form factor: keystone modular coupler compatible with standard keystone plates and panels
• Connector type: female BNC jack for coaxial cable connections
• Material and finish: durable housing designed for panel mounting (plastic/metal composite)
• Signal compatibility: analog video, composite signals and generic coaxial signal passthroughs
• Mounting: snap-in installation into keystone openings, tool-free replacement

How to use

Insert the FX-BNC1 into a compatible keystone opening on a wall plate or patch panel until it snaps into place. Terminate the coaxial cable with a matching BNC male connector and attach it to the female BNC jack on the front of the module. To replace or reposition the module, gently depress the retaining clips and pull the coupler out of the keystone slot, then push a new module into the opening until it locks.
