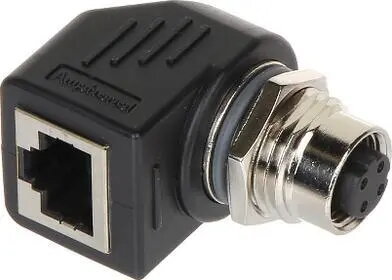

Right-angle adapter M12D to RJ45 No name M12D-G/RJ45-G — angular connector for M12 D-coded to RJ45

The Right-angle adapter M12D to RJ45 No name M12D-G/RJ45-G is an angular inline connector that converts a D-coded M12 interface to a standard RJ45 Ethernet plug. It is intended for installations where a 90° cable exit is required, providing a compact mechanical connection between industrial devices with M12 D ports and conventional Ethernet cabling. The adapter supports straightforward physical integration in control cabinets, automation modules, and networked sensors where space or routing constraints prevent a straight connector arrangement.

Advantages

This right-angle adapter offers a low-profile mechanical solution to redirect Ethernet cabling without bending the cable or adding extra external adapters. Its D-coded M12 side preserves orientation and pin assignment for data signals, while the RJ45 side provides compatibility with standard Ethernet cables and patch panels. The angular design reduces strain on connectors in confined spaces and helps maintain secure contact in applications with limited clearance.

Suitable for

• Connecting industrial devices with M12 D-coded Ethernet ports to standard RJ45 networks
• Cable routing in control cabinets and machine enclosures with limited space
• Automation equipment and networked sensors requiring a 90° cable exit
• Field installations where connector clearance or strain relief is needed

Key specifications

• Connector type: M12 D-coded (female or male depending on mating side) to RJ45
• Orientation: right-angle (90°) inline adapter
• Function: Ethernet data connection between M12 D and RJ45 interfaces
• Mechanical design: compact angular housing for limited-clearance installations
• Compatibility: standard RJ45 Ethernet cables and equipment with M12 D-coded ports

How to use

Align the M12 D-coded connector with the device’s M12 socket and engage the threaded coupling until secure, then insert a standard RJ45 plug into the RJ45 receptacle until it locks. Ensure correct orientation of the D-coding when connecting to avoid incorrect pin alignment. Do not force the connector; if resistance is felt, check the mating faces for debris or misalignment. Tighten the M12 coupling to the recommended torque specified by the equipment manufacturer to maintain reliable contact and mechanical stability.

Usage recommendations

Use the adapter in dry, clean environments or within enclosures rated for the installation’s environmental conditions. Avoid exposing the adapter to prolonged direct moisture or corrosive agents unless the surrounding installation provides appropriate protection. Where vibration or mechanical stress is present, secure connected cables with strain relief or cable clamps to prevent undue load on the adapter and mating connectors.
