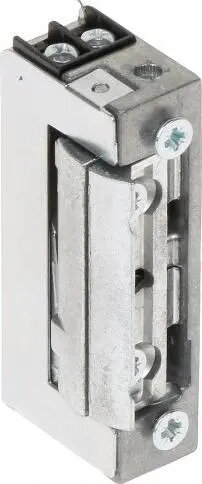

Electromagnetic Door Catch No name R5-24.10, 24 V DC, surface mount

Electromagnetic Door Catch No name R5-24.10 is a surface-mounted 24 V DC electromagnetic latch designed to provide controlled holding and release of doors, gates or access panels. The device operates as an electrically actuated fastening element that integrates into access control and security systems, allowing remote unlocking and temporary secure retention without mechanical keys. Its surface-mount design simplifies installation on visible frames and panels.

Advantages

The electromagnetic latch offers consistent holding force with instantaneous release when power is cut or reversed, enabling reliable electronic control of entry points. Its 24 V DC operation is compatible with common access control power supplies and reduces interference with other low-voltage components. Surface mounting eliminates the need for recessed fittings and accelerates installation on metal or wooden frames. The unit is suitable for retrofit projects where minimal frame modification is preferred.

Suitable for

• Access control systems in commercial and residential buildings
• Security doors and entry gates requiring remote release
• Cabinets, service panels and internal doors needing temporary holding
• Retrofitting existing frames where surface mount is advantageous

Key specifications

• Operating voltage: 24 V DC
• Mounting type: surface mount for frame or panel installation
• Function: electromagnetic holding and electrically controlled release
• Intended application: doors, gates, access panels and similar closures

How to use

Install the electromagnetic catch on a suitably prepared surface of the frame or fixed panel, aligning the armature plate on the moving door leaf or gate for full contact. Connect the unit to a 24 V DC power supply and integrate wiring into the access control or security system according to standard electrical practices. Ensure that the contact faces are clean and free from paint or debris to maintain reliable magnetic attraction. Test operation by energizing and de-energizing the unit to verify holding and release performance before placing into regular service.

Usage recommendations

For long-term reliability, mount the device on a rigid surface and protect wiring from mechanical stress. Use a regulated 24 V DC supply and, where applicable, coordinate with the access control system for timed unlocking and fail-safe or fail-secure configurations. Periodically inspect the contact surfaces and mounting hardware for alignment and cleanliness to ensure consistent holding force.
