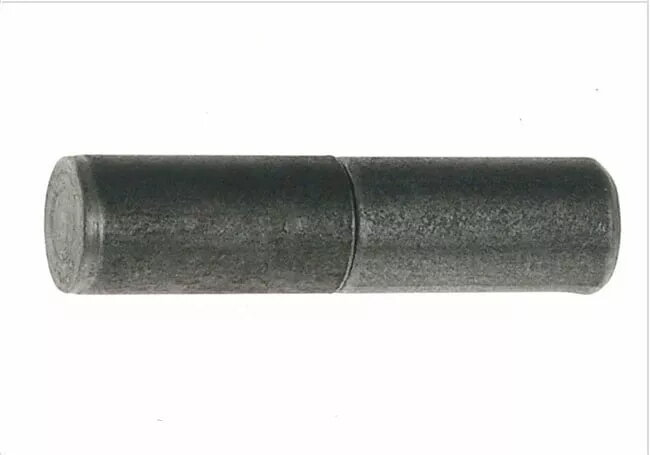

Hinge No name ZAW TOC 18 18x65 mm — door hinge, 18×65 mm

No name ZAW TOC 18 hinge, dimensions 18×65 mm, is a compact metal door hinge designed for mounting doors or cabinets where a small-profile hinge is required. The hinge provides a pivoting function and stable support for lightweight to medium doors and furniture panels. Its compact size makes it suitable for applications with limited overlay or frame depth while simplifying installation and enabling smooth opening and closing.

Advantages

The hinge’s small footprint and metal construction offer a balance of durability and discreet appearance without adding bulk to the door edge. Its standardized 18×65 mm dimensions allow straightforward replacement or retrofitting in common interior doors and furniture. The hinge supports reliable pivot movement and helps maintain door alignment during repeated use.

Suitable for

• Interior residential doors with limited frame depth
• Cabinet doors, wardrobes and cupboards
• Lightweight to medium-weight wooden or composite doors
• Retrofit or replacement of small-profile hinges

Key specifications

• Material: metal construction suitable for door mounting
• Dimensions: 18 × 65 mm overall hinge plate size
• Function: pivoting hinge for door opening and closing
• Installation type: surface-mounted hinge for doors and cabinets

How to use

Position the hinge on the door edge and the corresponding frame or cabinet side so that the pivot aligns with the desired swing direction. Mark screw positions using the hinge holes, pre-drill pilot holes if recommended for the door material, and fasten the hinge plates with appropriate screws for the substrate. Repeat for the second hinge if installing a typical two-hinge configuration, then check door alignment and adjust fasteners as needed to ensure smooth operation.

Usage recommendations

Use appropriate-length screws for the door and frame material to ensure secure mounting. For heavier doors or high-traffic applications, consider using additional or larger hinges and verify that the hinge dimensions match mounting recesses or overlay requirements. Regularly check fasteners and alignment to maintain smooth opening and closing.
