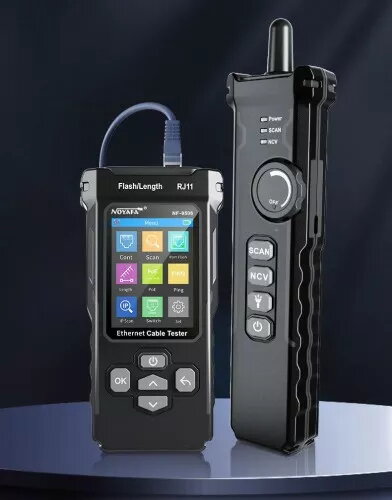

Multifunction Cable Tester NOYAFA NF-8506 — cable length, PoE, ping tests, port check

NOYAFA NF-8506 is a multifunction cable tester designed for diagnosing Ethernet cabling and network links. It combines cable length measurement, PoE detection, ping testing and port verification in a single handheld unit to help technicians identify wiring faults, locate opens or shorts and validate connectivity. The tester is intended for on-site troubleshooting, installation verification and routine maintenance of structured cabling systems.

Advantages

The NOYAFA NF-8506 provides integrated functions—length measurement, PoE presence and power classification detection, ping response check and port status verification—without the need for multiple devices. It offers straightforward operation with a clear display and intuitive controls to speed up diagnostics. The unit supports accurate distance-to-fault readings, rapid link verification and basic network communication checks, enabling technicians to isolate physical layer issues and confirm link-level connectivity efficiently.

Suitable for

• Installation and commissioning of Ethernet cabling
• On-site troubleshooting of network faults
• Verification of PoE presence and basic power classification
• Checking cable continuity, opens, shorts and miswires
• Quick network link checks using ping and port diagnostics

Key specifications

• Functions: cable length measurement, PoE detection, ping test, port check
• Cable types supported: UTP/STP Cat5e/Cat6 and similar Ethernet twisted-pair cables
• Length measurement method: time-domain reflectometry-style distance-to-fault detection
• PoE detection: presence detection and basic power class identification
• Ping test: ICMP ping to verify reachability and basic latency indication
• Port check: link up/down and link speed indication where supported
• Display: readable LCD for measurements and status readouts
• Power: battery-operated for field use
• Form factor: handheld, portable test instrument

How to use

Connect the tester to the cable end or network port to be diagnosed and power on the device. Select the required function—length measurement to estimate cable length and locate faults, PoE test to detect presence of power on pairs and classify basic power levels, ping test to verify IP reachability, or port check to confirm link status. Follow on-screen prompts and interpret the numeric distance readouts, PoE indicators and ping results to determine the condition of the link. For cable length tests, ensure the far end is disconnected from active network equipment or use the appropriate remote terminator if available.

Usage recommendations

Use the NF-8506 in combination with proper safety practices: de-energize circuits when possible before testing cabling, avoid testing across live high-voltage sources, and follow local regulations when working near powered equipment. For accurate length and fault location measurements, minimize crosstalk and keep test leads and connectors clean. When performing ping or port checks, verify network addressing and permissions to avoid false negatives due to blocked ICMP traffic or port restrictions.
