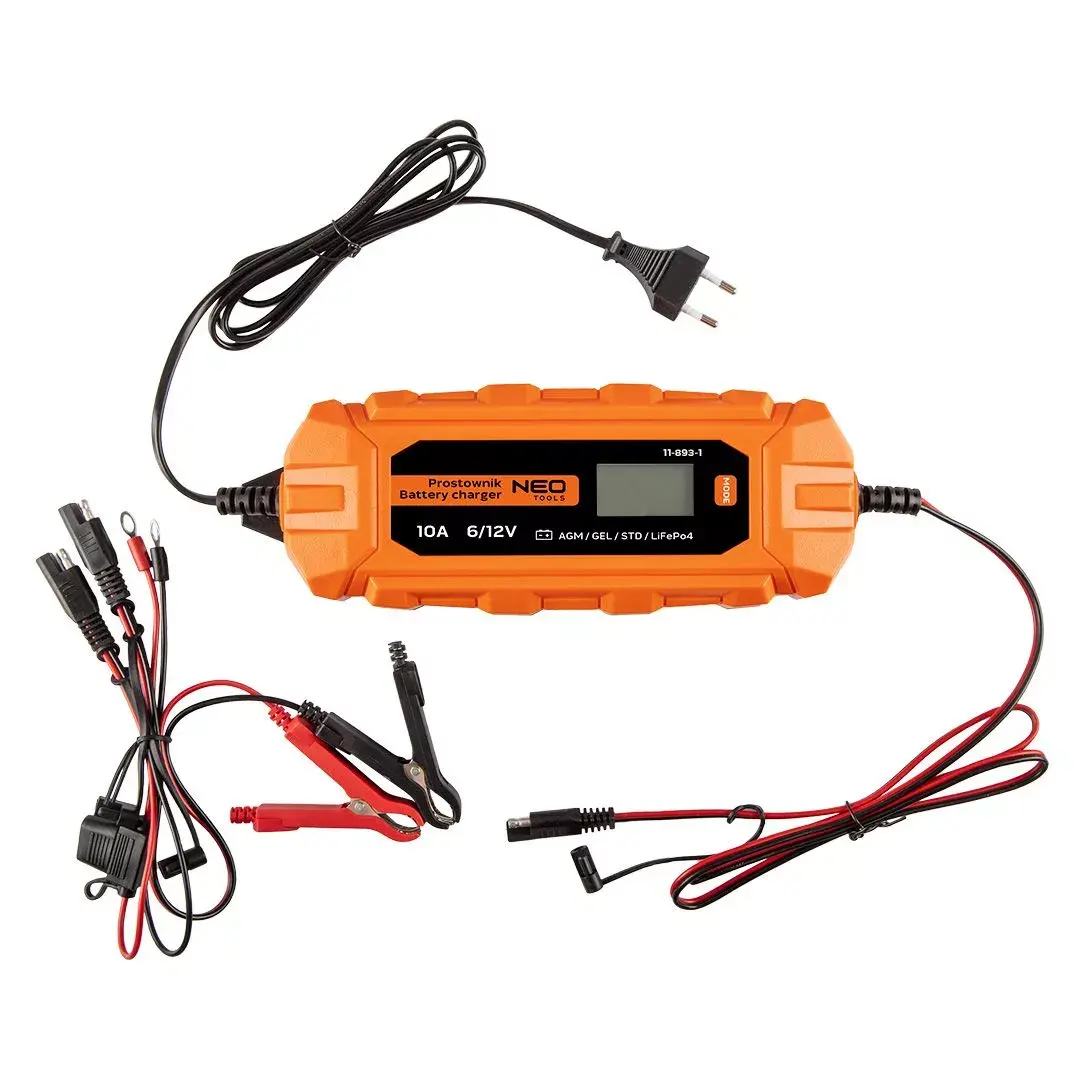

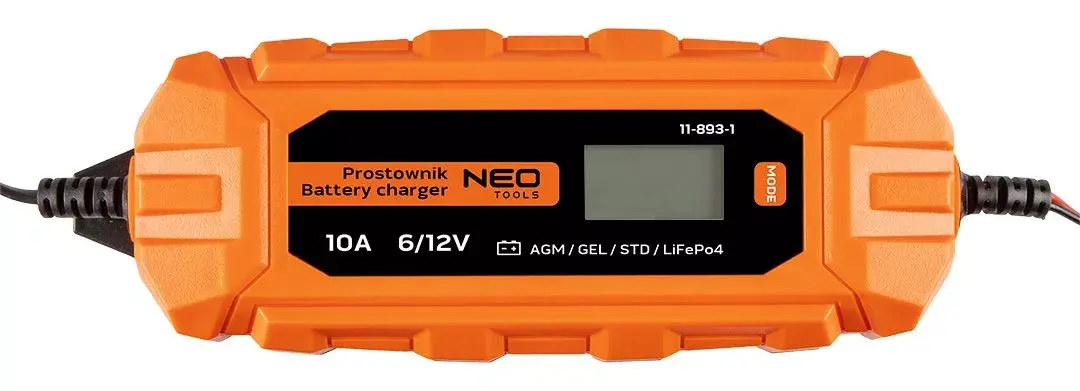

Vehicle Battery Charger Accessory NEO tools 11-893-1 Depth 280 mm

Automatic charger 10A/160W for 3–200 Ah acid, AGM and GEL batteries designed for charging, maintenance and regeneration of vehicle batteries. The NEO Tools unit can revive deeply discharged batteries from about 3 V and supports 6 V and 12 V battery systems. It features microprocessor control, an LCD display that shows charging parameters and selectable charging modes including memory retention during battery replacement. IP65 protection rating makes it suitable for use in garages and workshops.

Advantages

The charger provides fully automatic 10-stage charging with selectable currents (2 A and 10 A) and a maximum power output of 160 W. It includes functions for maintenance, regeneration and battery testing, and offers built-in protections against short circuit, reverse polarity, overheating and overcharge. The unit is compact (depth 280 mm) and comes with connection cables and user instructions.

Suitable for

• Charging and maintaining 6 V and 12 V lead-acid, AGM and GEL vehicle batteries
• Regenerating deeply discharged batteries down to approximately 3 V
• Use in garages, workshops and for home vehicle maintenance

When it may not be suitable

This charger is not intended for professional high-current jump-starting of large battery banks or vehicles that require currents above the specified 10 A output. It also may not be suitable for battery chemistries other than lead‑acid types unless explicitly stated compatible (for example, some LiFePO4 batteries require specific charging profiles).

Key specifications

• Charging current: selectable 2 A / 10 A
• Charging power: 160 W
• Supported battery capacity range: 3–200 Ah
• Supported battery voltages: 6 V and 12 V
• Charging algorithm: fully automatic 10-stage, microprocessor controlled

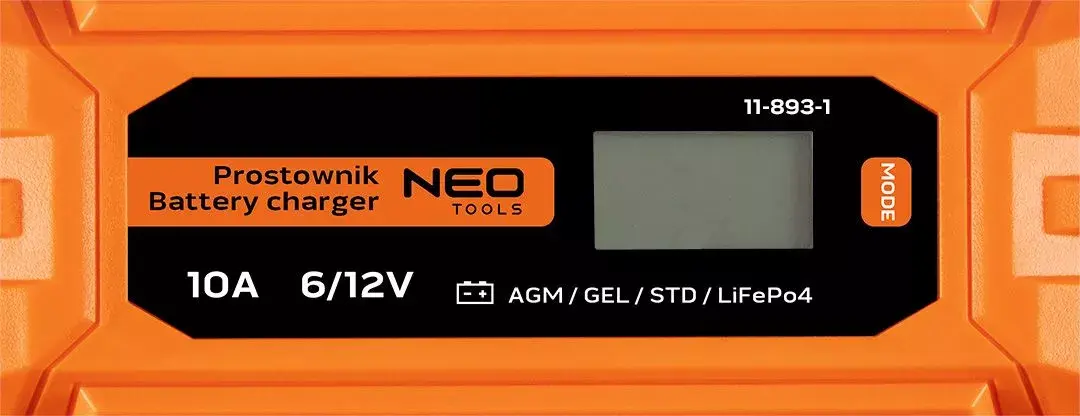

• Display: built-in LCD showing charging data
• Protection class: IP65
• Built-in protections: short-circuit, reverse polarity, overheating, overcharge protection

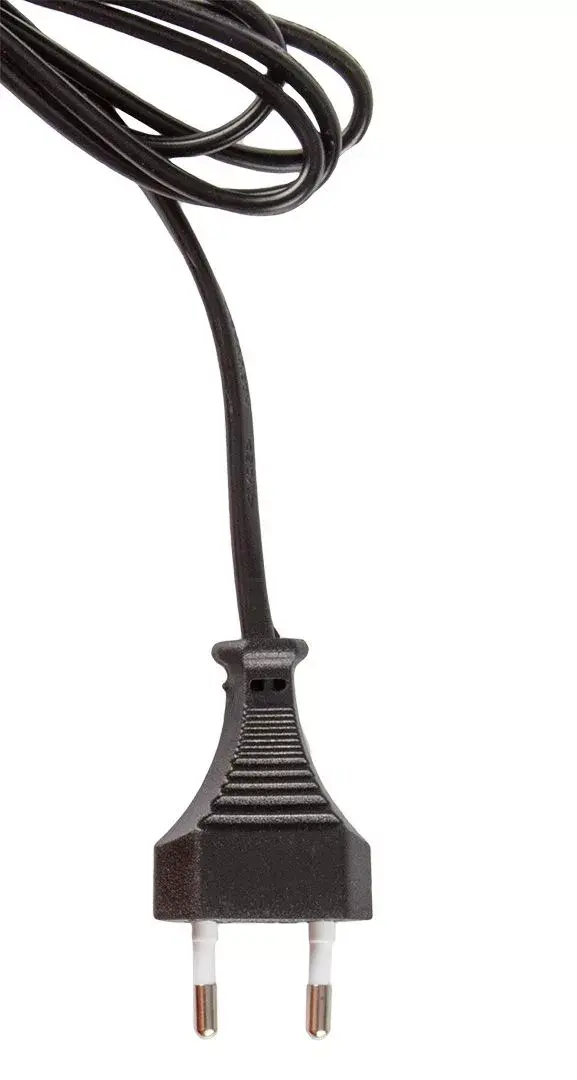

• Supply voltage: 220–240 V, 50–60 Hz
• Cable length: 1.5 m
• Dimensions note: depth 280 mm

How to use

Connect the charger to the mains (220–240 V), select the appropriate voltage and charging mode for the battery type, then attach the clamps to the battery terminals observing correct polarity. The microprocessor-controlled unit will run the automatic 10-stage program, display charging parameters on the LCD and switch to maintenance mode when charging is complete. For deeply discharged batteries allow the regeneration mode to run and follow the instructions provided with the unit.

What to consider before purchase

• Ensure your vehicle battery type (acid/AGM/GEL) and voltage (6 V or 12 V) are supported
• Confirm 10 A maximum charging current is sufficient for your intended use (not suitable for high-current jump-starts)
• Check that the IP65 rating and cable length meet your working environment needs

Usage recommendations

Use the charger in a well-ventilated area, follow polarity instructions carefully, monitor the LCD during the first charge cycles, and store the unit in a dry place when not in use. For long-term battery maintenance, use the lower current setting to avoid overheating and prolong battery life.
