ASUS ExpertCenter D5 SFF S501SER Desktop PC, Intel Core i5-14500, 8GB DDR5 RAM, 512GB SSD, Windows 11 Home, Black

PCI Express x16 (Gen 4.x) slots:

1

Processor

Processor model:

i5-14500

Processor boost frequency:

5 GHz

Processor cores:

14

Processor threads:

20

Processor cache:

24 MB

Processor cache type:

Smart Cache

Processor manufacturer:

Intel

Processor base power:

65 W

Maximum turbo power:

154 W

Efficient-core base frequency:

1.9 GHz

Performance-core base frequency:

2.6 GHz

Efficient-core Max Turbo Frequency:

3.7 GHz

Performance-core Max Turbo Frequency:

5 GHz

Efficient cores:

8

Performance cores:

6

Memory

Internal memory:

8 GB

Internal memory type:

DDR5-SDRAM

Memory slots:

2x DIMM

Maximum internal memory:

64 GB

Memory layout (slots x size):

1 x 8

Storage

Total storage capacity:

512 GB

SSD capacity:

512 GB

SSD interface:

PCI Express 4.0

Number of SSDs installed:

1

Storage media:

SSD

SSD form factor:

M.2

NVMe:

Yes

Total SSDs capacity:

512 GB

M.2 SSD size:

2280 (22 x 80 mm)

Graphics

On-board graphics card model:

Intel UHD Graphics 770

Discrete graphics card model:

Not available

Discrete graphics card:

No

On-board graphics card:

Yes

On-board GPU manufacturer:

Intel

Network

Wi-Fi:

Yes

Wi-Fi standards:

Wi-Fi 6 (802.11ax)

Bluetooth:

Yes

Ethernet LAN:

Yes

Bluetooth version:

5.4

Ethernet LAN data rates:

10, 1000, 100

Top Wi-Fi standard:

Wi-Fi 6 (802.11ax)

Antenna type:

2x2

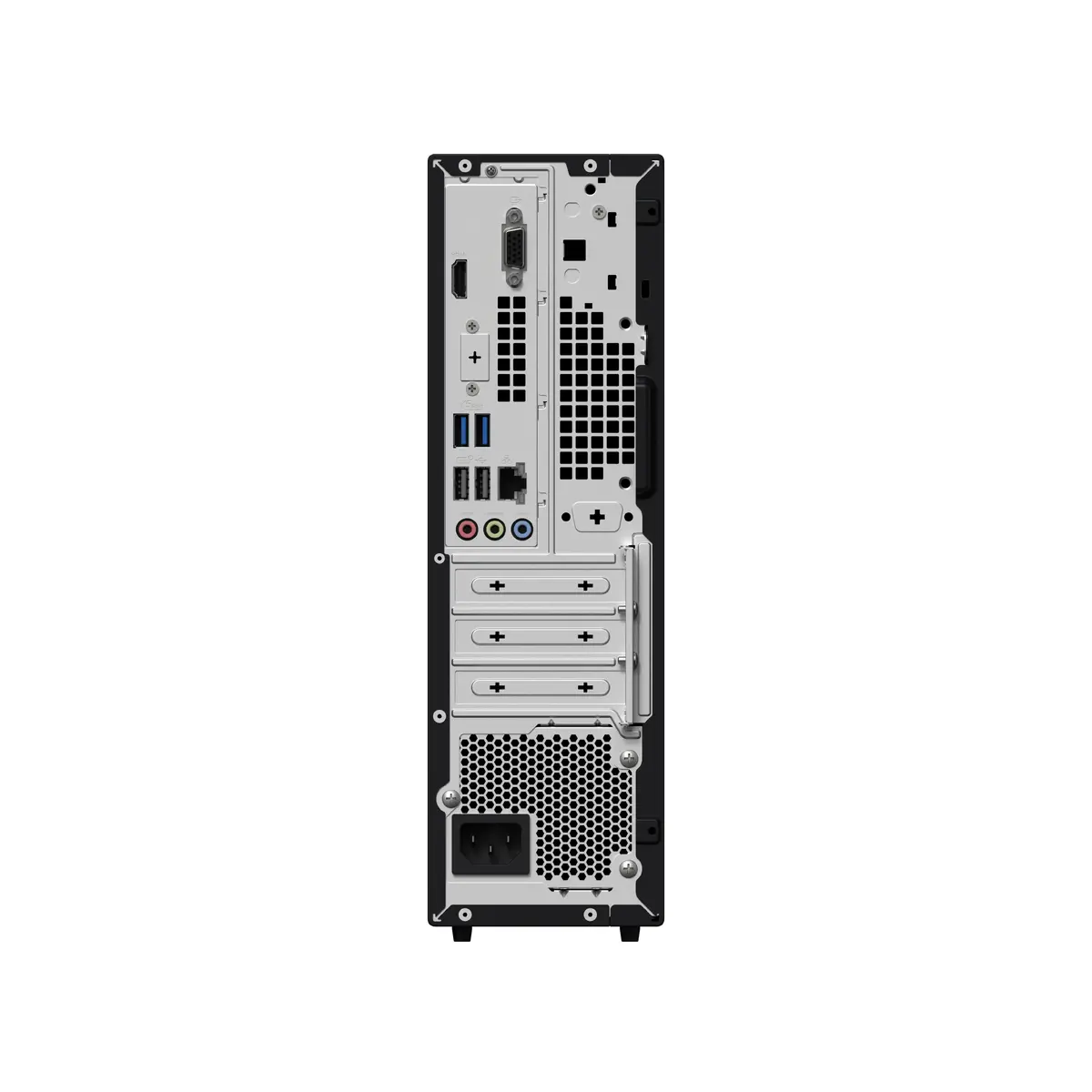

Ports & interfaces

Ethernet LAN (RJ-45) ports:

1

USB 2.0 ports quantity:

4

Headphone outputs:

1

VGA (D-Sub) ports quantity:

1

HDMI ports quantity:

1

HDMI version:

1.4

Number of SATA III connectors:

4

Combo headphone/mic port:

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

0

Thunderbolt 3 ports quantity:

0

Number of rear USB ports:

4

Number of front USB ports:

4

Number of rear audio ports:

3

Number of front audio ports:

2

Software

Operating system installed:

Windows 11 Home

Operating system architecture:

64-bit

Expansion slots

PCI Express x1 (Gen 3.x) slots:

2

Design

Product colour:

Black

Chassis type:

Tower

Cable lock slot:

Yes

Number of 2.5" bays:

1

Cable lock slot type:

Kensington

80 PLUS certification:

80 PLUS Bronze

Colour name:

Extreme Dark Gray

Weight & dimensions

Weight:

6 kg

Package weight:

6250 g

Height:

309 mm

Width:

93 mm

Depth:

296 mm

Package depth:

168 mm

Package height:

510 mm

Package width:

490 mm

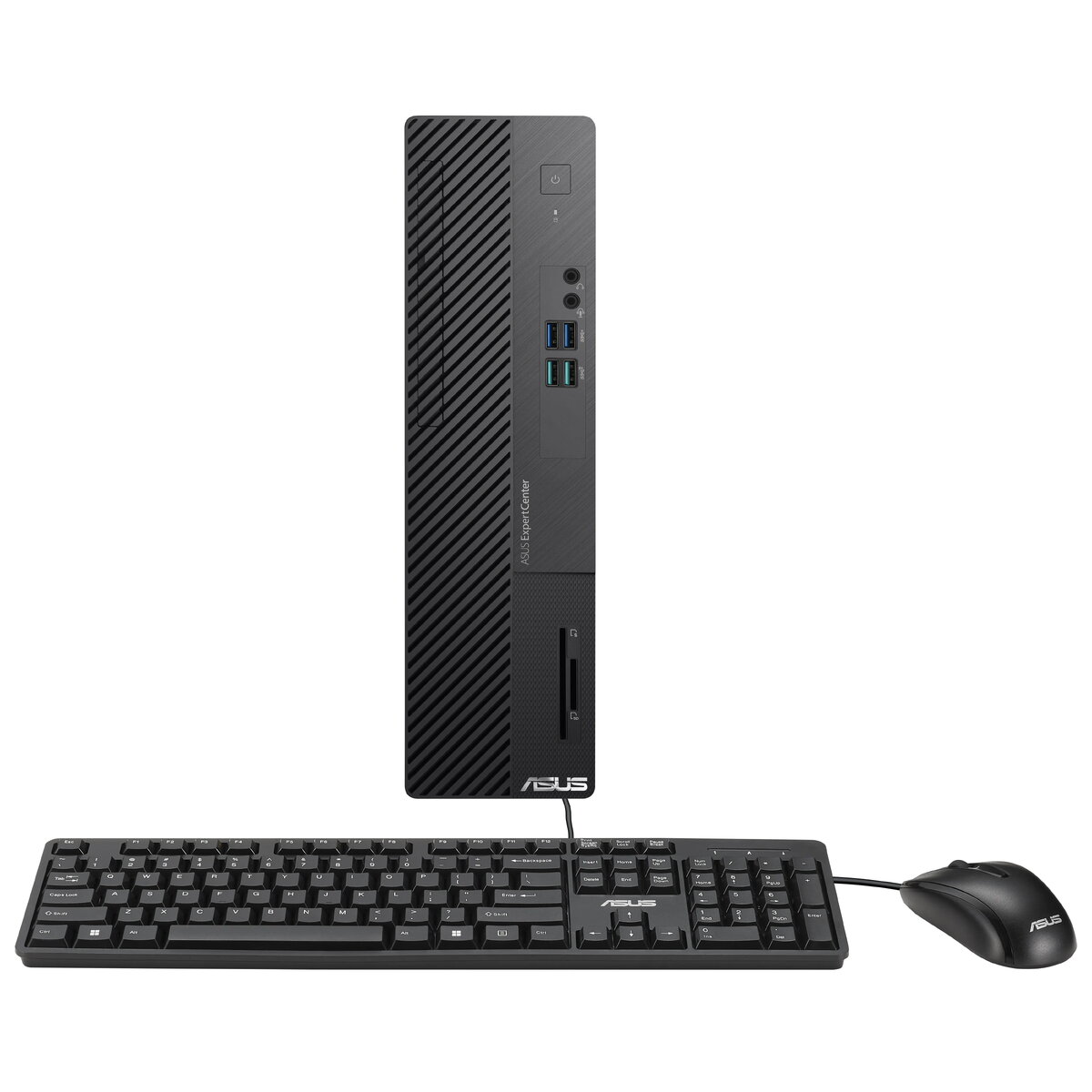

Packaging content

Mouse included:

Yes

Keyboard included:

Yes

Mouse connectivity:

Wired

Keyboard connectivity:

Wired

Other features

Number of 3.5" bays:

1

Line-in:

Yes

Line-out:

Yes

Power supply:

180 W

Display included:

No

Audio output channels:

7.1

Introduction year:

2025

Audio

Audio system:

High Definition Audio

Performance

Optical drive type:

No

Motherboard chipset:

Intel B760

Trusted Platform Module (TPM):

Yes

Password protection type:

HDD, User

Market positioning:

Business

Product type:

PC

Password protection:

Yes
