Coaxial Adapter OEM SMA Female to TS9 50 Ohm CA-SF-TS9

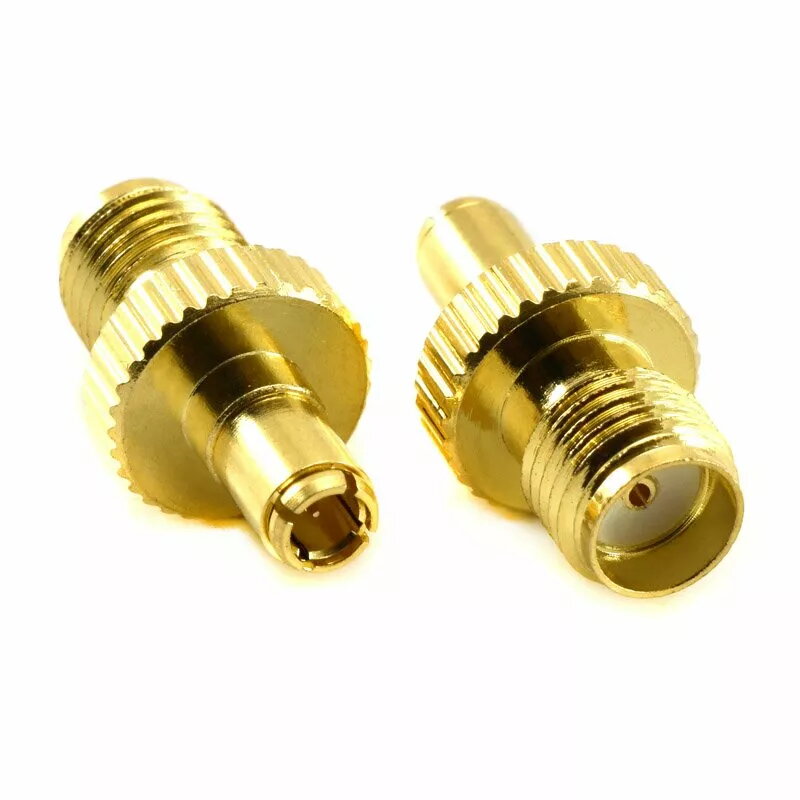

Coaxial Adapter OEM SMA Female to TS9 50 Ohm CA-SF-TS9 is a compact RF adapter designed to convert an SMA female connector to a TS9 plug while maintaining a 50 Ohm impedance. It enables connection between devices or antennas with SMA female ports and cables or equipment that use TS9 plugs. The adapter is suitable for signal transmission lines in wireless modems, routers and external antenna assemblies where preserving impedance and ensuring a secure mechanical fit are important.

Advantages

This OEM SMA Female to TS9 adapter provides a straightforward mechanical interface without active components, preserving signal integrity with a nominal 50 Ohm impedance. Its compact metal construction offers stable mechanical connection and consistent contact for RF signals. The simple form factor supports easy installation and replacement in constrained spaces, and the adapter is compatible with common RF cabling and consumer wireless hardware that require SMA-to-TS9 conversion.

Suitable for

• Connecting external antennas with SMA female ports to modems or routers with TS9 plugs
• Adapting measurement or test equipment to TS9-terminated cables
• Temporary or permanent installations where SMA-to-TS9 conversion is needed
• Field repairs and on-site replacements for wireless connectivity components

Key specifications

• Connector conversion: SMA female to TS9 plug
• Impedance: 50 Ohm
• Function: Passive coaxial adapter for RF signal transmission
• Material: Metal body with internal contact suitable for RF use
• Form factor: Compact inline adapter for constrained spaces

How to use

Align the SMA male pin on the device or antenna with the SMA female end of the adapter and screw or push the connector into place according to the SMA coupling method. Insert the TS9 plug into the TS9 end of the adapter until it seats securely. Ensure connections are hand-tightened to avoid damage from over-tightening. Verify signal continuity and system function after installation and route cables to avoid sharp bends that could degrade RF performance.

Usage recommendations

Use this adapter in environments where 50 Ohm impedance is required to minimize reflections. Avoid exposing the adapter to prolonged moisture or corrosive conditions; if used outdoors, place it within a weatherproof enclosure or use corrosion-resistant sealing methods. For critical RF systems, verify insertion loss and return loss in the specific installation to confirm acceptable performance.
