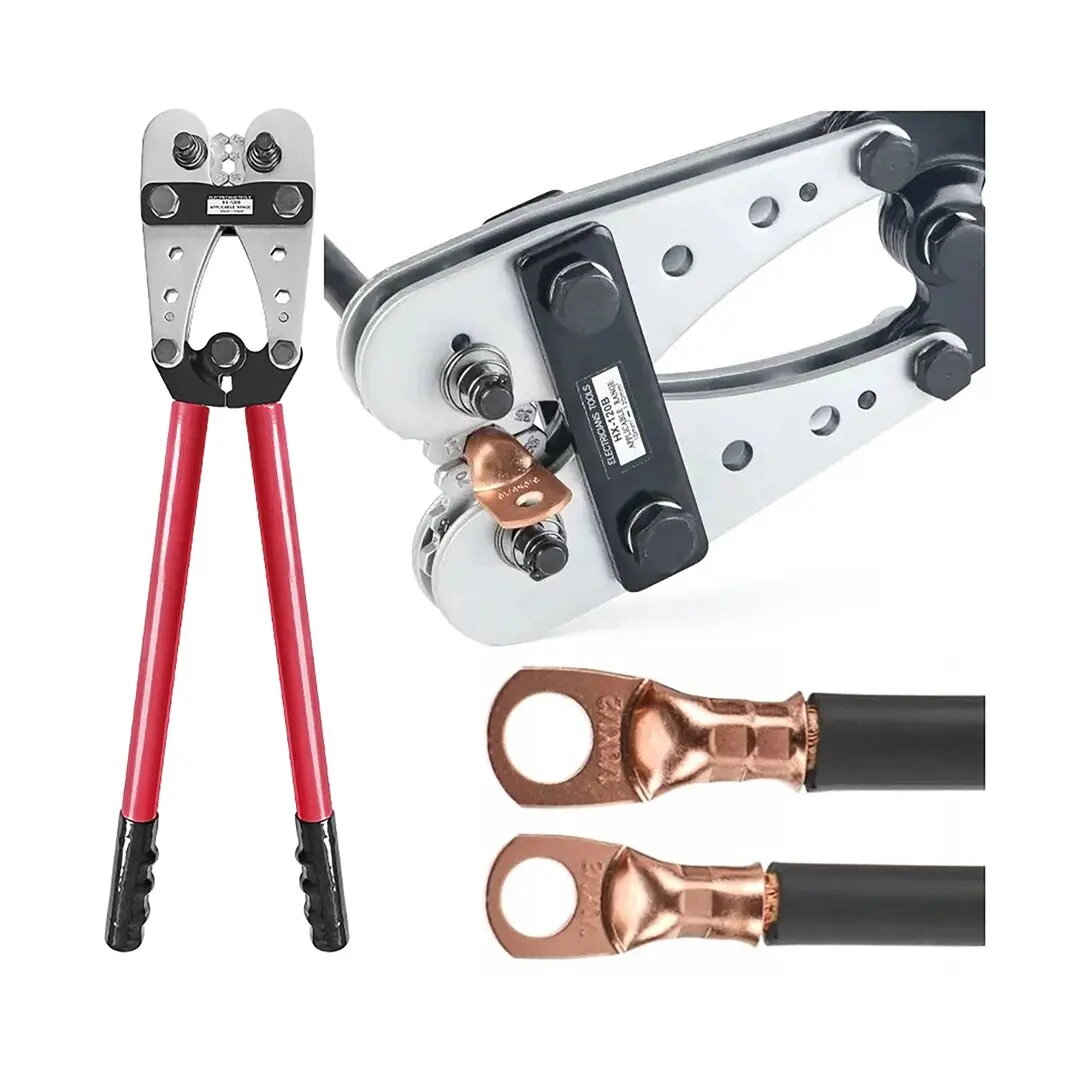

Cable Lug Crimping Tool for 10-120mm Terminals

The Cable Lug Crimping Tool for 10-120mm Terminals is a professional-grade manual device engineered for the secure attachment of cable lugs. Designed to handle a wide range of cross-sections from 10mm² to 120mm², this tool provides the necessary force to create durable, low-resistance electrical connections. Its robust construction ensures longevity and consistent performance, making it an essential instrument for both industrial and residential electrical wiring tasks.

Advantages

This crimping tool offers exceptional mechanical leverage, allowing users to achieve high-quality terminations with minimal physical effort. The precision-engineered dies ensure that the pressure is distributed evenly across the terminal, preventing damage to the cable strands while guaranteeing a gas-tight connection. Its ergonomic design and durable materials make it suitable for frequent use in demanding environments, providing reliable results for various heavy-duty electrical projects.

Suitable for

• Securing cable lugs on copper and aluminum conductors
• Industrial electrical panel assembly
• Residential power distribution wiring
• Maintenance and repair of heavy-duty electrical systems
• Professional electrical installation projects

When it may not be suitable

This tool is not intended for use with non-standard terminal types or materials outside the specified 10-120mm² range. It may also be less efficient for high-volume production lines where automated hydraulic or electric crimping machines are required for faster throughput.

Key specifications

• Crimping range: 10-120mm²
• Operation type: Manual
• Application: Cable lug termination
• Construction: Heavy-duty metal alloy

How to use

To use the tool, first select the appropriate die size corresponding to the cable lug and wire cross-section. Strip the insulation from the cable end to the required length, insert the conductor into the lug, and place the assembly between the crimping jaws. Close the handles firmly until the crimping cycle is complete and the jaws have fully compressed the terminal onto the wire. Ensure the connection is secure before finalizing the installation.

What to consider before purchase

• Verify the cross-section of the cables you intend to crimp
• Ensure the tool is compatible with the specific lug types used in your project
• Assess the physical space available for manual operation

Usage recommendations

Always wear appropriate personal protective equipment and ensure the electrical circuit is de-energized before performing any crimping work to maintain safety standards.
