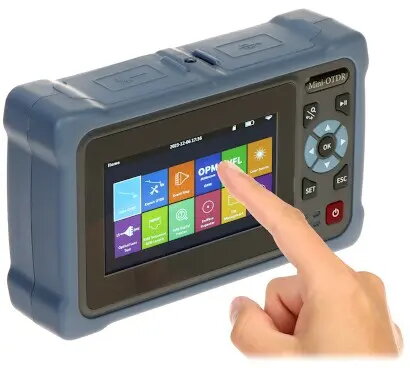

Optical Time Domain Reflectometer OTDR-XK40D

The Optical Time Domain Reflectometer OTDR-XK40D is a professional-grade diagnostic instrument engineered for the precise testing, maintenance, and troubleshooting of fiber optic networks. By utilizing advanced light backscattering technology, this device provides detailed insights into the integrity of fiber links, allowing technicians to identify, locate, and analyze events such as splices, connectors, and breaks with high accuracy. It serves as a fundamental tool for ensuring the performance and reliability of modern telecommunications infrastructure.

Advantages

The OTDR-XK40D offers exceptional precision in fault detection, significantly reducing downtime during network repairs. Its robust design is tailored for field operations, providing reliable measurements even in challenging environments. The intuitive interface allows for rapid data acquisition and analysis, enabling engineers to characterize optical fiber links efficiently. By providing comprehensive diagnostic data, this reflectometer helps in maintaining optimal signal transmission quality across various network topologies.

Suitable for

• Fiber optic network installation and commissioning
• Routine maintenance and troubleshooting of telecommunication lines
• Locating fiber breaks, bends, and splice losses
• Characterization of optical fiber links in enterprise and ISP networks

When it may not be suitable

This device is designed for professional telecommunications applications and may be overly complex for basic residential fiber troubleshooting. It is not intended for use on non-optical cabling systems or for applications requiring specialized high-power laser sources beyond its standard operational range.

Key specifications

• High-precision fault location and event analysis
• Support for standard fiber optic link characterization
• Integrated loss measurement capabilities
• Designed for field-based network maintenance
• Optimized for telecommunications infrastructure testing

How to use

To operate the OTDR-XK40D, connect the fiber optic cable under test to the appropriate optical port using a clean, compatible patch cord. Power on the device and select the desired testing parameters, such as pulse width and measurement range, based on the length and type of the fiber link. Initiate the scan to allow the device to analyze the backscattered light. Once the measurement is complete, review the trace on the display to identify any anomalies or signal losses along the fiber path.

What to consider before purchase

• Compatibility with your specific fiber type, such as single-mode or multi-mode
• The typical distance range of the fiber networks you intend to test
• Requirements for data export and reporting software
• Need for periodic calibration to maintain measurement accuracy

Usage recommendations

Always ensure that the fiber connectors are thoroughly cleaned before making any connections to prevent damage to the optical port and to ensure accurate measurement results. Regularly update the device firmware if available to benefit from improved diagnostic algorithms.
