LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point

Name: LevelOne WAP-8121 AC750 Dual Band WAP-8121
Brand: OEM
SKU: 12411052
Price: 127.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point, Ceiling Mount

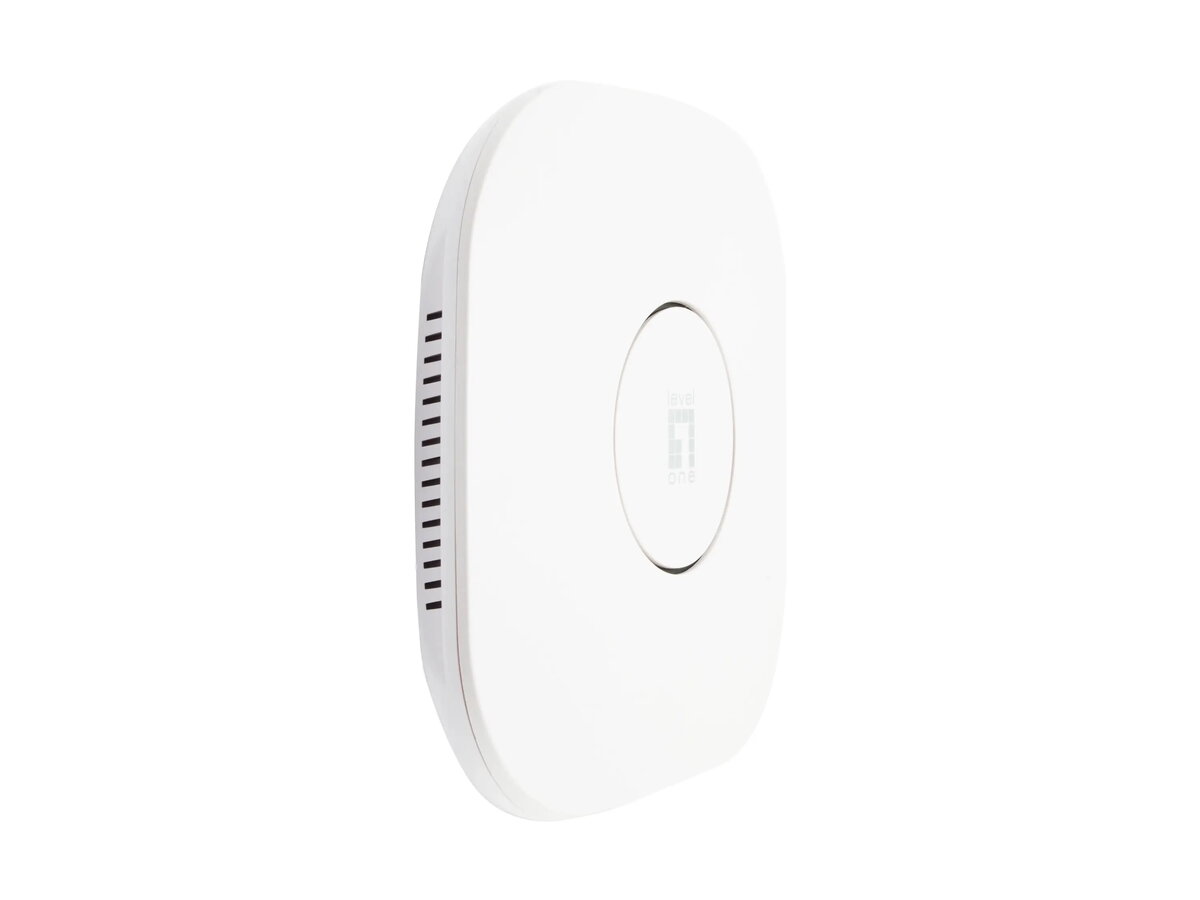

LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point Photo 1

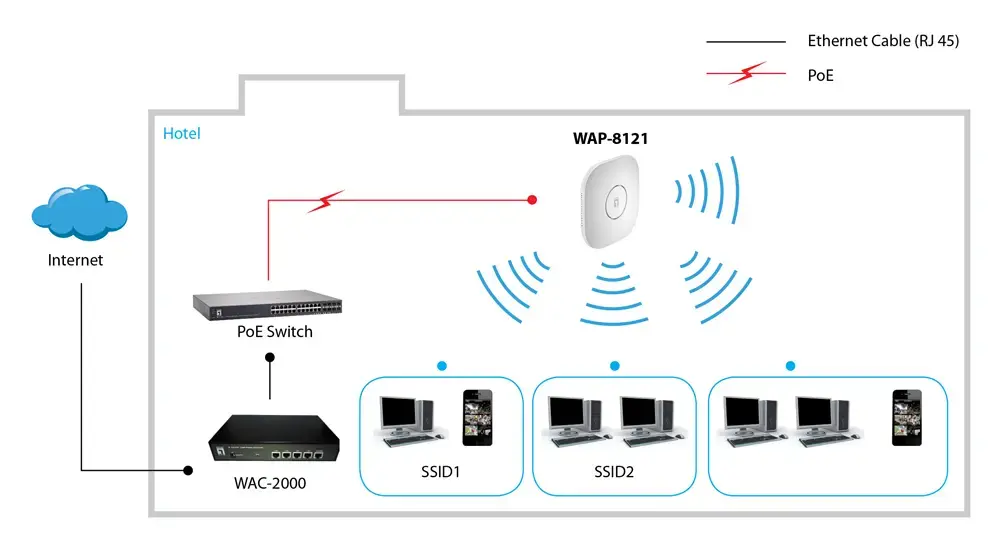

LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point Photo 2

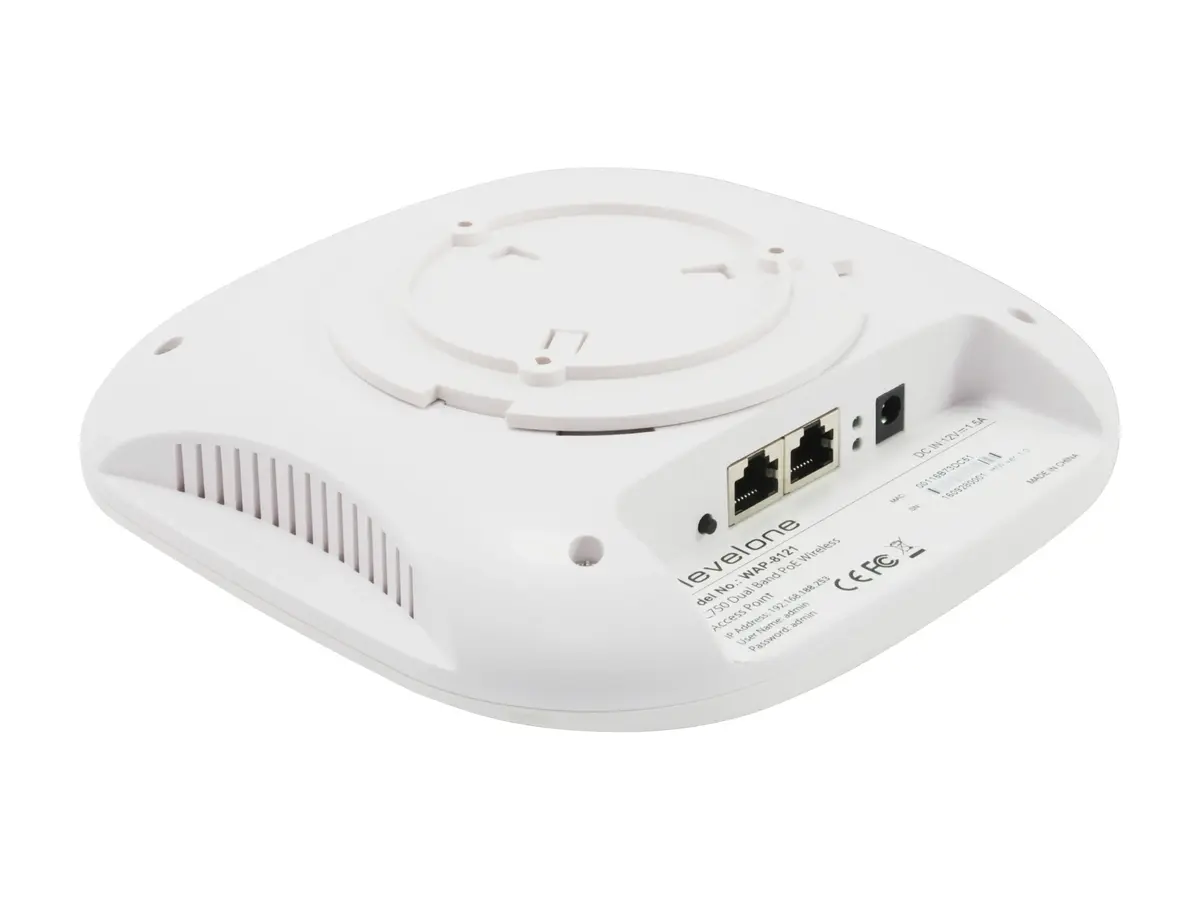

LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne WAP-8121 is a ceiling-mounted AC750 dual-band wireless access point supporting 2.4 GHz and 5 GHz frequencies with a maximum data rate of 433 Mbit/s. It features Power over Ethernet (PoE) for flexible installation, Gigabit Ethernet ports, and advanced security protocols including WPA2-AES and WPA2-PSK. Designed for controller-managed enterprise networks, it ensures reliable connectivity and high-speed data transmission.

Available for order: 112 pcs.

Warranty: 2 Years

SKU: 12411052

Manufacturer: OEM

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.39 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 42.66 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 3.56 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne WAP-8121 is a professional-grade AC750 dual-band wireless access point designed for ceiling mounting. It operates on both 2.4 GHz and 5 GHz frequencies, delivering a combined throughput of up to 750 Mbps to ensure high-speed connectivity for modern enterprise environments. This device is controller-managed, allowing for centralized network administration, load balancing, and dynamic channel selection to minimize interference.

Advantages

This access point offers significant flexibility through its support for multiple operation modes and up to eight SSIDs, which allows administrators to segment network traffic effectively for improved security and performance. The inclusion of Power over Ethernet (PoE) technology simplifies the installation process by eliminating the need for separate electrical wiring near the mounting location. Furthermore, its low-profile, stylish design makes it an unobtrusive addition to any office or commercial ceiling.

Suitable for

Enterprise office environments requiring reliable wireless coverage
Public spaces needing segmented guest and private network access
Businesses looking to upgrade to 802.11ac wireless standards
Areas where centralized network management is required

This device may not be suitable for large-scale outdoor deployments or environments requiring extreme long-range point-to-point bridging, as it is specifically engineered for indoor ceiling-mounted applications. Additionally, it may not be the optimal choice for residential users who do not require advanced controller-managed features or enterprise-level security configurations.

Key specifications

Dual-band support: 2.4 GHz and 5 GHz
Maximum data transfer rate: 433 Mbit/s
Networking standards: IEEE 802.11a/b/g/n/ac
Security protocols: WEP, WPA, WPA2-AES, WPA2-PSK, WPA2-TKIP
Power over Ethernet (PoE) support
Three integrated antennas
Two Gigabit Ethernet LAN ports

To use the LevelOne WAP-8121, mount the device securely to the ceiling using the provided hardware. Connect the unit to a PoE-enabled switch using a standard Ethernet cable to provide both data connectivity and power. Once powered, access the device's management interface via a web browser or a centralized controller to configure your wireless settings, SSIDs, and security protocols according to your network requirements.

What to consider before purchase

Ensure your existing network infrastructure supports PoE or that you have a PoE injector available
Verify that your network controller is compatible with this specific model for centralized management
Assess the coverage area to determine if multiple access points are needed for full signal strength

For optimal performance, place the access point in a central location away from physical obstructions and metal objects that could interfere with the wireless signal. Regularly update the firmware to ensure the latest security patches and performance improvements are applied.

Specifications

Weight:: 0.326 kg
Antennas quantity:: 3
Ethernet LAN (RJ-45) ports:: 2
Maximum data transfer rate:: 433 Mbit/s
Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, IEEE 802.3, IEEE 802.11n, IEEE 802.11i, IEEE 802.11g, IEEE 802.11e, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11a
Product colour:: White

All features

Management features

Web-based management:: Yes
Switch type:: Managed
Firmware upgradeable:: Yes

Logistics data

Harmonized System (HS) code:: 85176990

Operational conditions

Operating relative humidity (H-H):: -20 - 50
Storage temperature (T-T):: 5 - 90
Operating temperature (T-T):: -40 - 70
Storage relative humidity (H-H):: 10 - 90

Certificates

Certification:: CE/FCC

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 15 W
Output voltage:: 12
Power over Ethernet (PoE):: Yes
Output current:: 1.5 A

Features

Maximum data transfer rate:: 433 Mbit/s
Modulation:: DSSS, QPSK, OFDM, DQPSK, DBPSK, CCK, BPSK, 64-QAM, 16-QAM
Receiver sensitivity:: 2.4GHz: 802.11n (20MHZ): -70 dBm 802.11n (40MHZ): -68 dBm 802.11g: -72 dBm 802.11b: -95 dBm 5GHz: 802.11ac (80MHZ): -62 dBm 802.11ac (40MHZ): -65 dBm 802.11ac (20MHZ): -68 dBm 802.11n (40MHZ): -68 dBm 802.11n (20MHZ): -70 dBm 802.11a: -72 dBm
Frequency band:: 2.4 - 5.825
Number of users:: 80 user(s)
Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, IEEE 802.3, IEEE 802.11n, IEEE 802.11i, IEEE 802.11g, IEEE 802.11e, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11a
Channels quantity:: 36 channels
Flow control support:: Yes
Quality of Service (QoS) support:: Yes
Ethernet LAN data rates:: 10, 1000, 100
Automatic channel selection:: Yes
2.4 GHz:: Yes
5 GHz:: Yes
Wi-Fi Multimedia (WMM)/(WME):: Yes

Antenna

Antenna gain level (max):: 15 dBi
Antennas quantity:: 3
Antenna features:: Integrated antenna
Antenna direction type:: Omni-directional

Weight & dimensions

Weight:: 0.326 kg
Height:: 189 mm
Width:: 189 mm
Depth:: 38.5 mm

Packaging data

Package weight:: 680 g
Package depth:: 62 mm
Package height:: 317 mm
Package width:: 214 mm

Ports & interfaces

WAN connection:: Wi-Fi, Ethernet (RJ-45)
USB 2.0 ports quantity:: 0
Ethernet LAN (RJ-45) ports:: 2
DC-in jack:: Yes

Security

Security algorithms:: WPA2-TKIP, WPA2-PSK, WPA2-AES, WPA2, WPA, 128-bit WEP, 64-bit WEP
Number of SSID supported:: 8
Service Set Identifier (SSID) features:: SSID broadcast on/off

Packaging content

Cables included:: LAN (RJ-45)
Quick start guide:: Yes

Design

Internal:: No
LED indicators:: WLAN, Power
Product colour:: White
Reset button:: Yes
Placement:: Wall, Ceiling

Hide Show all

Instructions

mmo_35757994_1489672655_2346_30724.pdf

oem-WAP-8121-12411052.pdf

Description

Instructions

mmo_35757994_1489672655_2346_30724.pdf

oem-WAP-8121-12411052.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point cost, and is it available for purchase?

The price is 127.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 112 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 01.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment. All transactions are 100% secure and encrypted.

Can LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point online, and the application process is as simple as possible:

Select the product on the website and add it to your cart;
When placing your order, choose the payment method “Installments”;
Fill in the required details for the lending partner;
Receive a decision within a few minutes.

For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All OEM products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized OEM service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: weight, antennas quantity, ethernet lan (rj-45) ports, maximum data transfer rate, networking standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for LevelOne WAP-8121 AC750 Dual Band PoE Wireless Access Point?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
