LevelOne WAP-8131 AX1800 Wi-Fi 6 Access Point

Name: LevelOne WAP-8131 AX1800 Dual Band WAP-8131
Brand: OEM
SKU: 12411056
Price: 231.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

LevelOne WAP-8131 AX1800 Dual Band Wi-Fi 6 PoE Wireless Access Point

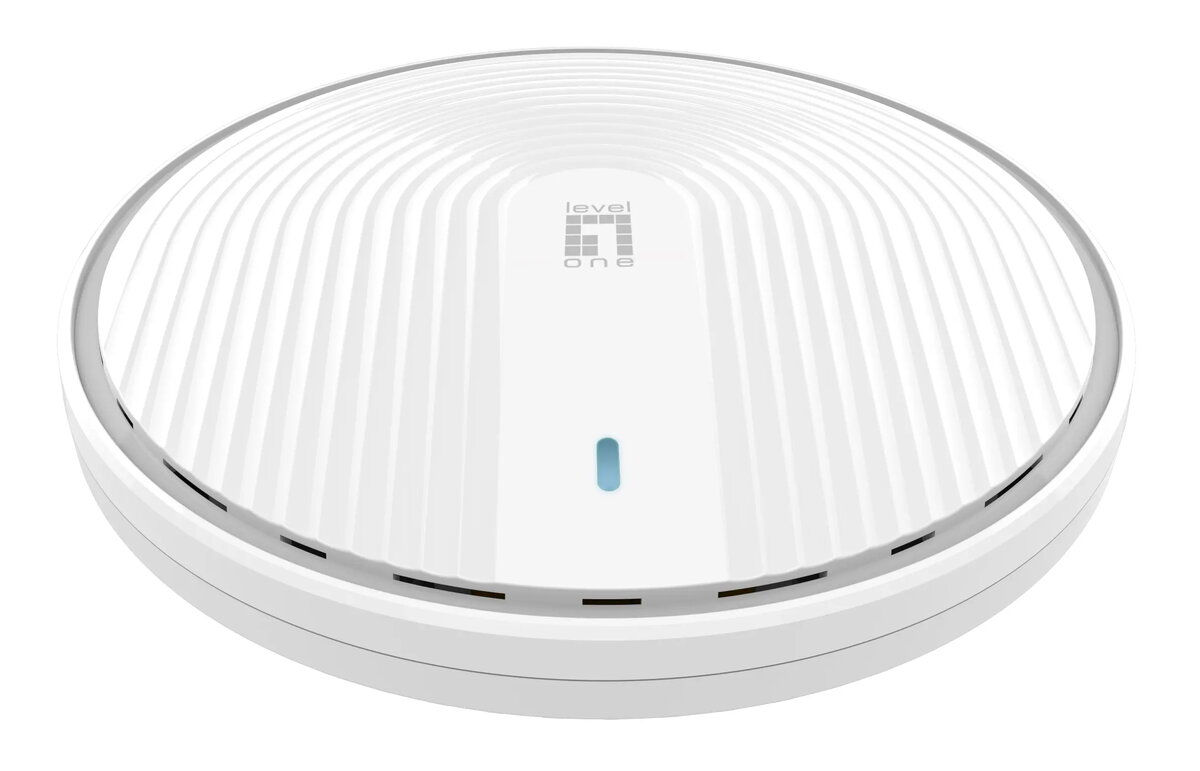

LevelOne WAP-8131 AX1800 Wi-Fi 6 Access Point Photo 1

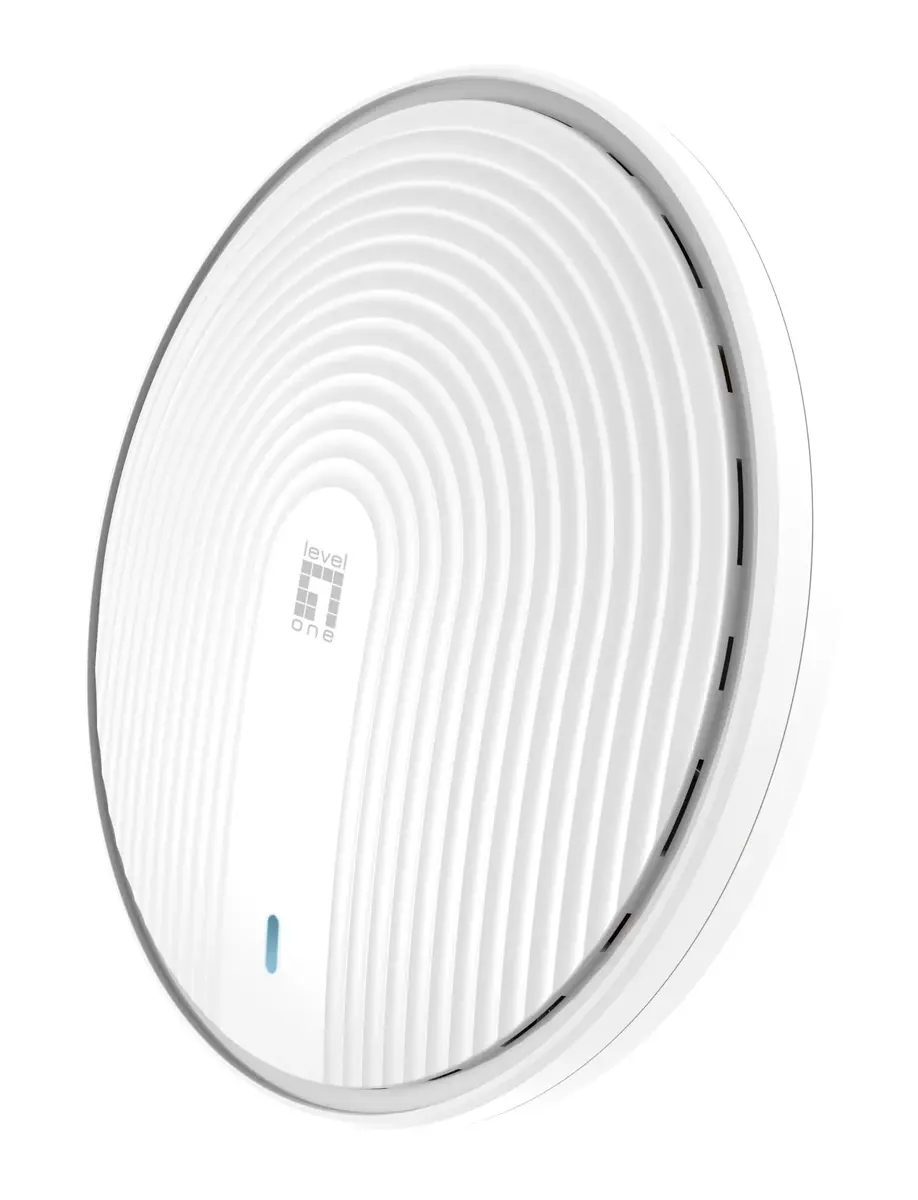

LevelOne WAP-8131 AX1800 Wi-Fi 6 Access Point Photo 2

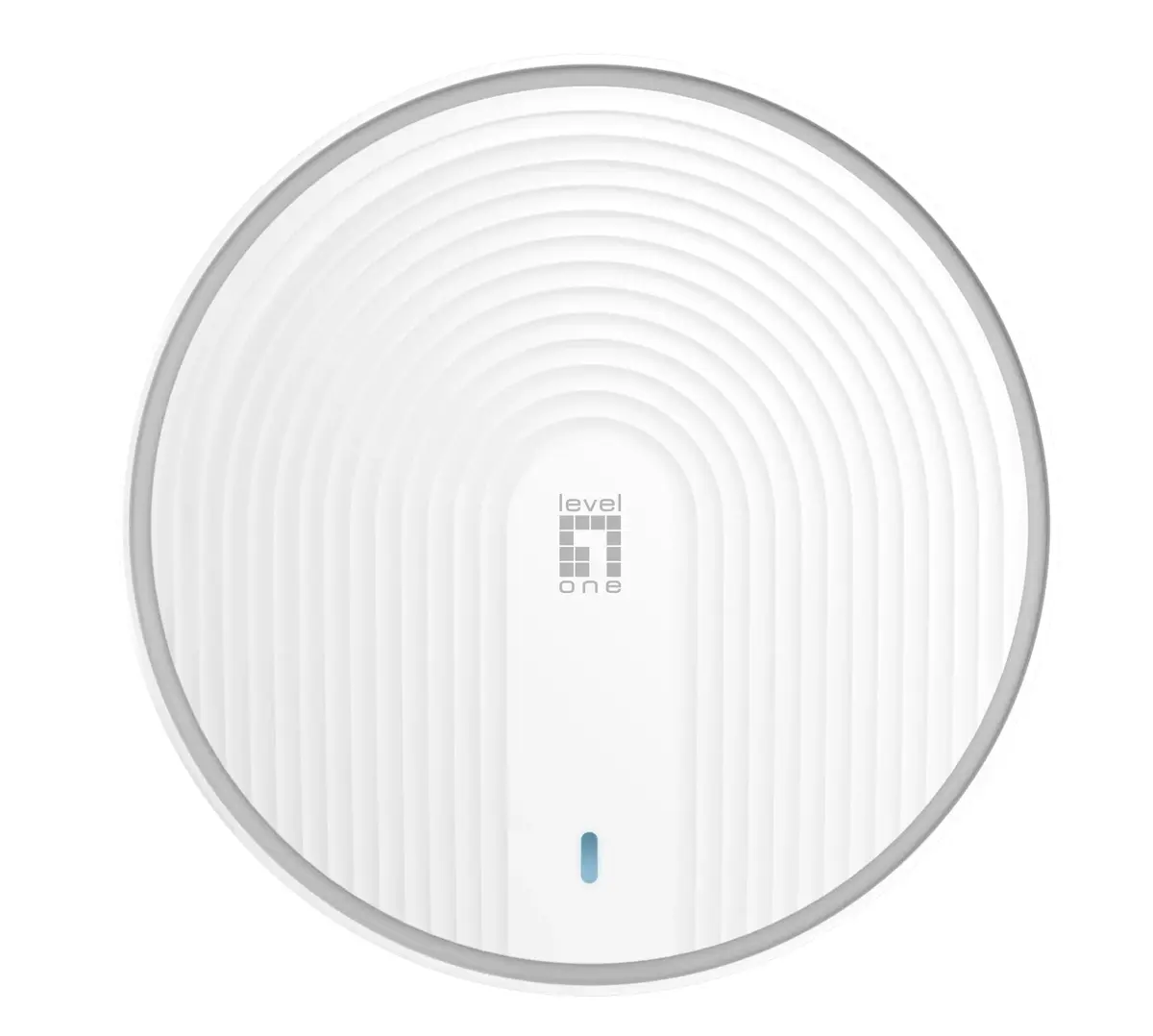

LevelOne WAP-8131 AX1800 Wi-Fi 6 Access Point Photo 3

LevelOne WAP-8131 AX1800 Wi-Fi 6 Access Point Photo 4

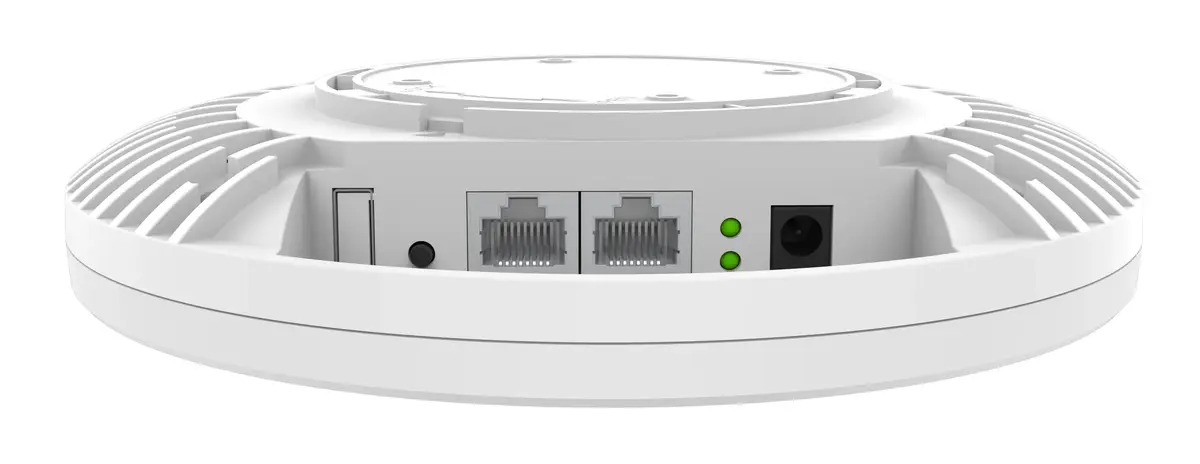

LevelOne WAP-8131 AX1800 Wi-Fi 6 Access Point Photo 5

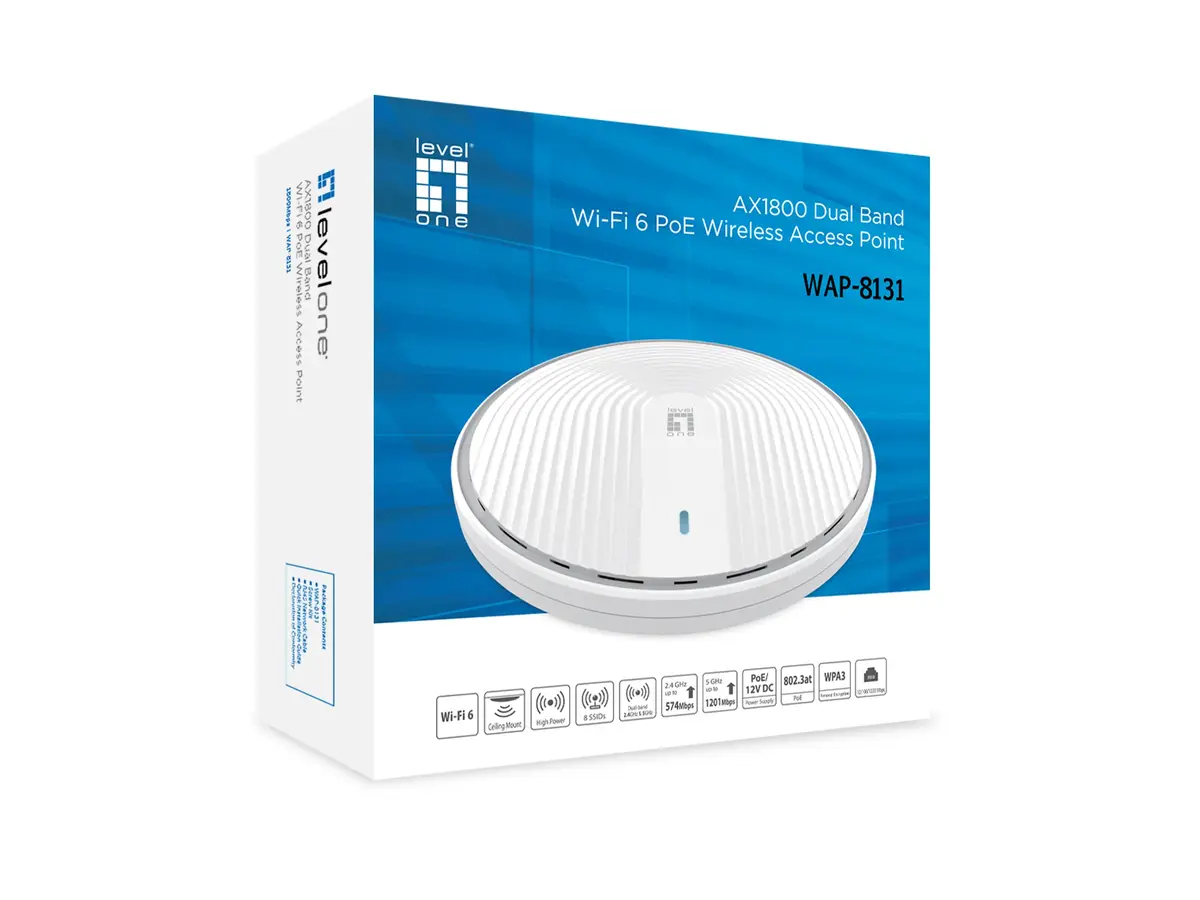

LevelOne WAP-8131 AX1800 Wi-Fi 6 Access Point Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne WAP-8131 is an AX1800 dual-band Wi-Fi 6 wireless access point designed for high-speed connectivity. It supports data transfer rates up to 1800 Mbit/s across 2.4 GHz and 5 GHz bands. Featuring Power over Ethernet (PoE) support, it simplifies installation. Security is ensured with WPA3, WPA2, and AES encryption. Equipped with 4 antennas and 2 Ethernet LAN ports, it is ideal for reliable professional networking environments.

Available for order: 40 pcs.

Warranty: 2 Years

SKU: 12411056

Manufacturer: OEM

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.39 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 77.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 6.43 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne WAP-8131 is an AX1800 dual-band Wi-Fi 6 PoE wireless access point designed to provide high-speed, reliable network connectivity in professional environments. By utilizing 802.11ax Wave 2 technology with MU-MIMO and OFDMA support, this device efficiently manages multiple concurrent connections, ensuring stable performance for high-bandwidth tasks. It operates on both 2.4 GHz and 5 GHz frequencies, delivering a combined data transfer rate of up to 1800 Mbit/s.

Advantages

This access point offers significant performance improvements through Wi-Fi 6 technology, which enhances capacity and efficiency in crowded network environments. The inclusion of Power over Ethernet support simplifies the deployment process by allowing power and data to be delivered through a single cable, reducing the need for additional power infrastructure. With support for up to 8 SSIDs, network administrators can easily segment traffic for better security and management. Furthermore, the device features advanced WPA3 encryption to ensure robust protection for wireless communications.

Suitable for

Corporate office environments requiring high-density Wi-Fi coverage
Demanding professional installations where multiple users access high-bandwidth applications simultaneously
Network segmentation for guest and internal traffic
Upgrading existing infrastructure to support modern Wi-Fi 6 standards

This device may not be suitable for large-scale outdoor deployments or environments requiring specialized long-range directional coverage, as it is primarily designed for indoor use. It may also be overkill for basic home networks that do not require advanced management features like multiple SSIDs or PoE integration.

Key specifications

Wireless speed: Up to 1800 Mbit/s (574 Mbit/s at 2.4 GHz and 1201 Mbit/s at 5 GHz)
Wireless standards: IEEE 802.11a/b/g/n/ac/ax
Antennas: 4 internal antennas with 2x2 MIMO support
Ports: 2 Gigabit Ethernet LAN ports
Security: WPA3, WPA2, WPA, and AES encryption
Power: Power over Ethernet (IEEE 802.3at) or 12V DC input

To use the LevelOne WAP-8131, connect the device to your network switch using a Cat5e or higher Ethernet cable. If your switch supports PoE, the device will power on automatically. Access the web-based management interface through a browser to configure your wireless settings, including SSID names, security protocols, and operational modes. Ensure the device is mounted in a central location to maximize signal distribution throughout the intended area.

What to consider before purchase

Verify that your existing network switch supports PoE (IEEE 802.3at) or ensure a 12V DC power source is available.
Assess the number of concurrent users to determine if the AX1800 capacity meets your specific requirements.
Check if your current network infrastructure supports Gigabit speeds to fully utilize the access point's potential.

For optimal performance, place the access point in an open area away from physical obstructions and metal objects that could interfere with signal propagation. Regularly update the firmware to ensure the latest security patches and performance improvements are applied.

Specifications

Antennas quantity:: 4
Ethernet LAN (RJ-45) ports:: 2
Maximum data transfer rate:: 1800 Mbit/s
Weight:: 0.4185 kg
Networking standards:: IEEE 802.3, IEEE 802.3u, IEEE 802.3at, IEEE 802.3ab, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a
Product colour:: White

All features

Features

Maximum data transfer rate:: 1800 Mbit/s
Spread spectrum method:: OFDMA
Frequency band:: 2.412 - 2.484, 5.18G -5.825
Networking standards:: IEEE 802.3, IEEE 802.3u, IEEE 802.3at, IEEE 802.3ab, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a
Channels quantity:: 165 channels
Operating modes:: Gateway, Repeater, AP
2.4 GHz:: Yes
5 GHz:: Yes
MIMO:: Yes
MIMO type:: Multi User MIMO
Maximum data transfer rate (2.4 GHz):: 574 Mbit/s
Maximum data transfer rate (5 GHz):: 1201 Mbit/s
6 GHz:: No

Sustainability

Sustainability compliance:: Yes

Packaging content

Cables included:: LAN (RJ-45)
Quick start guide:: Yes

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: 0 - 70
Operating temperature (T-T):: 0 - 55
Storage relative humidity (H-H):: 5 - 90

Performance

Internal memory:: 512 MB
Flash memory:: 128 MB
Chipset:: Qualcomm IPQ6000

Antenna

Antenna type:: Internal
Antenna gain level (max):: 4 dBi
Antennas quantity:: 4

Power

Power over Ethernet (PoE):: Yes
Power consumption (max):: 14 W

Weight & dimensions

Weight:: 0.4185 kg
Height:: 42.5 mm
Width:: 186 mm
Depth:: 186 mm

Technical details

Master (outer) cases per pallet (air):: 10 pc(s)
Pallet net length:: 800 mm
Pallet net width:: 1200 mm
Pallet net height:: 1644 mm

Ports & interfaces

USB 2.0 ports quantity:: 0
Ethernet LAN (RJ-45) ports:: 2
DC-in jack:: Yes

Security

Security algorithms:: WPA2, WPA, AES, WPA3
Number of SSID supported:: 8
Service Set Identifier (SSID) features:: Multiple SSIDs

Logistics data

Country of origin:: China
Master (outer) case height:: 500 mm
Master (outer) case width:: 410 mm
Master (outer) case gross weight:: 16000 g
Master (outer) case length:: 520 mm
Products per master (outer) case:: 20 pc(s)

Management features

Web-based management:: Yes

Packaging data

Package weight:: 750 g
Package depth:: 235 mm
Package height:: 76 mm
Package width:: 243 mm

Certificates

Compliance certificates:: RoHS, CE

Design

LED indicators:: Status
Product colour:: White
Placement:: Wall, Ceiling

Hide Show all
