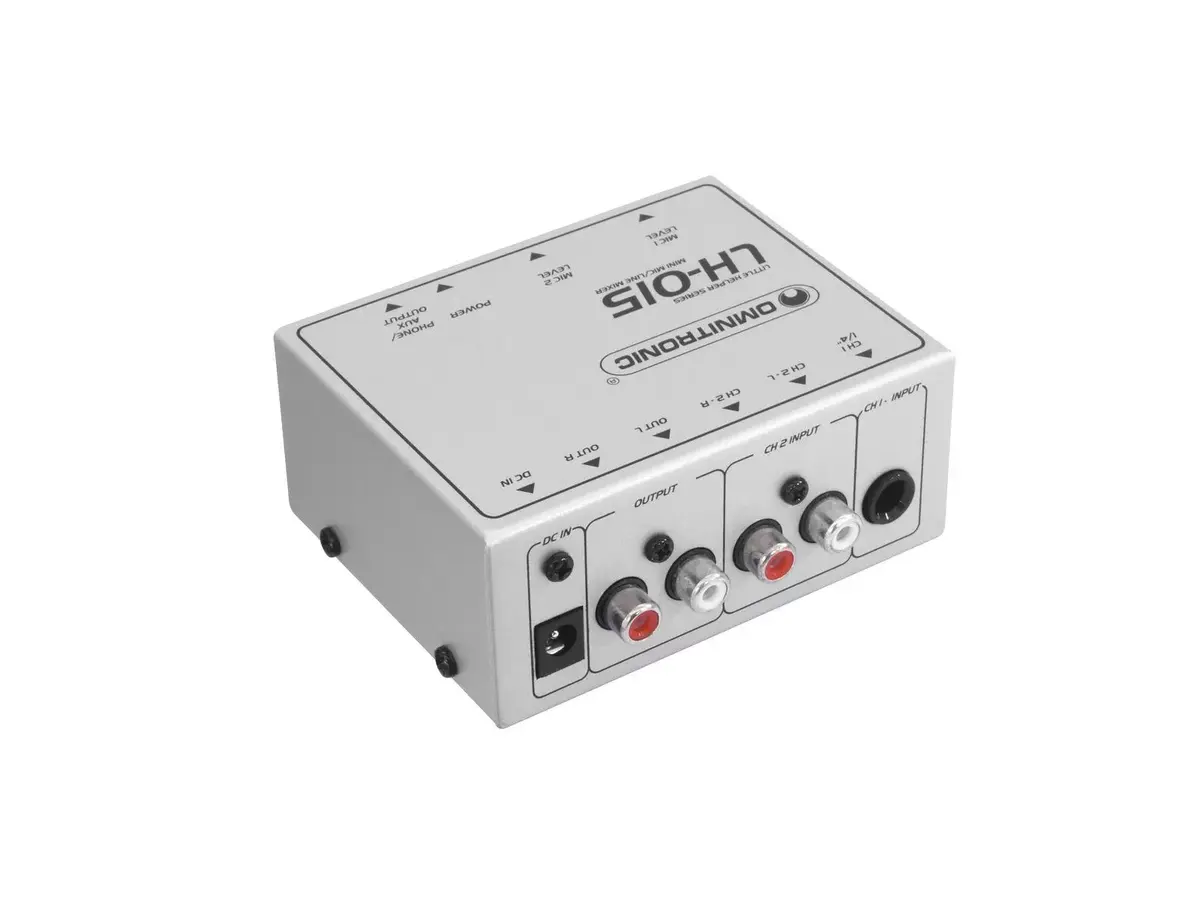

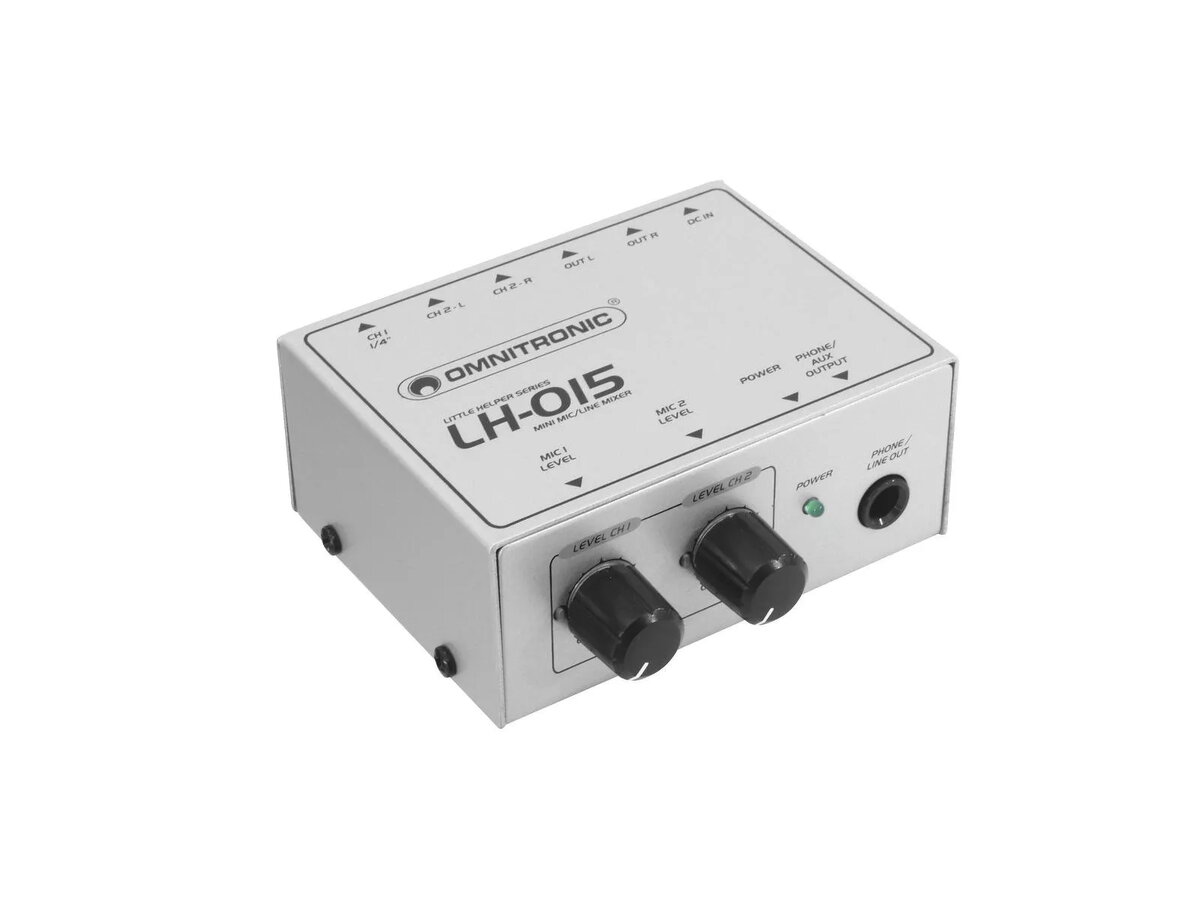

Mixer Omnitronic LH-015 2 channels 20 - 20000 Hz Grey

The Omnitronic LH-015 2-channel mixer is a compact audio mixer designed for straightforward signal routing and basic level control. Covering a frequency range of 20–20000 Hz, the unit supports full-range audio reproduction. Its compact housing (95 mm × 73 mm × 40 mm) makes the mixer suitable for small desktop setups, portable rigs, or integration into limited-space installations where simple two-channel mixing is required.

Advantages

The LH-015 offers a high line signal-to-noise ratio of 100 dB, which helps preserve audio clarity and reduce background noise during signal processing. With dedicated input impedance values for line and microphone inputs, the mixer provides consistent electrical matching for common consumer and semi-professional sources. The small footprint and straightforward control layout allow for quick setup and reliable operation in live or studio-adjacent applications.

Suitable for

• Mixing two line-level sources such as media players or instruments
• Simple live sound or DJ setups that require compact signal combining
• Portable recording rigs or desktop workstations with limited space
• Broadcast or presentation desks where a small, reliable mixer is needed

Key specifications

• Channels: 2
• Frequency response: 20–20,000 Hz
• Line signal-to-noise ratio: 100 dB
• Line input impedance: 20,000 Ω
• Microphone input impedance: 10,000 Ω
• Dimensions (W × D × H): 95 mm × 73 mm × 40 mm

How to use

Connect your line-level and/or microphone sources to the corresponding inputs and route the outputs to your amplifier, recorder, or monitoring system. Adjust individual channel levels to achieve the desired balance; use the main output to feed the combined signal downstream. Ensure proper gain staging by starting with lower levels and increasing gradually to avoid clipping. Place the unit on a stable surface or mount it where connections are easily accessible.

Usage recommendations

For optimal audio quality, use quality shielded cables and maintain sensible gain staging: set input levels so meters or indicators are in the nominal range without reaching clipping. Keep the mixer away from strong electromagnetic sources to minimize interference and periodically check connectors for secure contacts.
