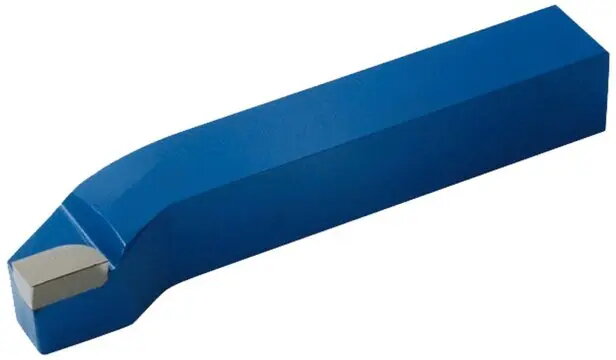

Pafana NNBF 1212 S30 NOZ TOK.ISO 6 L — cutting tool insert holder, ISO6L1212P30

Pafana NNBF 1212 S30 NOZ TOK.ISO 6 L — cutting tool insert holder, ISO6L1212P30 is a compact lathe tool holder intended for metal turning operations that accept ISO 6 L indexable inserts. It secures inserts in a repeatable position, provides stable clamping and is designed for use in standard external turning, profiling and finishing applications in workshops and production environments. The holder is compatible with tooling setups that require an ISO 6 L style pocket and offers a straightforward interface between the machine turret and the indexable cutting insert.

Advantages

The design provides accurate and consistent insert location to maintain cutting geometry and repeatability across multiple index changes. Robust clamping ensures minimal vibration and improved surface finish during external turning and finishing passes. The holder’s compact profile allows access to confined areas on workpieces while preserving rigidity. Material selection and manufacturing tolerances are aimed at reliable performance in routine workshop use and light-to-medium production cycles.

Suitable for

• External turning operations on lathes
• Profiling and contouring of metal parts
• Finishing passes to achieve required surface quality
• Workshop and small series production turning tasks

Key specifications

• Insert style compatibility: ISO 6 L pocket
• Shank/profile size: compact 1212 form factor for turret mounting
• Clamping method: mechanical clamp for indexable inserts
• Orientation: left-hand (L) turning configuration
• Application: external turning, profiling and finishing

How to use

Mount the holder securely in the turret or tool post following the machine manufacturer’s instructions and ensure correct seating and orientation for left-hand turning. Insert the compatible ISO 6 L indexable insert into the pocket, tighten the clamp to the recommended torque and verify insert position and cutting edge alignment before cutting. Perform an initial test cut at low cutting parameters to confirm tool setup, then adjust feed and speed to the material and insert grade being used. Regularly inspect clamp tightness and insert condition to maintain consistent performance.

Usage recommendations

Use appropriate cutting parameters for the workpiece material and the chosen insert grade, maintain correct clamp torque, and replace inserts showing wear or damage to preserve dimensional accuracy and surface finish.
