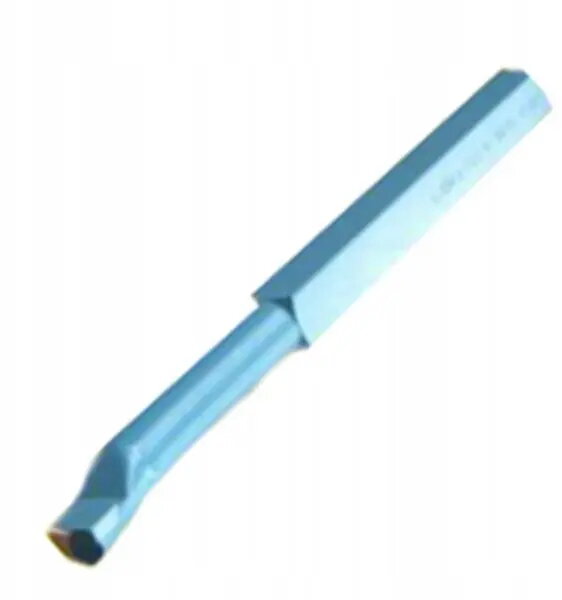

Pafana NNWA 1212 S30 NOZ TOK.ISO 8 R — lathe turning tool holder ISO 8

Pafana NNWA 1212 S30 NOZ TOK.ISO 8 R is a lathe turning tool holder designed for use with ISO-style indexable inserts. The holder follows the NNWA 1212 S30 form factor and ISO 8 interface, delivering a rigid clamping solution for external turning operations on CNC and manual lathes. It is intended for standard metalcutting tasks where a secure mount and correct insert seating are required for repeatable turning accuracy.

Advantages

The tool holder offers firm clamping and a compact body that fits the NNWA 1212 S30 footprint and ISO 8 insert geometry. Its design reduces vibration at the cutting edge and supports consistent insert positioning, which helps maintain machining tolerances. The product is compatible with common ISO 8 inserts, simplifying tool change and inventory management for turning shops.

Suitable for

• External turning on CNC lathes
• Manual lathe external facing and profiling
• Medium to light duty metal removal on steel, cast iron, and non-ferrous alloys
• Operations requiring ISO-style indexable inserts with ISO 8 interface

Key specifications

• Tool holder form factor: NNWA 1212 S30 compatible dimensions
• Insert interface: ISO 8 style indexable inserts
• Orientation: right-hand turning (R)
• Application area: external turning
• Mounting: rigid clamping suitable for CNC and manual lathes

How to use

Install the holder into the lathe tool post or turret according to the machine manufacturer’s mounting procedure for NNWA 1212 S30 style holders. Fit a matched ISO 8 indexable insert into the pocket and secure it following the insert manufacturer’s torque recommendations to ensure correct seating and clamp force. Verify insert projection and approach angle before cutting, then perform a test cut to confirm alignment and clearance. Adjust cutting parameters to match material, insert grade, and machine capability.

Usage recommendations

Use inserts rated for the workpiece material and select appropriate cutting speeds and feeds. Regularly check clamping screws and insert seating for wear or loosening. Replace inserts when wear affects surface finish or dimensional accuracy to maintain consistent turning results.
