Fibre optic cable PATCHBOX C60SMAOS21231Y 1.8 m OFC

PATCHBOX® Plus+ Long Range cable system delivers organized fibre management for network cabinets up to 46 RU using extractable fibre optic cables with a fixed length of 2.5 m. Built with RoHS-conform Corning® fibres, this PATCHBOX solution reduces installation time and ongoing maintenance by keeping cables available at the precise length and enabling fast cassette replacement. The product includes a steel frame for up to 24 PATCHBOX® cassettes and a PATCHBOX® Patchcatch (0RU cable management) for integrated routing and tidy cabinet packing.

Advantages

The PATCHBOX® system prevents cable clutter by providing extractable, pre‑measured fibre optic cables with a cable stopper for exact length adjustment and individual cassette labelling. Installation and patching of up to 24 fibres is substantially faster than conventional methods, maintenance operations and switch replacements are accelerated, and higher packing density is achieved in the cabinet. All optic cables are RoHS compliant and use Corning® fibres for consistent transmission performance.

Suitable for

• Data centres and server rooms requiring neat fibre management
• Network cabinets up to 46 RU where quick maintenance and high density are needed
• Environments using LC and SC terminated single‑mode fibres for duplex connections

Key specifications

• Product: PATCHBOX® Plus+ Long Range system
• Included cable type: single‑mode OFC with Corning® fibres
• Cassette capacity: up to 24 PATCHBOX® cassettes in supplied steel frame
• Cable length (system spec): 2.5 m extractable cables

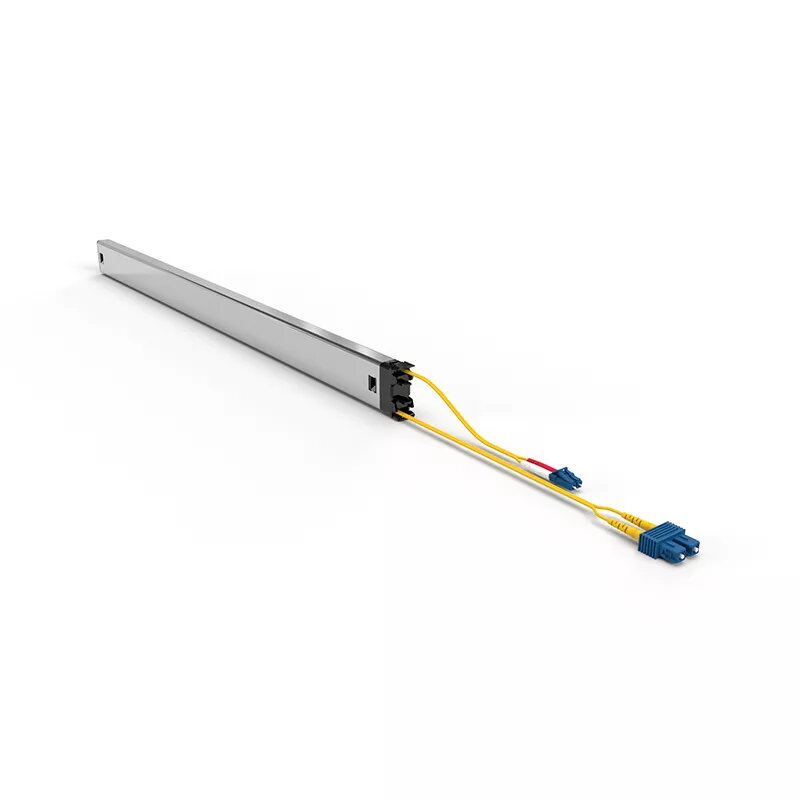

• Specific item: PATCHBOX C60SMAOS21231Y — 1.8 m OFC cable with LC and SC connectors
• Core diameter: 9 µm (single‑mode)
• Communication: full duplex
• Compliance: RoHS conform

How to use

Install the steel frame into the designated cabinet space and mount the PATCHBOX® cassettes. Route the extractable fibre cables through the PATCHBOX® Patchcatch for neat management. Pull out each fibre to the required length and secure it with the built‑in cable stopper; label each cassette using the provided labelling option. Connect LC and SC terminations to the corresponding switch and equipment ports to establish full duplex links. For cassette replacement, unlock and remove the cassette and insert a replacement without extensive re‑routing.

Usage recommendations

Use the PATCHBOX® system in cabinets where predictable, repeatable fibre lengths and fast moves/adds/changes are required. Verify connector cleanliness before mating and ensure cable stoppers are set to avoid excess bend radius; follow data centre fibre handling best practices.
