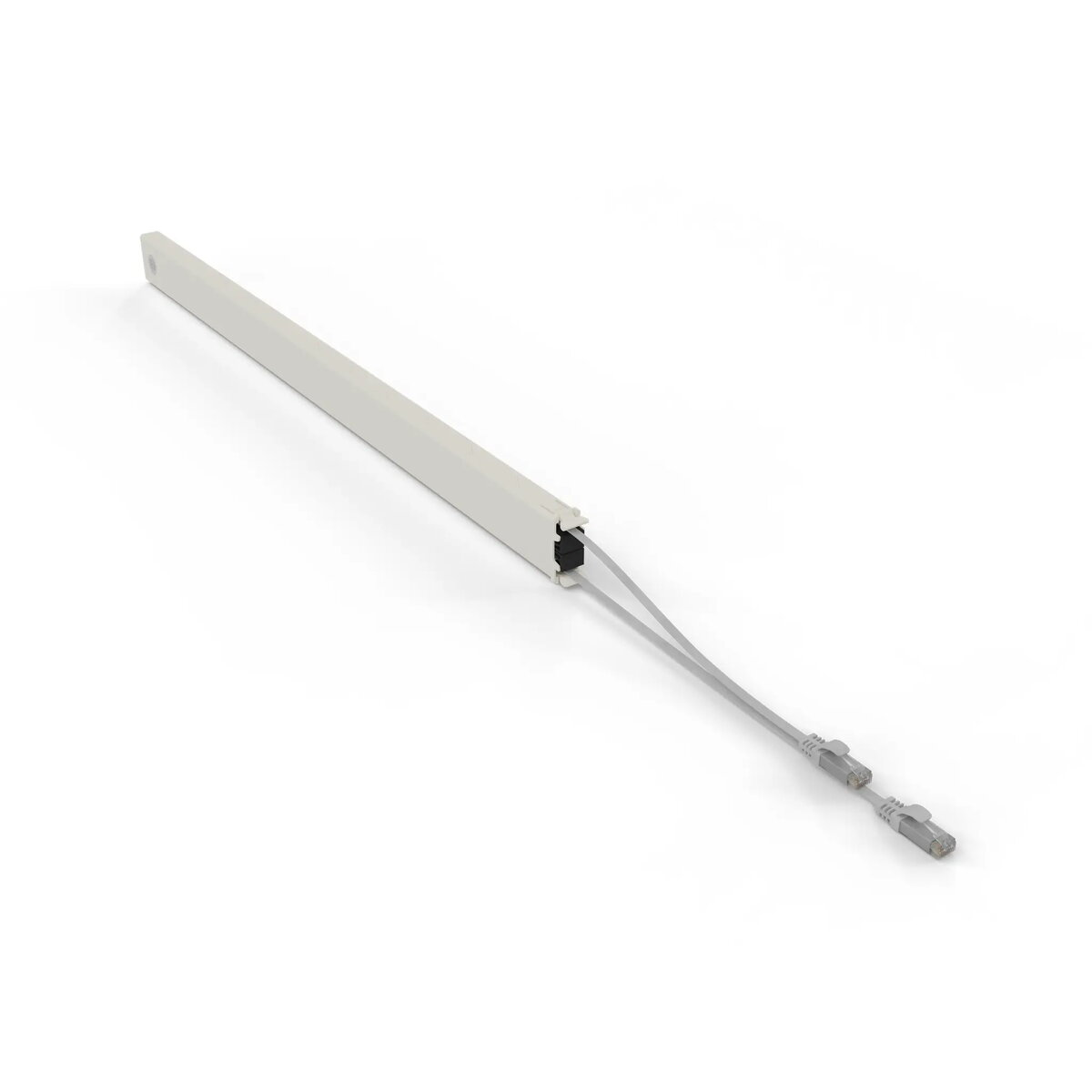

Patchbox .one Cassette CONE46UTPSL 46RU UTP Grey Cat6a RJ-45 2.5 m Cable 10000 Mbit/s

Data transfer rate: Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.

10000 Mbit/s

Cables included:

LAN (RJ-45)

Connector 1: This is the first connector in the device.

RJ-45

Connector 2: This is the second connector in the device.

RJ-45

Jacket material:

Polyvinyl chloride (PVC)

Cable standard: The category of the cable, which is determined by performance characteristics and test requirements.

Cat6a

Packaging content:

1 x patchbox.one / Cassette / 46RU / UTP / Grey

Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male

Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male

Conductor material:

Copper

Power over Ethernet (PoE) type supported:

PoE++ (4PPoE)

Cable shape:

Flat

Bend radius (min):

12 mm

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

Hungary

Quantity per pack:

1 pc(s)

Packaging data

Package weight: Weight of the packaged product.

310 g

Package height: The distance from the top to the bottom of the packaging.

50 mm

Package depth: The distance from the front to the back of the packaging.

47 mm

Package width: The distance from one side of the packaging to the other.

689 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.22 kg

Depth: The distance from the front to the back of something.

40 mm

Height: The measurement of the product from head to foot or from base to top.

18 mm

Width: The measurement or extent of something from side to side.

600 mm

Operational conditions

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 60

Certificates

Certification:

ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel

Power

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes

Design

Cable length: How long the cable is.

2.5 m

Product colour: The colour e.g. red, blue, green, black, white.

Grey

Network

AWG wire size:

3/0

Cable shielding: The protective layer for the cable, typically made of plastic.

U/UTP (UTP)

Connector contacts plating: What the connector contacts are covered with (layer on top).

Gold

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3bt
