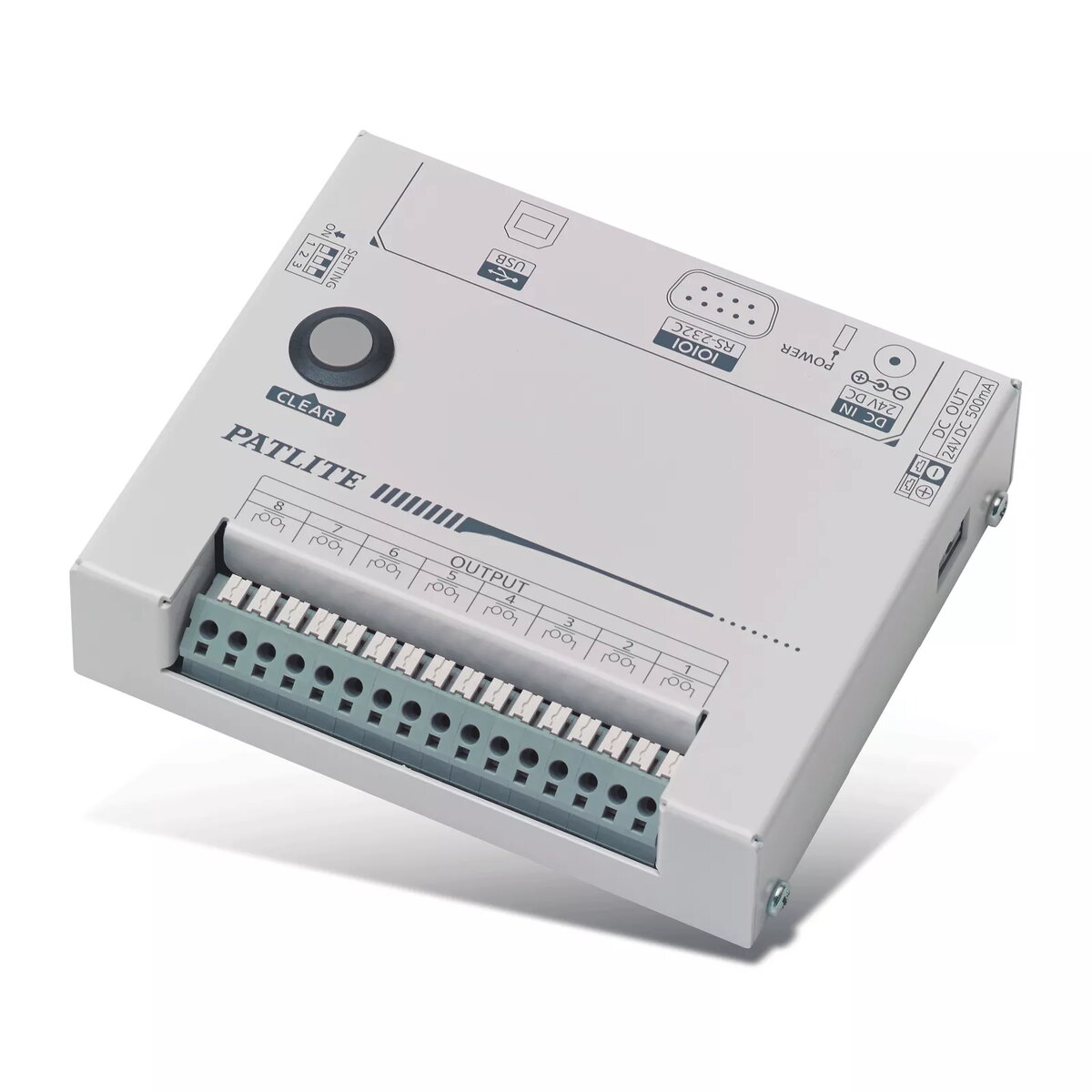

Lighting controller PATLITE PHC-D08N AC 100-240V 50-60Hz

The PATLITE PHC-D08N AC 100-240V 50-60Hz lighting controller provides compact, reliable control for small to medium lighting installations. Designed to operate from a wide AC input range, it supports common mains voltages and frequencies while maintaining stable performance within an ambient temperature range of 0–40°C and relative humidity of 20–85%. Its compact footprint and lightweight construction make it suitable for panel mounting and integration into existing control systems where space is limited.

Advantages

The controller accepts a broad AC input range, enabling use across different regional power systems without additional transformers. Its operating environmental specifications ensure consistent behavior in typical indoor industrial and commercial settings. Compact dimensions and low weight reduce installation space and support easier handling during setup. The unit’s straightforward design simplifies integration with standard lighting circuits and control equipment.

Suitable for

• Control of indicator and signal lighting in production lines and machinery
• Small to medium building lighting control panels
• Retrofit projects where compact controllers are required
• Applications requiring stable operation in typical indoor temperature and humidity ranges

Key specifications

• Rated input voltage: AC 100–240 V
• Rated frequency: 50–60 Hz
• Operating temperature range: 0–40 °C
• Operating relative humidity: 20–85% (non-condensing)
• Dimensions: 100 mm (length) × 117 mm (width)
• Weight: approximately 370 g

How to use

Install the lighting controller in a dry, ventilated enclosure or control panel and secure it according to the panel layout. Connect the AC mains input (100–240 V, 50–60 Hz) to the designated input terminals and wire the controlled lighting circuits to the output terminals following local electrical codes. Ensure the ambient temperature and humidity remain within the specified ranges to maintain reliable operation. After wiring, apply power and verify operation using the intended control signals and loads; adjust wiring as needed for proper function.

Usage recommendations

For longevity and reliable performance, mount the controller away from direct heat sources and moisture. Use proper fusing and circuit protection on the mains input, and verify compatibility of connected lamps and drivers with the controller’s output type. Periodic visual inspection of terminals and enclosure for dust accumulation or loose connections is recommended.
