Alarm Lighting Fixed Green LED PATLITE SF08-M2KTB-G AC 100-240V 8.8W

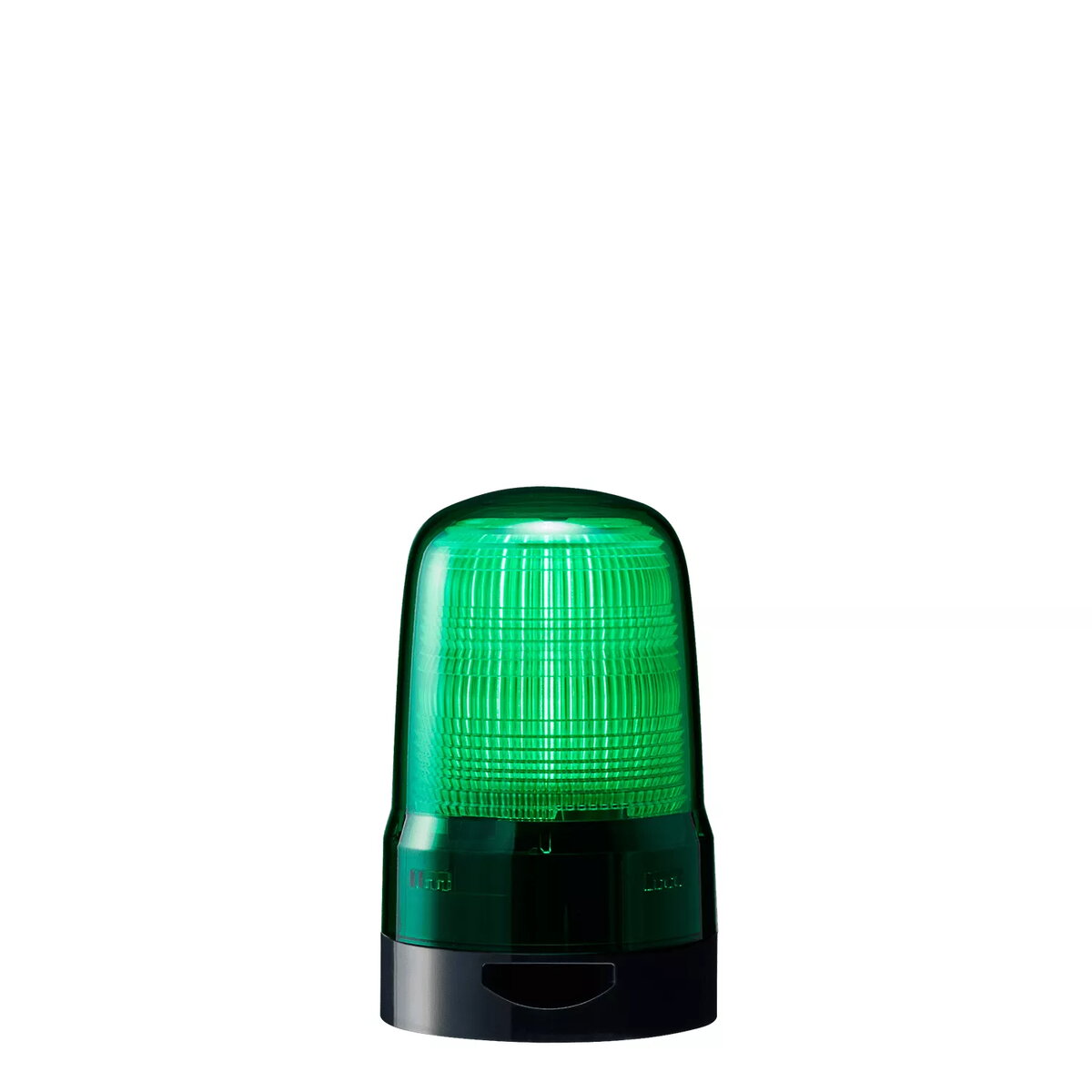

The PATLITE SF08-M2KTB-G is a fixed green LED alarm light for AC 100–240V applications. With 8.8W power consumption, a compact 80 mm width and a weight of 280 g, this maintenance-free unit provides simulated rotation, flashing and pulsing LED animations without a motor. The lamp uses PATLITE's multi-fresnel lens to collect and diffuse light more effectively than conventional lenses, supporting clear visual alerts in industrial and commercial environments.

Advantages

The motorless design requires no mechanical maintenance and produces stable LED animation effects. The multi-fresnel lens improves light diffusion and visibility while keeping the housing thin and rigid. The unit accepts a wide AC input range (100–240V) and consumes 8.8W, offering compatibility with common power systems and low energy use for continuous signaling.

Suitable for

• Machine status indication in production lines
• Visual alerts in warehouses and logistics centers
• Signalization at workstations and assembly cells
• Status indication in commercial equipment and control panels

Key specifications

• Model: PATLITE SF08-M2KTB-G (MPN: SF08-M2KTB-G)
• Color: Fixed green
• Power supply: AC 100–240V
• Power consumption: 8.8 W
• Size (width): 80 mm
• Weight: 280 g
• Light patterns: 22 selectable patterns via rotary switch
• Lens: Multi-fresnel lens for enhanced diffusion
• Motorless, maintenance-free LED animation
• EAN: 4938766022300

How to use

Install the SF08-M2KTB-G on a suitable panel or mounting surface using standard mounting hardware and connect the AC 100–240V supply according to the wiring instructions. Configure the required light pattern by selecting one of the 22 available patterns with the rotary switch and set wiring channels as needed for your signaling scheme. No mechanical adjustments are required for the LED animations.

Usage recommendations

For reliable operation, mount the unit where the lens is visible from the intended observation points and ensure the supply voltage is within the specified 100–240V range; avoid direct exposure to strong mechanical impact and follow local electrical installation standards during wiring and installation.
