Car DVR with Rear View Camera Peiying D180 — Peiying PY-DVR011

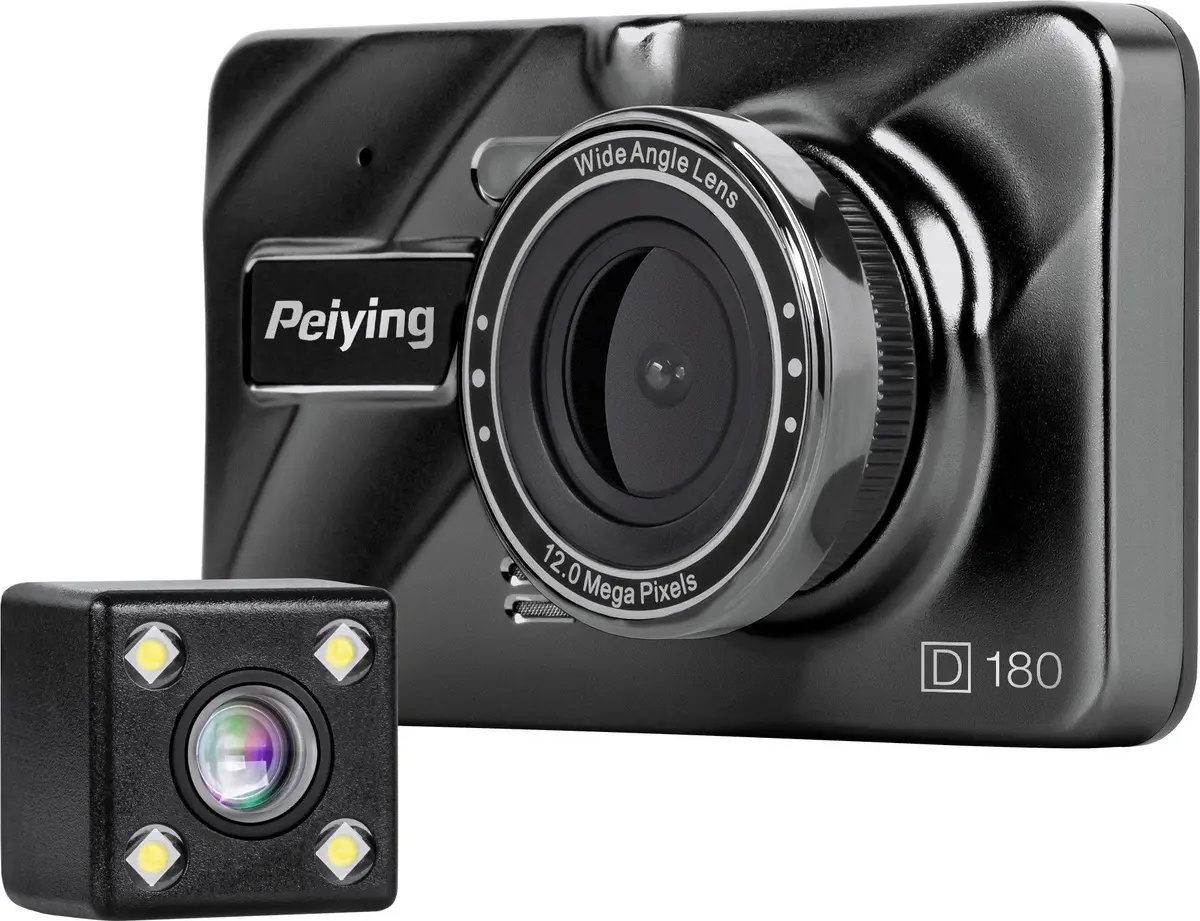

The Peiying D180 car DVR package includes a front dash camera and a separate rear view camera designed to record road incidents, assist parking maneuvers and improve rear visibility. The front camera records in Full HD at up to 30 fps and captures a 130° wide-angle view of the road ahead. The unit features a 4" display for live preview and playback, an integrated microphone and speaker for audio recording and playback, and supports up to 32 GB microSD storage. Built-in safety functions such as a G-sensor, motion detection and parking mode enable the device to act as an evidential black box and to automatically protect or start recordings when an impact is detected.

Advantages

The Peiying D180 provides Full HD front recording with a wide 130° lens to document traffic situations in front of the vehicle. A separate rear camera expands coverage to the vehicle’s rear and functions as a reversing aid with LED assistance for low-light maneuvers. Automatic start on ignition, loop recording and an integrated G-sensor secure important footage in case of collisions, while motion detection and parking mode help capture events when the vehicle is parked. The 4" display and audio support make reviewing recordings straightforward directly on the device.

Suitable for

• Daily commuting and highway driving to record traffic incidents
• Parking surveillance and hit-and-run detection
• Assisted reversing and tight-space maneuvering
• Drivers who need video evidence for insurance and dispute resolution

Key specifications

• Display: 4" (480 × 800 px)
• Front video: Full HD 1080p at 30 fps (also supports 720p and VGA)
• Rear video: VGA resolution
• Photo capability: up to 12 MP (3840 × 3024 px), JPG
• Lens field of view: 130° wide angle (front)
• Image sensor: GC1054
• Recording formats: AVI video files
• Storage: microSD card support up to 32 GB (use class recommended by manufacturer for video)
• Power and battery: 300 mAh Li-ion internal battery, charging 5 V / 1 A
• Connections: mini-USB for data and power
• Built-in microphone and speaker for audio recording and playback
• Device dimensions and weight: 110 × 60 × 34 mm, 110 g
• Functions: loop recording, motion detection, G-sensor, parking mode, photo capture, date & license plate stamp

How to use

Install the front camera on the windshield behind the rear-view mirror and mount the rear camera at the back of the vehicle where it has an unobstructed view. Insert a compatible microSD card (up to 32 GB) before first use and connect the unit to the vehicle power via the provided cable or mini-USB adapter. The recorder starts recording automatically when the ignition is switched on. Use the 4" display to change recording settings, review footage and play back audio. In the event of an impact, the G-sensor will lock the current file to prevent overwriting. To review recordings on a PC, remove the microSD card or connect the device via the mini-USB interface.

Usage recommendations

For reliable continuous recording, use a high-endurance microSD card from a reputable brand and format it in the device before first use. Position the rear camera to avoid obstructions and ensure the reversing LEDs are aligned for clear low-light assistance. Regularly check and secure cable routing to prevent disconnection, and periodically review locked G-sensor files to ensure important incidents are preserved.
