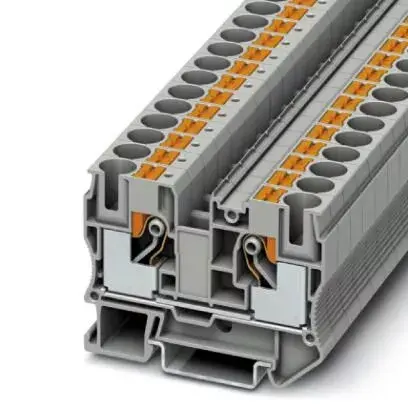

The PHOENIX PT 10 Terminal Block Grey Rated Voltage 1000V is a high-performance feed-through terminal block engineered for secure and reliable electrical wire connections in industrial control panels and wiring systems. Designed for professional electrical installations, this component ensures optimal circuit organization, safe power distribution, and long-lasting durability in demanding operational environments. It features a robust grey housing, a rated voltage of 1000V, and a nominal current of 57A, making it a dependable choice for rigorous power and control applications.
Advantages
This terminal block utilizes an efficient Push-in connection method that allows for easy and tool-free wiring of solid conductors or conductors equipped with ferrules. Its compact physical design combined with a front connection layout facilitates straightforward wiring even in confined spaces within control cabinets. Additionally, the unit incorporates comprehensive testing facilities including a double function shaft and an extra test connection to simplify maintenance and diagnostics. Built to withstand rigorous conditions, it is officially tested for railway applications, ensuring superior reliability and safety standards.
Suitable for
- Industrial control panels and electrical distribution boards
- Railway applications requiring certified vibration and shock resistance
- Wiring systems with conductor cross-sections ranging from 0.5 mm² to 16 mm²
- Professional electrical installations demanding compact and tool-free conductor insertion
This terminal block may not be suitable for applications involving conductors outside the specified cross-section range of 0.5 mm² to 16 mm², or environments requiring connection methods other than Push-in technology. It is designed specifically for professional electrical setups and is generally not intended for casual consumer electronics or low-voltage domestic DIY projects without proper technical enclosures.
Key specifications
- Rated voltage: 1000V
- Nominal current: 57A
- Connection method: Push-in connection
- Number of connections: 2
- Conductor cross-section: 0.5 mm² to 16 mm²
- AWG range: 20 to 6
- Width: 10.2 mm
- Depth: 67.7 mm
- Height: 49.5 mm
- Color: Gray
- Mounting type: NS 35/7,5, NS 35/15
To install the terminal block, securely mount it onto a compatible standard DIN rail such as NS 35/7,5 or NS 35/15 inside an appropriate electrical enclosure. Prepare the wire by stripping it to the recommended length or attaching a ferrule if using a flexible conductor. Insert the solid or ferruled conductor directly into the Push-in connection point until it clicks firmly into place. Verify the secure mechanical hold and electrical continuity before energizing the circuit.
What to consider before purchase
- Verify that the rated voltage of 1000V and nominal current of 57A match your electrical circuit requirements
- Check that your conductor cross-sections fall within the 0.5 mm² to 16 mm² (AWG 20 to 6) range
- Ensure you have compatible DIN rails (NS 35/7,5 or NS 35/15) installed in your control panel
- Confirm that the physical dimensions, particularly the 10.2 mm width, fit within your available cabinet space
Usage recommendations: Always de-energize the electrical system completely before performing any installation, wiring, or maintenance work on the terminal blocks. Ensure that installation is carried out by qualified electrical personnel in accordance with local safety codes and railway or industrial standards. Regularly inspect connections and utilize the integrated test points for diagnostic checks to maintain long-term system reliability.
