AiO.lv Networking Equipment Wireless Products Wireless Access Points PLANET

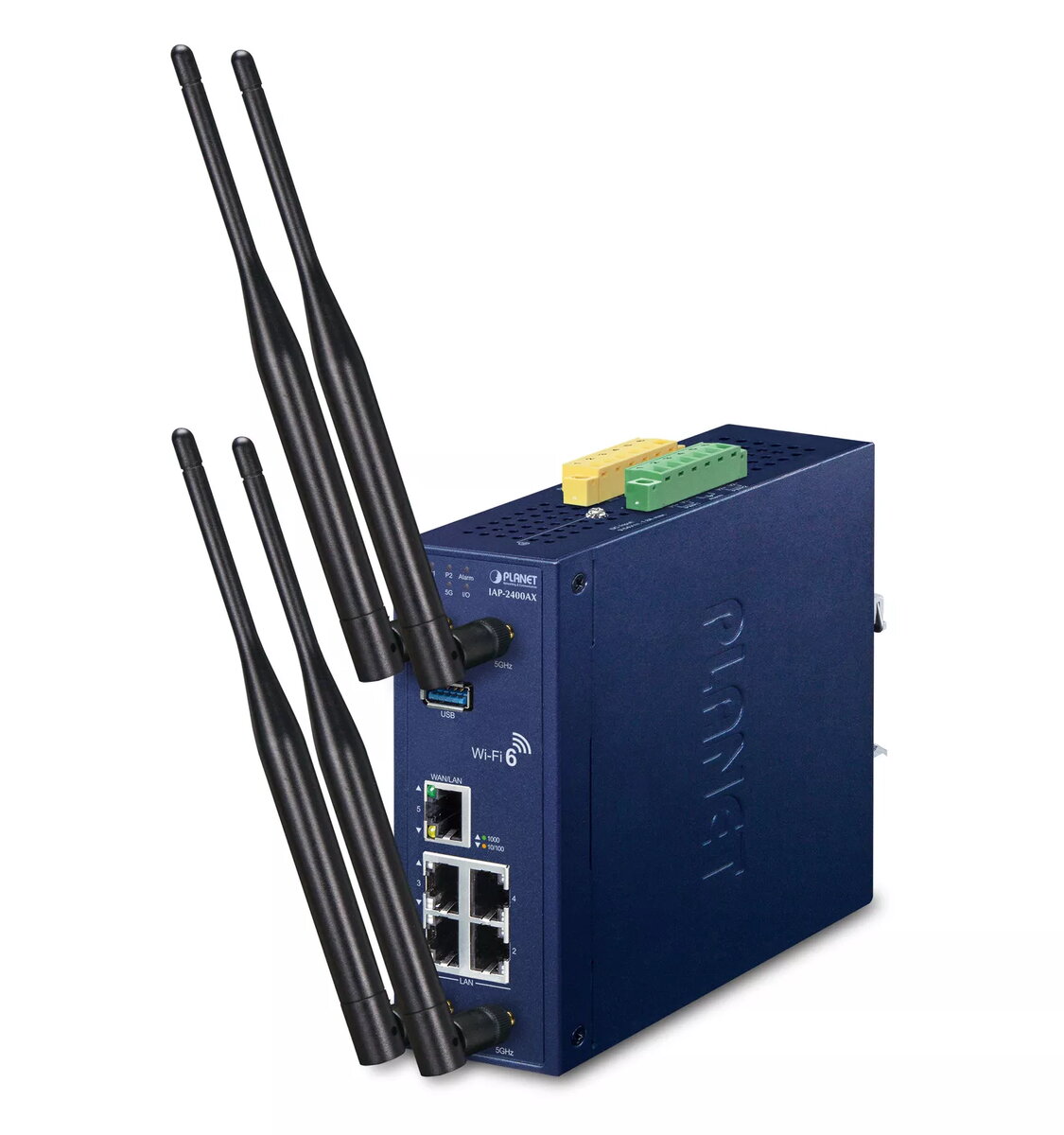

Gateway Controller PLANET IAP-2400AX 2.4GHz 802.11n

Gateway Controller PLANET IAP-2400AX Photo 1
Gateway Controller PLANET IAP-2400AX Photo 1
Gateway Controller PLANET IAP-2400AX 2.4GHz 802.11n
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The PLANET IAP-2400AX is a robust gateway/controller designed for reliable wireless connectivity. It features a durable metal enclosure, supports external antennas with RP-SMA connectors, and offers flexible mounting options (DIN-rail or wall). With power requirements of 9~54V DC and a compact size of 50mm width, 135mm depth, and height, it is ideal for various installations. This device operates in the 2.4GHz band and complies with the 802.11n standard, ensuring efficient performance for your network needs.
Warranty: 2 Years
SKU: 10936232
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IAP-2400AX is an industrial-grade wireless gateway/controller designed for reliable WLAN connectivity in harsh environments. Housed in a rugged IP30 metal case, it supports 802.11ax Wi‑Fi 6 operation in the 5 GHz band with a maximum wireless throughput of up to 2400 Mbps and can serve up to 150 client devices. The unit includes five 10/100/1000T LAN ports, dual power input (9–54 V DC), external antenna support (RP-SMA), and flexible mounting options (DIN‑rail or wall) for compact installations.

Advantages

The IAP-2400AX delivers high wireless capacity and improved efficiency through Wi‑Fi 6 features such as MU‑MIMO, OFDMA, Beamforming, Seamless Roaming and BSS Coloring. It is rated to operate across a wide temperature range (−40 to 75 °C) and provides industrial reliability with a metal housing, dual power input and digital input/output for external alarms. Security is supported with WPA/WPA2/WPA3 and TLS/SNMPv3 management options, while centralized management is possible via PLANET NMS or built‑in web/CLI/SNMP interfaces.

Suitable for

  • Industrial or factory wireless coverage in harsh environments
  • Public hotspots, airports, conference rooms and event venues
  • Cabinet or DIN‑rail installations with limited space
  • Secure enterprise or branch wireless with centralized AP control

Key specifications

  • Wireless standard: IEEE 802.11ax (Wi‑Fi 6) — 5 GHz operation, up to 2400 Mbps
  • Ethernet: 5 × 10/100/1000T LAN ports
  • Client capacity: up to 150 users
  • Power input: dual 9–54 V DC
  • Environmental: operating temperature −40 to 75 °C; IP30 metal enclosure
  • Mounting: DIN‑rail or wall mounting
  • Security: WPA/WPA2/WPA3, TLS, SNMPv3
  • External antenna: RP‑SMA connectors
  • Dimensions/weight: compact form factor; weight approx. 0.787 kg

How to use

Install the IAP-2400AX in the chosen location using the DIN‑rail clip or wall mounts, connect the external antennas to the RP‑SMA connectors and attach network cables to the LAN ports. Provide power via one or both DC inputs (9–54 V DC). Access the device using the web GUI, CLI or SNMP to configure network mode (AP or Gateway), SSID, security (WPA3 recommended where supported) and advanced Wi‑Fi 6 features such as OFDMA, MU‑MIMO and channel allocation. For multi‑site deployments, use PLANET NMS‑500 or NMS‑1000V to push profiles and manage multiple APs centrally.

Usage recommendations

Place the unit where external antennas have clear line of sight to client devices for best coverage; enable WPA3 and TLS for stronger security, and use the built‑in Wi‑Fi analyzer to select non‑overlapping channels. Configure dual power input for redundancy and connect the digital input/output to external alarm systems if on‑site monitoring is required.

Specifications

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
External
Product colour: The colour e.g. red, blue, green, black, white.
Blue
All features
Mounting type: Type of mounting e.g. wall mounting.
DIN-rail/Wall mounting
Control display unit:
No
Enclosure International Protection (IP) code:
IP30
Enclosure material:
Metal

Operational conditions

Storage relative humidity (H-H):
5 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 75
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75
Operating relative humidity (H-H):
5 - 90

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.787 kg
Height: The measurement of the product from head to foot or from base to top.
135 mm
Depth: The distance from the front to the back of something.
135 mm
Width: The measurement or extent of something from side to side.
50 mm

Antenna

Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.
RP-SMA
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
External

Design

LED indicators:
Power
Reset button:
Yes
Product colour: The colour e.g. red, blue, green, black, white.
Blue

Power

Power requirements:
9~54V DC, 1.8A
