Wireless Access Point PLANET WDAP-C3000AX Dual Band Wi-Fi 6

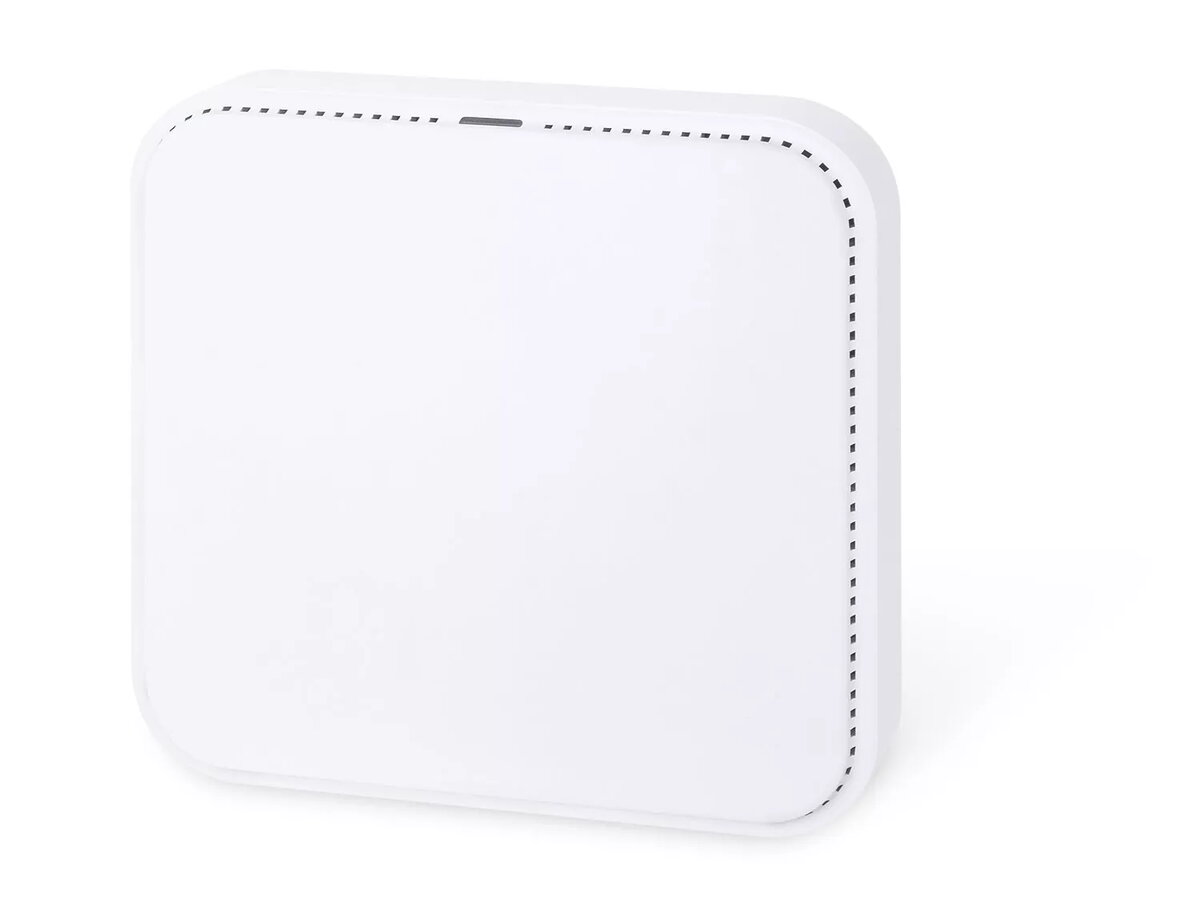

PLANET WDAP-C3000AX is a dual-band Wi‑Fi 6 (802.11ax) wireless access point delivering combined wireless throughput up to 3000 Mbps (2400 Mbps on 5 GHz and 600 Mbps on 2.4 GHz). Designed for environments that require high client density, it supports up to 256 client users and includes features such as Wi‑Fi MESH, MU‑MIMO, OFDMA, Seamless Roaming, Beamforming and BSS Coloring. The unit is PoE-capable and comes in a compact white enclosure suitable for public areas, offices and conference spaces.

Advantages

The WDAP-C3000AX increases network efficiency and capacity by using Wi‑Fi 6 technologies. OFDMA and MU‑MIMO enable concurrent communications with multiple clients to reduce latency and improve throughput in crowded environments. Beamforming focuses wireless signals toward connected devices to extend coverage and improve connection stability. BSS Coloring helps reduce interference from overlapping networks. WPA3‑Personal support provides stronger password-based protection for wireless connections.

Suitable for

• Public hotspots, airports and conference venues
• Open-plan offices and meeting rooms with many users
• Small and medium enterprises seeking centralized AP management
• Homes or offices requiring extended Wi‑Fi coverage via Mesh

Key specifications

• Standard: IEEE 802.11ax (Wi‑Fi 6)
• Wireless speed: up to 2400 Mbps (5 GHz) + 600 Mbps (2.4 GHz), total 3000 Mbps
• Max clients: up to 256 users
• Security: WPA/WPA2/WPA3 (WPA3‑Personal supported)
• Technologies: MU‑MIMO, OFDMA, Beamforming, BSS Coloring, Seamless Roaming
• Operation modes: AP, Gateway, Repeater
• Management: PLANET CloudViewerPro, NMS‑500 / NMS‑1000V support
• Antennas: 4 external antennas
• Colour: White; Weight: 0.38 kg

How to use

Mount the WDAP-C3000AX in the desired location and provide power via PoE or local power supply depending on your installation. Use the web GUI or the PLANET CloudViewerPro app to run the configuration wizard and set SSIDs, security (WPA3‑Personal if required), radio bands and channel settings. For centralized deployments, use NMS‑500 or NMS‑1000V to push wireless profiles to multiple APs. Enable Mesh mode when extending coverage across multiple devices and adjust transmit power or scheduling options as needed through the management interface.

Usage recommendations

Place the access point centrally for best coverage, avoid physical obstructions near the unit, and use automatic channel selection or the built‑in Wi‑Fi analyzer to reduce channel overlap. For high‑density environments enable OFDMA and MU‑MIMO and configure WPA3‑Personal for user security where supported.
