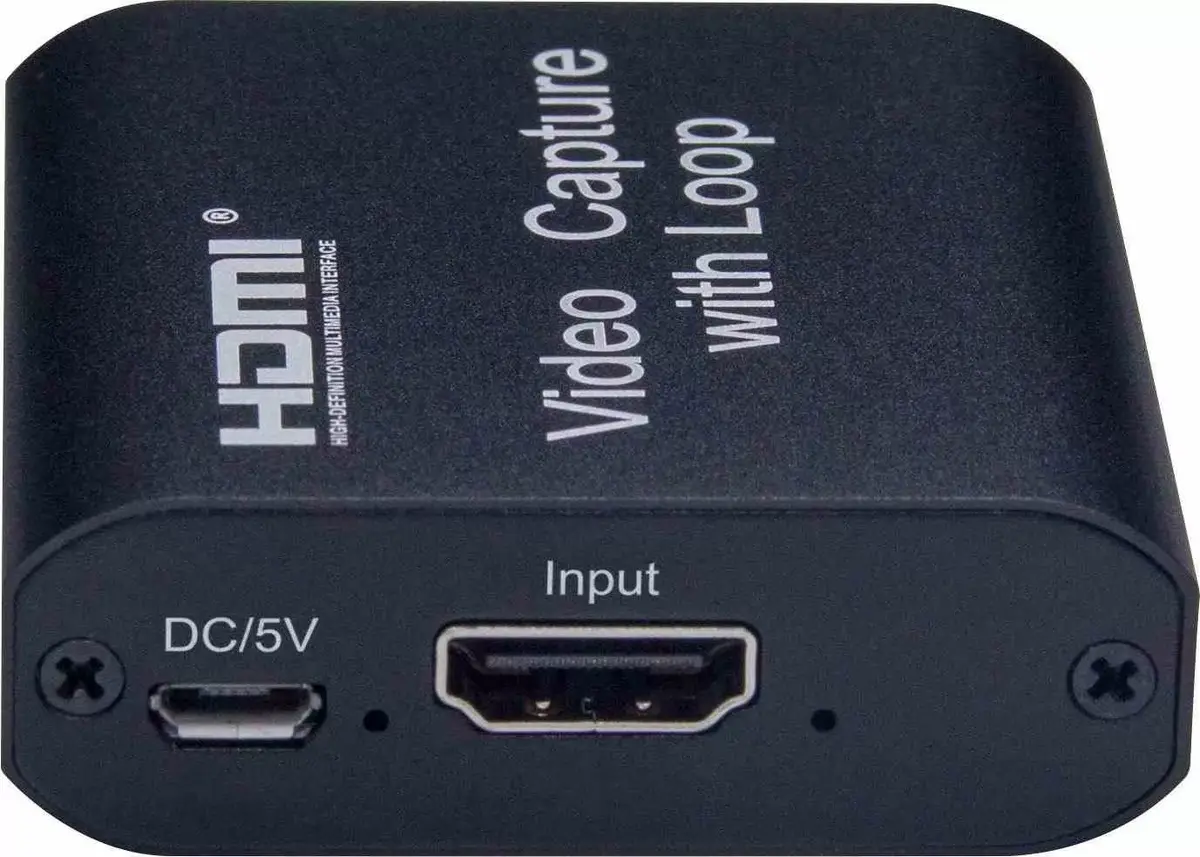

PREMIUMCORD HDMI Video Capture 8592220022259 with Loop Function

The PREMIUMCORD HDMI Video Capture (EAN 8592220022259) is a compact USB-powered device for recording and transmitting HDMI video and audio to a computer. It supports real-time capture with a loop (pass-through) function so you can record while the HDMI signal is simultaneously output to a monitor or TV. The device accepts input resolutions up to 3840 × 2160 at 30Hz and records/output at 1920 × 1080 (1080p) at 30Hz, making it suitable for game consoles, cameras, set-top boxes and presentations.

Advantages

The capture device offers high-resolution 1080p recording directly to a connected computer without noticeable delay, wide compatibility across Windows, macOS and Android with plug-and-play operation, and support for third-party capture software such as VLC and OBS. It supports 8/10/12-bit deep color, L-PCM audio format, and provides an HDMI loop output so you can monitor the source while recording. The unit is USB powered, requires no external adapter, and comes in a durable metal housing.

Suitable for

• Recording and live streaming gameplay from PS4, Switch, Wii U and other consoles
• Capturing footage from cameras and camcorders
• Recording presentations and set-top box output for archiving or sharing
• Real-time streaming to platforms using OBS, VLC or similar software

Key specifications

• Brand: PREMIUMCORD
• EAN: 8592220022259
• Input resolution: up to 3840 × 2160 @ 30Hz
• Output/recording resolution: 1920 × 1080 @ 30Hz (1080p)
• Video color depth: 8/10/12-bit
• Audio format: L-PCM
• Interface: USB 2.0 (UVC/UAC compliant)
• Power: USB powered, maximum working current 0.7 A at 5 V DC
• Operating temperature: -10 to +55 °C
• Loop (pass-through) HDMI output: yes
• Dimensions: 59 × 56 × 19 mm
• Weight: 52 g
• Case: black metal

How to use

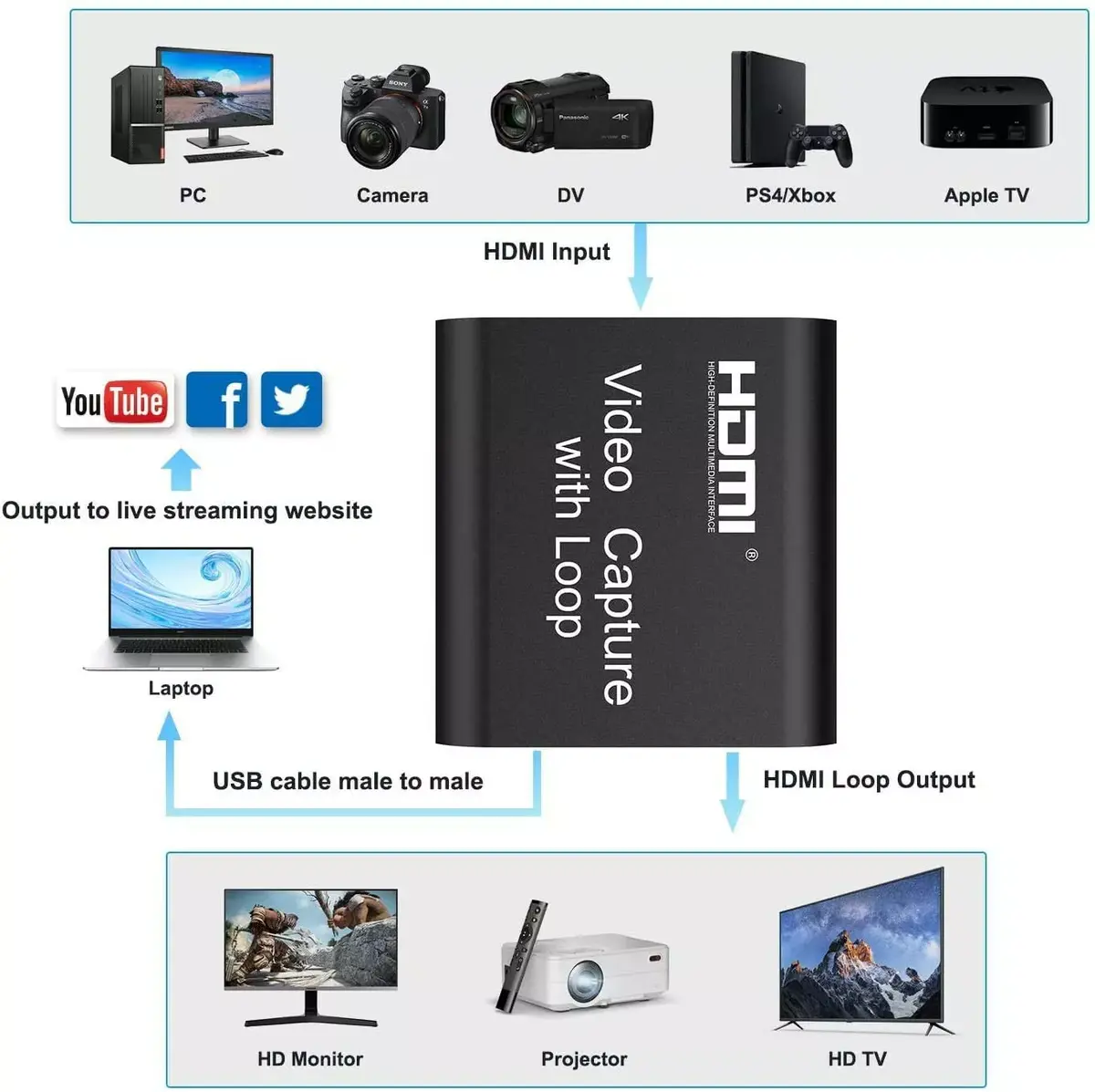

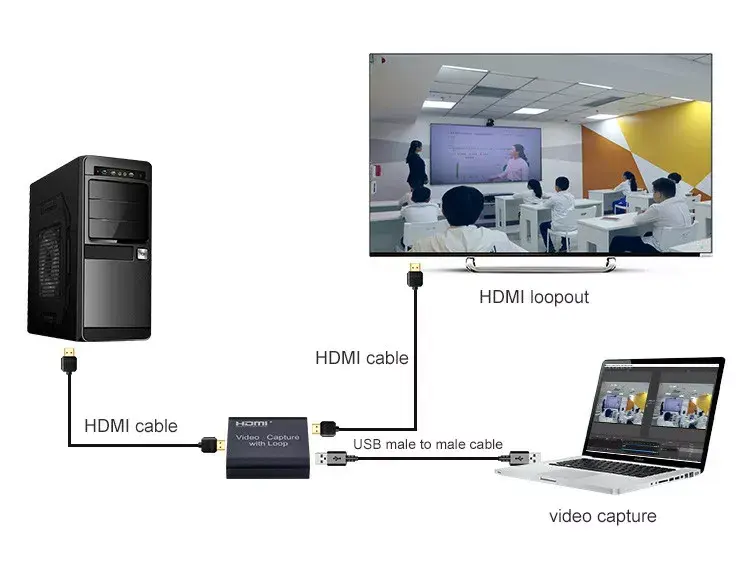

Connect an HDMI source (console, camera or set-top box) to the device input and connect the device’s HDMI output to a monitor or TV for pass-through viewing. Plug the device into your computer’s USB port using the included USB cable; it will be recognized as a UVC/UAC device without additional drivers on Windows, macOS or Android. Open your preferred capture or streaming software (for example OBS, VLC or Amcap), select the PREMIUMCORD capture device as the video and audio source, set the desired recording parameters and begin recording or streaming.

Usage recommendations

Use AWG26 or equivalent HDMI cables for reliable signal transmission; for 1080p or lower resolutions keep HDMI cable runs within 15 meters. Ensure your PC’s USB 2.0 port provides sufficient power (up to 0.7 A at 5 V) and close unnecessary background applications in your capture software to reduce CPU load during recording or streaming.
