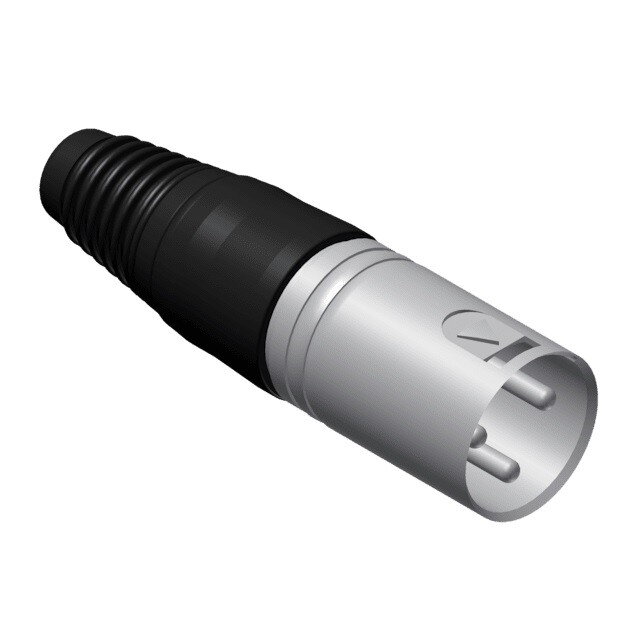

3-pin XLR male cable connector Procab 1KPBU301

Procab 3-pin XLR male cable connector 1KPBU301 is a professional-grade connector designed for balanced audio connections in studio, stage and installation wiring. The connector uses a standard 3-pin XLR male configuration suitable for microphone and line-level signals and is intended for terminating or repairing audio cables and patch leads. Constructed for reliable contact and durable mechanical performance, this XLR male plug is compatible with industry-standard female XLR sockets and suitable for both permanent and field installations.

Advantages

This Procab 3-pin XLR male connector provides secure, low-noise connections for balanced audio signals and features a robust mechanical design to withstand frequent plugging and unplugging. The connector is engineered to ensure solid electrical contact with minimal signal loss and is suitable for professional audio environments where signal integrity is important. Its form factor allows straightforward cable termination and replacement without altering standard audio equipment compatibility.

Suitable for

• Microphone cables and stage microphone wiring
• Line-level balanced audio connections in studios
• Patch leads and snake cable terminations
• Repairing or replacing damaged XLR cable ends

Key specifications

• Connector type: 3-pin XLR, male
• Contact configuration: 3 contacts for balanced audio
• Compatibility: standard XLR female sockets
• Application: microphone and line-level audio cables
• Construction: metal housing with secure latch (mechanical)

How to use

Strip the cable jacket and separate the conductors according to the cable manufacturer’s instructions. Insert the prepared conductors into the connector contacts following the standard pin numbering for XLR: pin 1 = ground, pin 2 = hot (positive), pin 3 = cold (negative). Secure each conductor under the appropriate contact screw or solder joint depending on the connector variant, then assemble the housing and tighten any retaining screws or strain relief clamps. Verify continuity and correct wiring with a multimeter or cable tester before putting the cable into service.

Usage recommendations

Use appropriate soldering equipment or correct-size screwdrivers for termination to avoid damaging contacts. For permanent installations, apply a suitable strain relief and, where possible, use heat-shrink tubing to protect the solder joints. Test cables after installation to confirm balanced wiring and low resistance connections.
