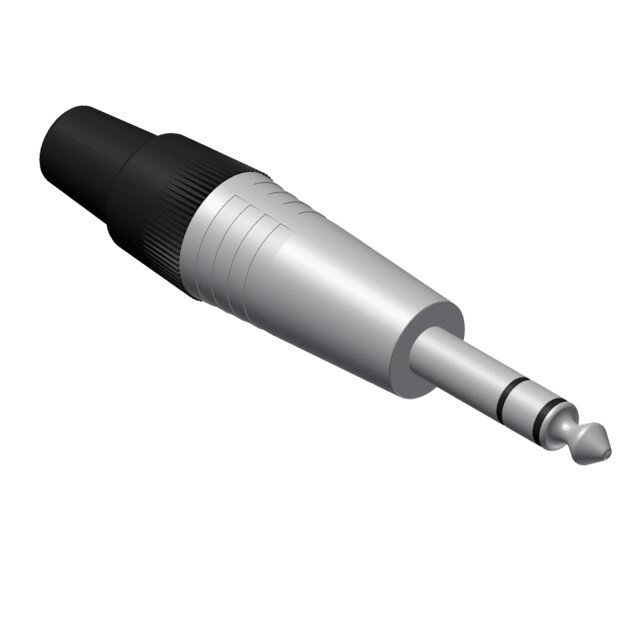

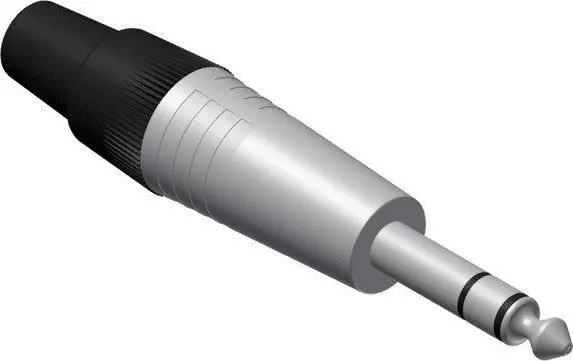

Cable connector Procab 6.3 mm jack male stereo connector

Procab 6.3 mm jack male stereo connector is a solder-type audio plug intended for building or repairing instrument and audio interconnect cables. The connector fits standard 6.3 mm (1/4") jacks and provides a stereo tip–ring–sleeve contact arrangement suitable for carrying left and right channel signals or balanced/unbalanced instrument connections. Designed for workshop assembly, the metal shell and insulated contacts ensure reliable electrical contact in stage, studio and consumer audio applications.

Advantages

The connector is designed for straightforward solder installation, offering a compact form factor and durable housing that secures cable strain relief. Its stereo TRS contact layout enables use with stereo sources and some balanced signals, while the robust construction helps maintain consistent signal transmission under frequent plugging cycles. The design supports professional and hobbyist cable assembly with predictable electrical characteristics and easy access to solder terminals.

Suitable for

• Repairing or constructing instrument cables (guitars, keyboards)
• Connecting stereo outputs to mixers or amplifiers
• Workshop and DIY audio cable projects
• Stage and studio patching where 6.3 mm stereo plugs are required

Key specifications

• Connector type: 6.3 mm (1/4") male jack, stereo (TRS)
• Mounting: solder-type terminals for cable assembly
• Shell material: metal housing for mechanical protection
• Contact arrangement: tip–ring–sleeve for stereo or balanced signals
• Use case: audio signal transmission for instruments and line-level devices
• Compatibility: standard 6.3 mm female jacks and inputs

How to use

Prepare the audio cable by stripping the outer jacket and isolating the conductors and shield. Tin the exposed conductor ends and the connector solder lugs with solder. Insert the cable into the connector body, solder each conductor to the corresponding terminal (tip, ring, sleeve) according to the intended wiring (stereo or balanced), and secure the housing and strain relief. Verify connections with a continuity tester or by connecting to known-good equipment before regular use.

Usage recommendations

Use appropriate soldering tools and ventilation when assembling the connector. Ensure correct wiring polarity for stereo or balanced configurations to avoid channel reversal or noise. For high-reliability stage or permanent installations, check solder joints and strain relief periodically and replace connectors that show wear or intermittent contact.
