Audio Cable Procab PLS225/1 100m Black Copper AWG 13

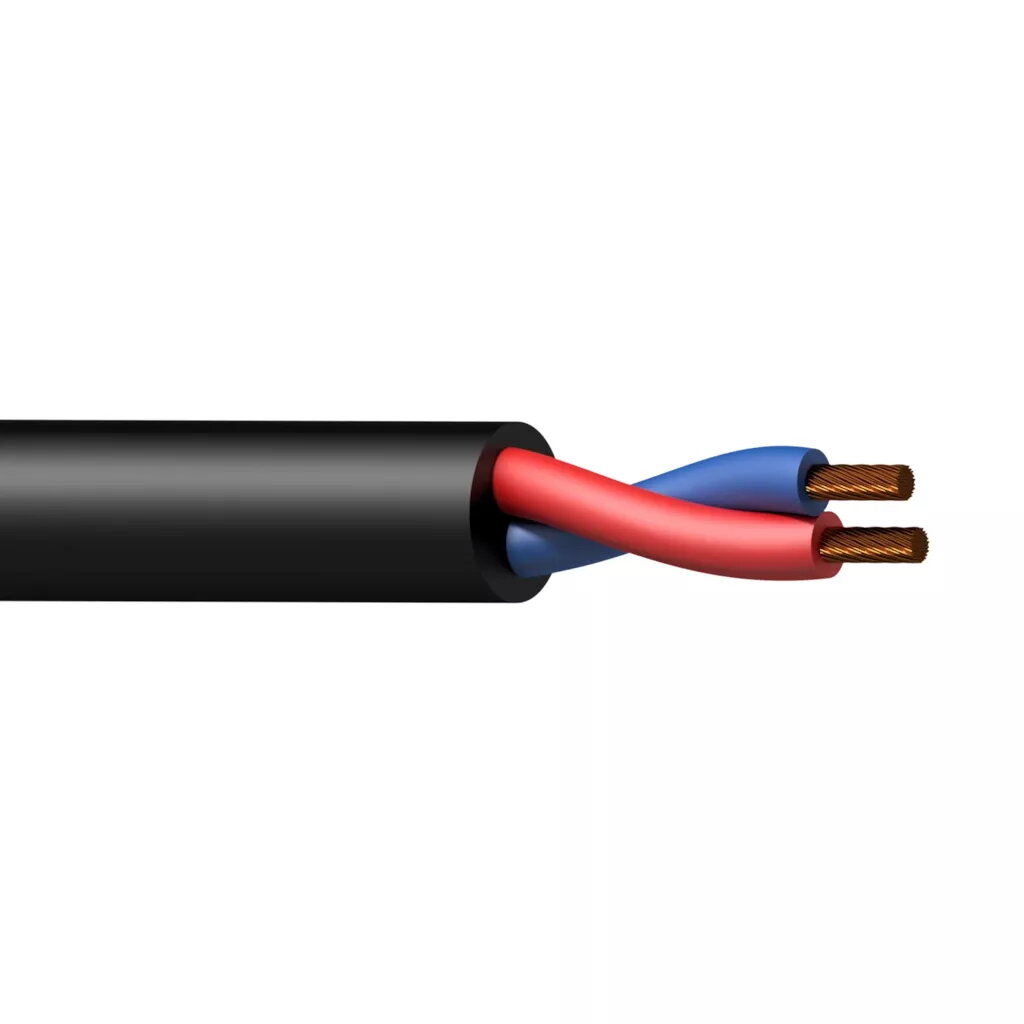

The Procab PLS225/1 audio cable is a 100 m black loudspeaker cable with two 2.5 mm² (13 AWG) conductors made from stranded high-purity copper. Each conductor is formed from 50 strands of 0.24 mm wire to combine low electrical resistance with increased flexibility. The cable features a smooth, flexible yet robust PVC outer jacket (Highflex™) designed for both fixed installations and demanding mobile use, offering easy pulling, guiding through trusses, and reliable rolling and unrolling performance for long cable runs and stage applications.

Advantages

The stranded copper construction provides improved flexibility and longer service life in applications that require bending and repeated handling while maintaining electrical properties comparable to a solid conductor of the same cross section. The 2.5 mm² (13 AWG) conductor size supports efficient sound transmission with minimal signal loss over extended distances. The Highflex™ PVC jacket combines mechanical protection with a smooth surface that simplifies installation and handling during deployment and storage.

Suitable for

• Fixed loudspeaker wiring in venues and installations
• Mobile sound systems and touring where frequent rolling and unrolling is required
• Stage and PA installations with long cable runs
• Professional audio setups for musicians and sound engineers

Key specifications

• Cable length: 100 m
• Conductor cross section: 2.5 mm² (13 AWG)
• Conductor construction: 50 strands × 0.24 mm stranded copper per conductor
• Outer jacket material: flexible PVC (Highflex™)
• Colour: Black
• Design: Two-core loudspeaker cable

How to use

Cut the cable to the required length and strip the outer jacket and conductor insulation according to the connector or terminal specifications of your loudspeakers and amplifiers. Maintain correct polarity when connecting the two conductors to avoid phase issues. For permanent installations secure the cable along run paths using appropriate clamps or cable management to prevent strain on terminations. For mobile use coil the cable loosely to preserve strand integrity and avoid tight bends that could damage the conductor or jacket.

Usage recommendations

For best performance, avoid sharp bends and kinks; keep the cable away from strong electromagnetic interference sources such as power transformers or heavy mains cables. When running long lengths, check connections and polarity at both ends and use suitable speaker connectors or terminal blocks for low-resistance terminations. Store the cable on reels or in coils with moderate tension to maintain flexibility and prolong service life.
