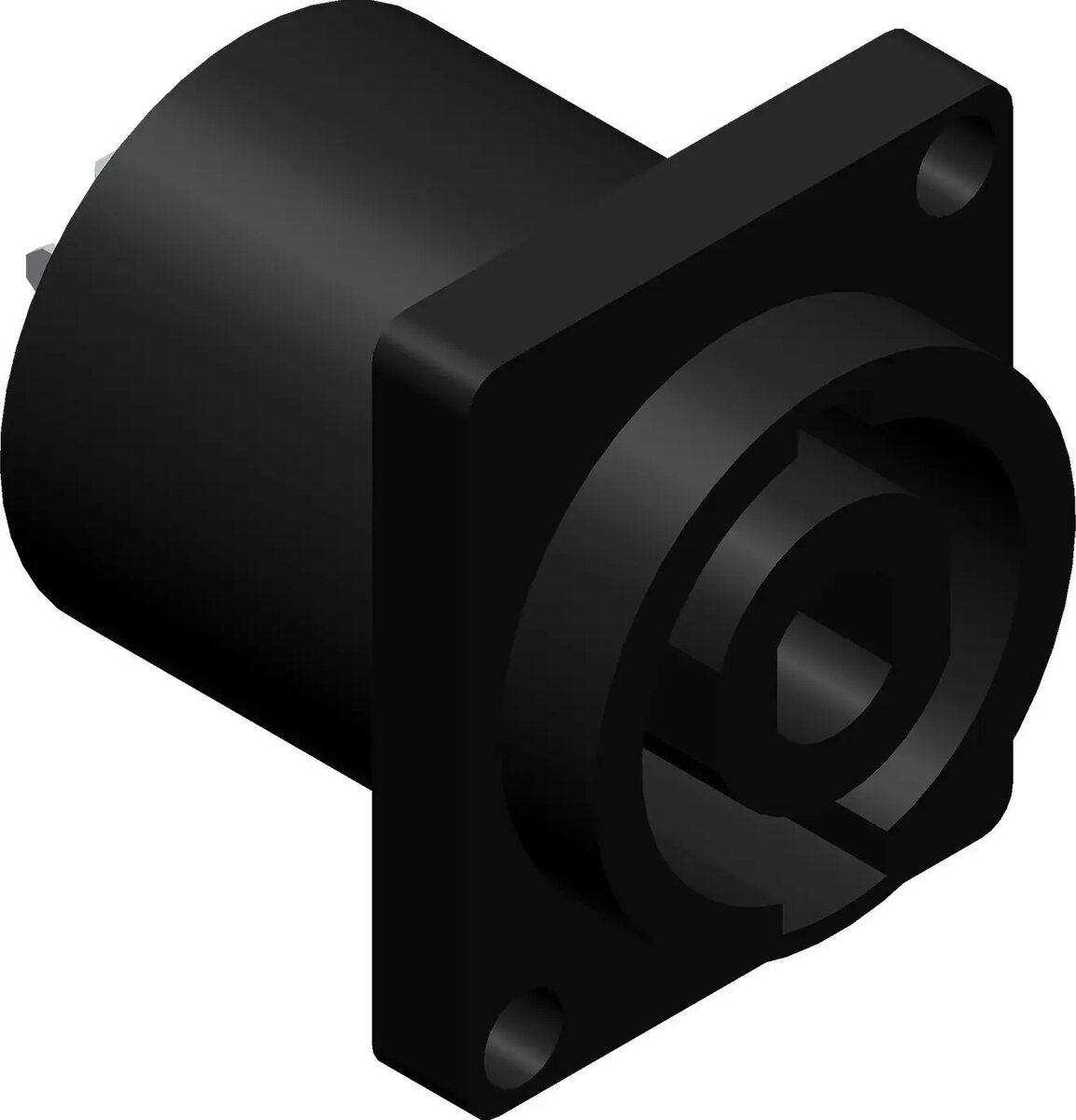

Panel-mount 4-pin male speaker connector adapter Procab VCL4MP

Procab VCL4MP is a panel-mount 4-pin male speaker connector adapter designed to provide a fixed, durable termination point for multi-conductor speaker cables in installed sound and professional audio systems. The adapter fits into a standard panel cutout and secures to the enclosure, creating a compact and stable connection point suitable for racks, stage boxes and permanent installations.

Advantages

The metal-bodied panel-mount adapter offers mechanical stability and minimizes strain on cable terminations. The four-pin male configuration enables reliable, polarity-preserving connections for multi-channel or bridged speaker systems. Its panel-mount design keeps connectors accessible from the front or rear of a rack or enclosure while maintaining a neat and serviceable installation.

Suitable for

• Fixed installations in AV racks and loudspeaker cabinets
• Stage and touring setups requiring robust multi-pin speaker connections
• Studio and rehearsal rooms where durable panel terminations are needed
• Permanent AV installations in venues, houses of worship or conference rooms

Key specifications

• Connector type: 4-pin male speaker connector, panel-mount format
• Mounting: fits standard rectangular panel cutout with screw fastening
• Contact arrangement: four separate conductor contacts for multi-channel or bridged connections
• Construction: durable metal housing for mechanical strength and shielding
• Compatibility: designed for use with standard multi-conductor speaker cables and matching female connectors

How to use

Install the Procab panel-mount adapter into a prepared panel cutout and secure it with the provided screws or fasteners so the connector aligns with the cable routing. Terminate each speaker conductor to the corresponding contact following correct polarity and wiring diagrams for your speaker system. Once mounted and wired, connect the mating female connector from the speaker cable to the adapter to complete the audio circuit. Ensure all connections are tightened and strain relief is applied where appropriate.

Usage recommendations

Verify conductor assignment and polarity before applying power to amplifiers. Use appropriate gauge speaker cable and ensure the mating connector is fully seated to maintain low-resistance connections. For permanent installations, periodically inspect mounting screws and contact integrity to prevent loosened connections due to vibration or thermal cycling.
