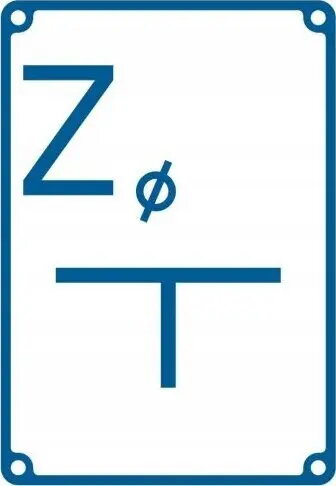

Orientation Plate for Gate Valve PROCERA Znak TDC BH-JB002BPPN, metal identification plate

Orientation plate PROCERA Znak TDC model BH-JB002BPPN is a metal identification plate designed for mounting on or near gate valves to indicate valve position, provide labeling or carry short identification markings. The plate is suitable for industrial and municipal installations where a durable, metal marker is needed to show open/closed status, a valve label or a reference number. Its construction allows fixed attachment to valve bodies, frames or nearby piping supports and provides a clear, visible reference point for operators and maintenance personnel.

Advantages

The metal orientation plate offers corrosion-resistant durability and clear surface area for engraving, stamping or printing of position and identification information. Its compact form factor enables mounting in tight spaces on valve bonnets or adjacent structures while maintaining legibility. The design supports both permanent and replaceable marking methods and is compatible with standard fastening options used in valve assemblies.

Suitable for

• Industrial gate valves in manufacturing plants
• Municipal waterworks and distribution systems
• Commercial plumbing and HVAC installations
• Maintenance tagging and valve identification programs

Key specifications

• Material: metal construction suitable for industrial environments
• Function: identification and orientation marking for gate valves
• Mounting: designed for attachment to valve bodies, bonnets or adjacent supports
• Marking methods: suitable for engraving, stamping or printing
• Visibility: designed to provide clear indication of valve position or identifier

How to use

Position the orientation plate on the valve bonnet, body or nearby fixed support where the marking will be clearly visible to operators. Mark the plate according to your identification scheme using engraving, stamping or a suitable printing method. Secure the plate with appropriate fasteners or adhesive compatible with the valve material and installation environment, ensuring it does not interfere with valve operation or access for maintenance.

Usage recommendations

For long-term legibility and corrosion resistance, select a marking method appropriate to the environment (permanent engraving for outdoor or corrosive conditions). Verify that the chosen mounting hardware and installation position do not impede valve operation or maintenance access.
