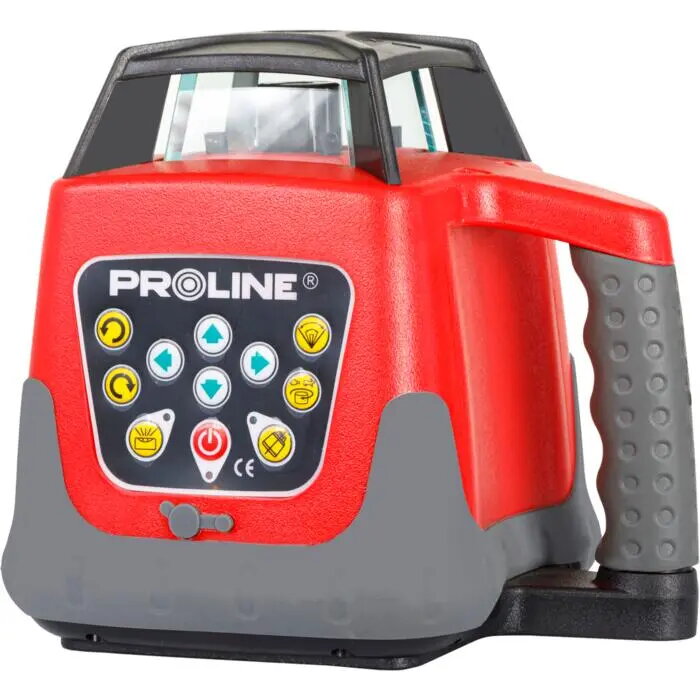

Laser level Proline 15162 — self-leveling laser measuring tool, 1 pc

Proline 15162 is a self-leveling rotary laser measuring tool designed for alignment and leveling tasks in construction, interior finishing and DIY projects. The device projects highly visible green laser lines and spots for horizontal, vertical and rotary reference. It is supplied as a single unit with accessories that support both manual and remote operation, enabling precise layout, alignment and elevation work across indoor and outdoor sites.

Advantages

The Proline 15162 uses a green laser (520 nm) which is up to four times more visible than standard red lasers, improving sightability in bright or distant conditions. It delivers horizontal beam precision of 1 mm at 10 m and a vertical spot accuracy of 1 mm at 1.5 m. The built-in 3500 mAh Ni‑MH battery provides portable operation, while IP54 dust and water protection and shock safety reduce measurement errors caused by vibration or movement. Multiple operating modes—rotary, line and spot—plus selectable rotation speeds and opening angles make the tool flexible for different tasks. A detector extends the working range when required, and included accessories such as a remote control, detector bracket and carrying case simplify site use and transport.

Suitable for

• Interior finishing: installing ceilings, partitions, tiling and cabinetry
• Exterior site layout and grading when used with the detector
• Plumbing and vertical alignment of columns, posts and frames
• Setting elevation lines for foundations, screeds and drainage slopes
• DIY renovation and precise mounting of fixtures and shelves

Key specifications

• Laser color and wavelength: green, 520 nm
• Laser power: ≤ 1 mW (Class 3R)
• Horizontal beam precision: 1 mm / 10 m
• Vertical spot accuracy: 1 mm / 1.5 m
• Automatic self-levelling range: ±5°
• Operating range: up to 30 m without detector; up to 500 m with detector
• Battery: integrated 3500 mAh Ni‑MH rechargeable battery
• Rotary speeds: 60, 120, 300, 600 rpm; bi‑directional rotation
• Line opening angles: 10°, 45°, 90°, 160° (manual selection available)
• Spot mode: 0° opening angle, rotation disabled
• Remote control operating range: approximately 20 m
• Detector modes: coarse and fine detection
• Protection class: IP54
• Tripod mount: 5/8” thread in base
• Carrying case included

How to use

Position the Proline 15162 on a flat surface or mount it on a tripod using the 5/8” thread. Switch on the instrument and allow the automatic self-levelling system to stabilise within its ±5° range; if the instrument is outside that range, use manual tilt adjustment or re‑position the unit. Select the required operating mode: rotary for long‑distance reference with a detector, line mode for improving beam visibility within a limited angle, or spot mode for a single precise reference point. Adjust rotation speed and opening angle as needed. When working at extended distances, use the supplied laser detector and bracket to locate the beam and clamp the detector to a grade rod, checking the bracket’s circular level before recording measurements. The remote control can be used to change modes and speeds from a distance of about 20 m.

Lietošana un ieteikumi

For best visibility of the green beam, use the line or rotary modes with appropriate opening angles indoors and employ the detector for outdoor or long‑range work. Maintain the instrument by keeping lenses clean, charging the battery according to the manufacturer’s guidance and avoiding impacts that could impair calibration. Verify accuracy periodically against a known reference and transport the device in its case to protect it from shocks and moisture.
