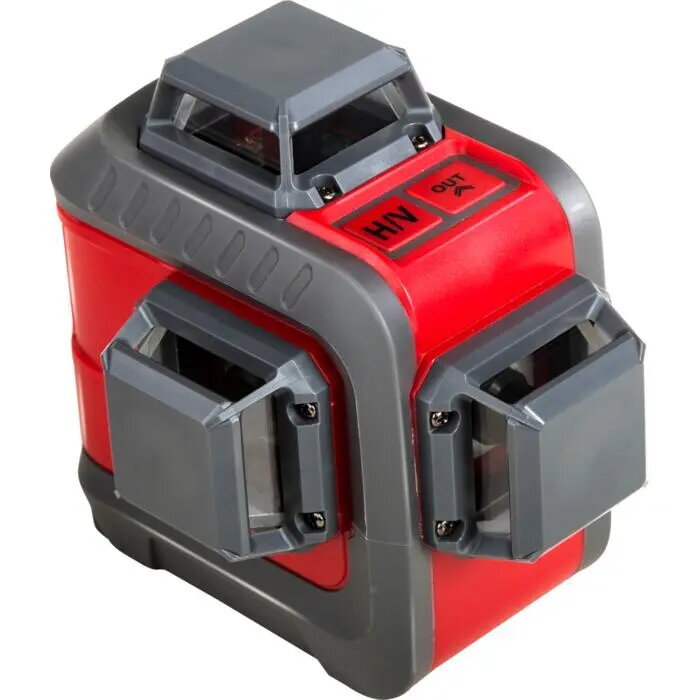

Laser level Proline 15169 — compact self-leveling layout tool, 1 pc

Proline 15169 is a compact self-leveling laser level supplied as a single unit for alignment and layout tasks. It produces bright green horizontal and vertical reference lines suitable for interior installations, tiling, cabinetry and general on-site measuring. The instrument offers simple setup, automatic levelling within ±3° and an operating range up to 20 m, making it a practical portable solution when a clear laser guide is required.

Advantages

The green laser (515–520 nm) is up to four times more visible than standard red lasers and delivers an accuracy of 3 mm at 10 m. The unit includes a 2800 mAh Li‑Ion battery with micro‑USB charging, a rotating head for flexible alignment, and a lock for angled work. For mounting it provides a screw‑on level holder and a strong magnet for attachment to vertical metal members. The housing meets IP54 tightness class to protect the device under typical jobsite conditions.

Suitable for

• Interior installations such as suspended ceilings and partition walls
• Tiling and floor alignment
• Cabinetry, shelving and joinery alignment
• General construction layout and quick on-site checks

Key specifications

• Laser wavelength: 515–520 nm (green)
• Laser power: < 1 mW, laser class 2
• Visibility advantage: green laser up to 4× more visible vs. red
• Accuracy: 3 mm @ 10 m
• Operating range: up to 20 m
• Automatic self-levelling range: ±3°
• Battery: 2800 mAh Li‑Ion with micro‑USB charger
• Mounting options: screw‑on level holder and strong magnet
• Additional accessories included: viewing glasses and laser target
• Protection rating: IP54
• Features: rotating head and lock for angled work

How to use

Place the Proline 15169 on a flat surface or attach it using the screw‑on holder or the integrated magnet to a metal member. Switch on the horizontal and/or vertical beam as required; the device will self‑level within the ±3° range. If the unit is outside the automatic adjustment range, engage the lock for angled measurements. Use the rotating head to fine‑tune beam orientation and the included laser target or glasses to improve visibility for alignment tasks. Recharge the internal Li‑Ion battery via the supplied micro‑USB charger when required.

Usage recommendations

For best results, use the device within its stated operating range and accuracy: maintain a clear line of sight to the target and avoid direct exposure of the eye to the laser. Use the glasses and laser target included in the set in bright environments to improve beam detection. Secure the level to a stable surface or support when performing precision layout; store and transport the tool in the supplied durable bag to protect it between jobs.
