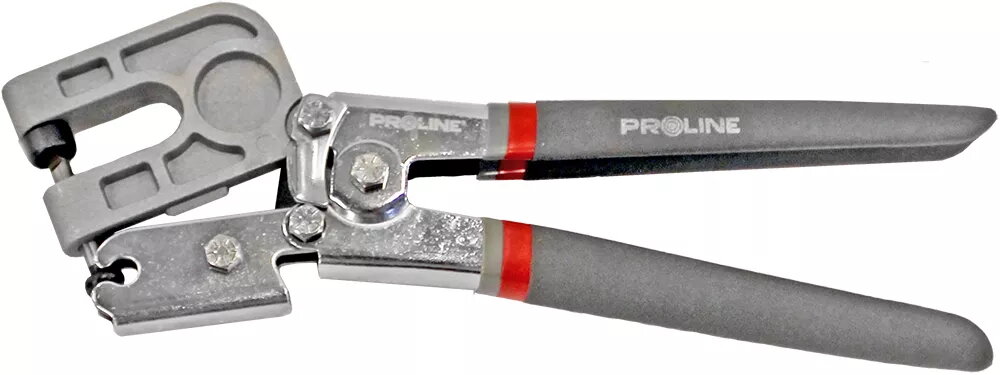

Proline connecting clips 5283900 for metal profiles up to 0.8 mm — fastening clips

Proline Profile Connecting Clips 5283900 are pliers designed for joining steel profiles with a maximum thickness of 0.8 mm. The punch and die are made from durable GR15 steel, while the head is constructed from an aluminum–titanium alloy (Al‑Ti) with a hardness of 57 HRC. The tool features a three-layer non-slip handle and has an overall length of 275 mm.

Advantages

Tool construction combines GR15 steel punch and die for wear resistance with an Al‑Ti alloy head for strength and reduced weight. A 57 HRC hardness rating ensures cutting and forming durability. The three-layer non-slip handle improves grip and control during use. The compact 275 mm length makes the pliers accessible in confined working areas.

Suitable for

• Joining thin steel profiles up to 0.8 mm thick
• Sheet metal framing and light gauge metal assembly
• Installation tasks in tight or confined spaces

Key specifications

• Brand: Proline
• Model / MPN: 5283900
• EAN: 5903755283900
• Maximum profile thickness: 0.8 mm
• Punch and die material: GR15 steel
• Head material: aluminum‑titanium alloy (Al‑Ti)
• Hardness: 57 HRC
• Handle: three-layer non-slip
• Length: 275 mm

How to use

Position the profiles to be connected between the punch and die, align the tool so the perforation and clinching point match the intended joint location, then squeeze the handles firmly to perform the connection. Use steady pressure to ensure a complete clinch and inspect the joint for correct engagement. Keep the punch and die clean and free of debris to maintain consistent results.

Usage recommendations

Use the pliers only on steel profiles up to 0.8 mm thickness. Wear appropriate hand protection and eye protection when working with sheet metal. Regularly check the condition of the punch and die and replace them if worn to maintain reliable connections.
