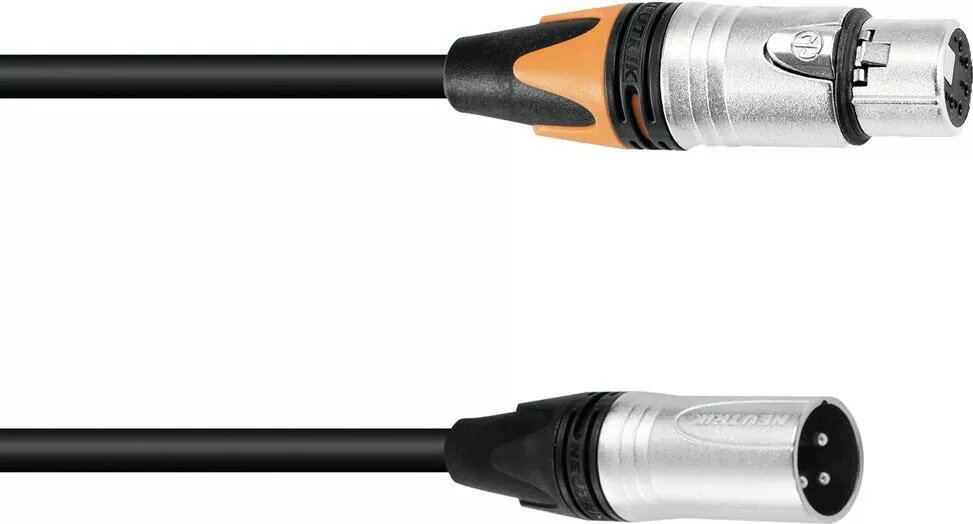

Adapter cable PSSO DMX XLR 3‑pin to 5‑pin, 0.3 m length

PSSO DMX adapter cable converts between XLR 3‑pin and XLR 5‑pin connectors. With a 0.3 m length, it provides a compact and direct electrical connection for DMX signal lines, enabling compatibility between lighting fixtures, controllers and consoles with different pin configurations. The adapter preserves signal integrity for short interconnects and is designed for temporary or semi-permanent setups in stage lighting, DJ rigs and AV installations.

Advantages

The adapter cable offers a short, low‑loss connection that minimizes cable clutter and signal degradation at short distances. Its molded connector ends ensure a secure fit and resist accidental disconnection during use. The compact 0.3 m length is convenient for linking devices that are close together without adding excess cable slack. The cable maintains the correct wiring order for DMX circuits, reducing the need to rewire or replace existing cables when mixing 3‑pin and 5‑pin equipment.

Suitable for

• Connecting a 3‑pin DMX controller to a 5‑pin lighting fixture or vice versa
• Short adapter runs on stage, in DJ booths or at small AV events
• Temporary patching of lighting desks, dimmers and movers during setup
• Workflows requiring compact interconnects where full-length DMX cables are impractical

Key specifications

• Cable type: DMX adapter cable, balanced signal wiring
• Connectors: XLR 3‑pin to XLR 5‑pin
• Length: 0.3 m
• Construction: molded connector housings for strain relief
• Signal compatibility: designed for standard DMX512 lighting control signals

How to use

Plug the XLR 3‑pin connector into the 3‑pin DMX output or input on your controller, console or fixture, and connect the XLR 5‑pin end to the corresponding 5‑pin device. Ensure connectors are fully seated to maintain a reliable connection. Use the adapter for short runs only; for longer distances follow recommended DMX cable practices and termination to avoid signal loss. Verify correct DMX addressing and signal flow after connecting to confirm devices respond as expected.

Usage recommendations

Use this adapter as a short, convenient solution when mixing 3‑pin and 5‑pin DMX equipment. For permanent installations or runs longer than a few meters, use full‑length DMX cables and proper termination practices. Store the adapter protected from moisture and mechanical stress when not in use.
