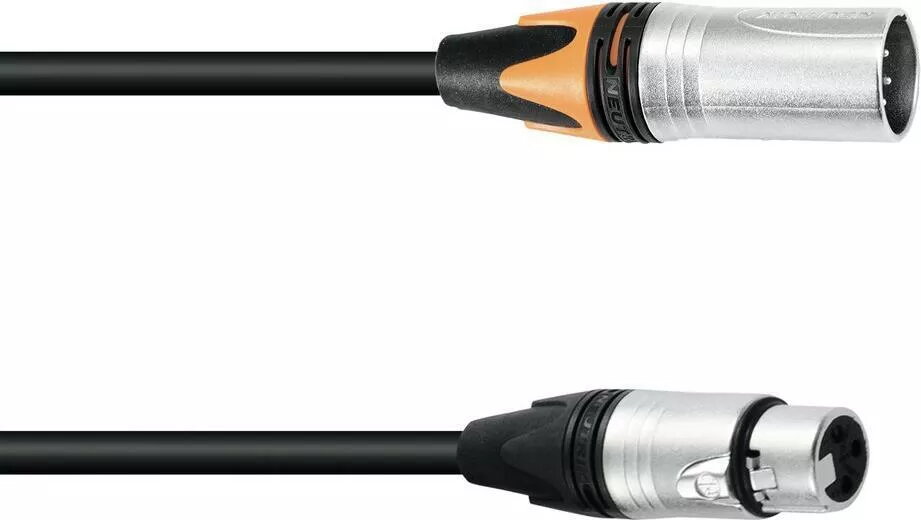

Adapter cable PSSO 5-pin XLR to 3-pin XLR, 0.3 m length

PSSO adapter cable converts a 5-pin XLR connection to a 3-pin XLR in a compact 0.3 m length. Designed for DMX and audio setups that require an adapter between 5-pin and 3-pin XLR connectors, this short cable provides a direct mechanical and electrical connection when wiring standards differ. It is intended to link lighting fixtures, controllers, consoles or audio equipment where a full-length cable is unnecessary or space is limited.

Advantages

The cable offers a compact form factor that reduces clutter and signal path length. Its robust connectors ensure secure mating and consistent contact for both data and balanced audio signals. The short 0.3 m length minimizes potential signal degradation and is convenient for patching in racks, on stage, or in tight installation spaces. The adapter supports common wiring conventions used in DMX lighting and pro audio environments, facilitating compatibility between 5-pin and 3-pin XLR equipment.

Suitable for

• Connecting 5-pin DMX fixtures to controllers with 3-pin XLR outputs
• Short patching between audio equipment with mismatched XLR pin counts
• Rack or stage patching where space is limited
• Temporary adapters for testing or configuration tasks

Key specifications

• Connector configuration: 5-pin XLR (female) to 3-pin XLR (male)
• Cable length: 0.3 m
• Application: DMX lighting and balanced audio adapter
• Construction: shielded cable for reduced interference
• Contact material: plated contacts for reliable conductivity

How to use

Plug the 5-pin XLR end into the device or fixture with a 5-pin output and insert the 3-pin XLR end into the receiving controller, console, or input. Ensure connectors are fully seated and locked where applicable. Verify wiring conventions for your specific DMX or audio equipment before use to ensure correct pin mapping; adaptors only change the physical connector and do not remap signals internally. Use the cable as a short patch or adapter; avoid using it where extended cable runs are required for signal integrity.

Usage recommendations

Use the adapter in short-distance patching, temporary setups, and rackmount patch bays. Inspect connectors for wear before use and avoid subjecting the cable to excessive bending or tension. For permanent installations or long-distance runs, use dedicated cables and ensure pinout compatibility or appropriate signal converters.
