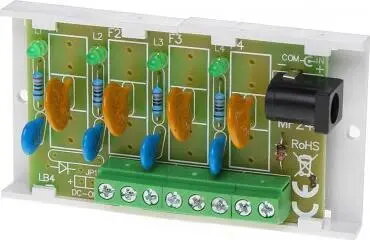

Power Distribution Block PULSAR AWZ-575 — power connector/terminal block (AWZ-575)

PULSAR AWZ-575 is a power distribution block designed to split and distribute DC power in security, alarm and access control systems. The unit provides a single input and multiple screw-terminal outputs, enabling organized and reliable power routing to cameras, sensors and control panels. It is intended for professional installation inside electrical cabinets and junction boxes and supports secure, low-voltage DC connections for installations that require tidy wiring and dependable contact points.

Advantages

The AWZ-575 uses screw-terminal connections that ensure solid contact and minimize the risk of accidental disconnection. Its compact design simplifies installation in constrained cabinet and box spaces while allowing multiple devices to be powered from a single source. The block is built for low-voltage DC distribution and reduces the need for separate adapters or multiple supply lines, helping to centralize wiring and improve serviceability during maintenance.

Suitable for

• Powering CCTV cameras in multi-camera surveillance systems
• Supplying sensors and detectors in alarm systems
• Distributing DC power to access control panels and door controllers
• Organizing wiring inside electrical cabinets and junction boxes

Key specifications

• Type: DC power distribution block with screw terminals
• Input/output configuration: one input, multiple outputs (screw-terminal style)
• Mounting: suitable for installation in electrical cabinets and junction boxes
• Contact type: screw terminals for secure conductor connection
• Intended use: low-voltage DC power routing for security and access systems
• Construction: compact form factor for space-efficient wiring

How to use

Mount the power distribution block inside an appropriate electrical cabinet or junction box on a flat surface or DIN rail if compatible with the chosen enclosure. Connect the incoming DC power to the designated input screw terminal using properly stripped conductors of suitable gauge. Route each device feed to individual output terminals and tighten screws to the manufacturer's recommended torque to ensure reliable contact. Verify polarity and continuity before powering connected equipment, and secure any exposed wiring to prevent mechanical strain on terminal connections.

Usage recommendations

Use the AWZ-575 with appropriate DC power supplies rated for the total current draw of connected devices. Choose conductor sizes that match current requirements and local electrical standards. Avoid overloading the distribution block and routinely inspect terminal tightness and insulation in scheduled maintenance checks.
