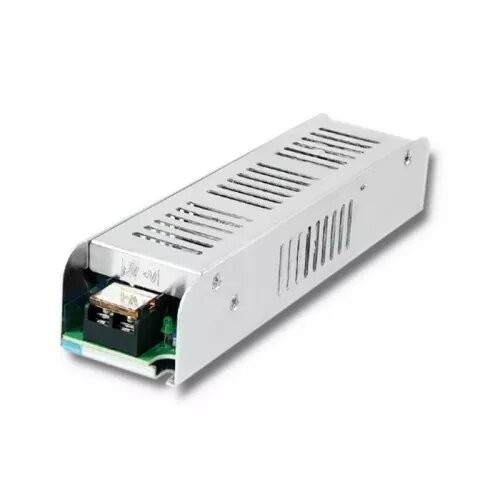

LED driver QOLTEC 50963, 12 V, 8.3 A, 100 W, AC 220–240 V, IP20

QOLTEC 50963 is a slim LED driver that provides a stable 12 V DC output with a maximum current of 8.3 A (100 W). Designed for indoor installations, it accepts an AC input of 220–240 V and has an IP20 rating. Compact dimensions (46 × 190 × 35 mm) and a narrow profile enable installation in spaces with limited access while delivering consistent low-voltage power for LED strips, modules, panels and other 12 V DC lighting devices.

Advantages

The slim metal case allows fitting the power supply into tight spaces. Output stabilization ensures reliable 12 V DC power up to 100 W with built-in protections against common electrical faults. Operating temperature range from -20 to 60 °C and efficient thermal design support continuous operation in typical indoor environments.

Suitable for

• LED strips (12 V)
• LED modules and panels
• 12 V LED bulbs and fixtures
• Small indoor lighting installations requiring a 12 V DC supply

Key specifications

• Model: QOLTEC 50963
• Output voltage: 12 V DC
• Maximum current: 8.3 A
• Maximum output power: 100 W
• Input voltage: AC 220–240 V
• Ingress protection: IP20 (indoor use)
• Operating temperature: -20 to 60 °C
• Dimensions: 46 × 190 × 35 mm
• Brand: QOLTEC, MPN: 50963, EAN: 5901878509631

How to use

Mount the QOLTEC 50963 in a dry, ventilated indoor location away from direct heat sources. Connect the AC input to a 220–240 V mains supply following local wiring regulations and connect the 12 V DC output to the LED load, observing correct polarity. Ensure the total LED load does not exceed 100 W. Allow adequate clearance for ventilation and secure all connections before powering on.

Usage recommendations

Use the driver indoors only (IP20). For reliable operation, keep the ambient temperature within the specified range and avoid overloading the output. If multiple LED strips are used, calculate their combined power to stay below the 100 W limit and distribute loads to prevent voltage drop over long runs.
