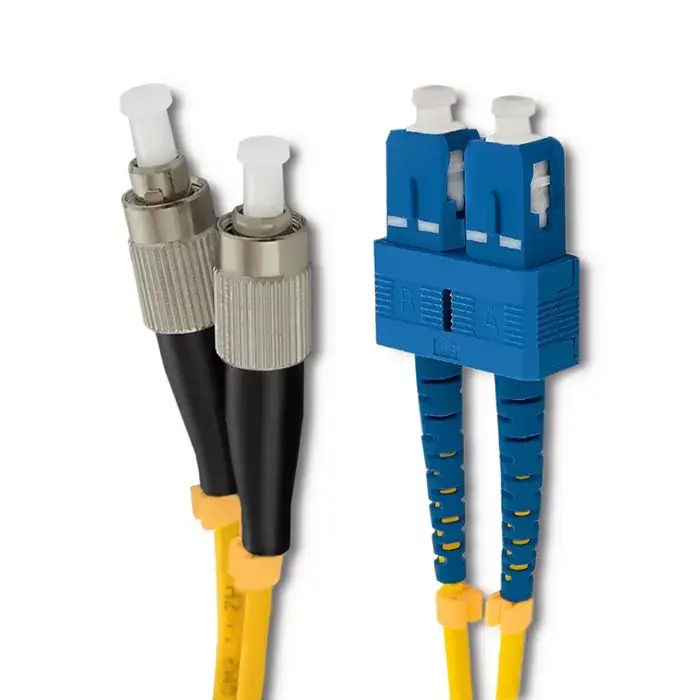

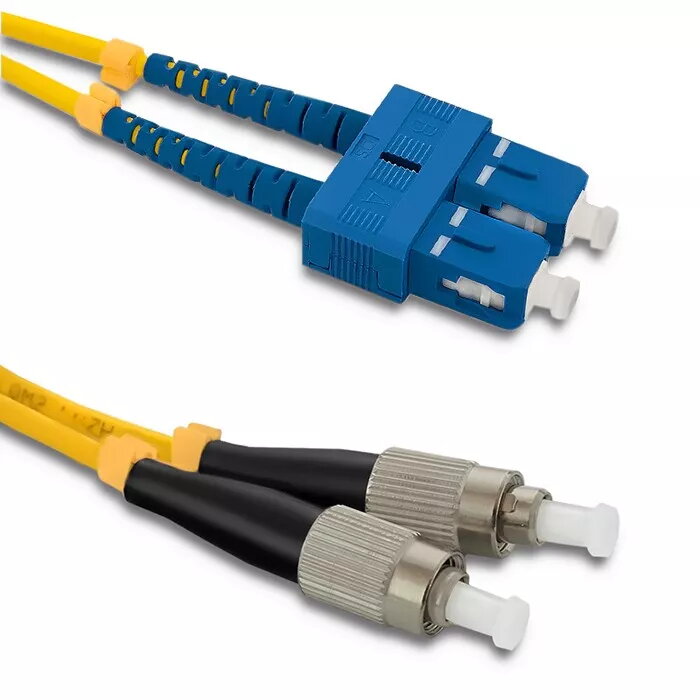

Fibre optic cable QOLTEC 54046 InfiniBand 5 m G.652D SC–FC yellow, 9 µm, full duplex
Short description
Cheapest delivery:
Unisend LV
Product information
Description
QOLTEC 54046 is a 5 m fibre optic InfiniBand cable designed for single‑mode G.652D networks. The cable has a 9 µm core diameter and comes in a yellow jacket, with an SC connector on one end and an FC connector on the other. It supports full‑duplex transmission and is intended for use in network backbones, server interconnects and other high‑speed data links where reliable single‑mode fibre connections are required.
Advantages
The cable's G.652D single‑mode fibre offers low attenuation and stable performance over long distances. Full‑duplex operation allows simultaneous bidirectional data flow, improving throughput in InfiniBand and other high‑speed applications. The use of SC and FC connectors provides compatibility with a wide range of transceivers and patch panels, while the yellow jacket enables easy visual identification of single‑mode cabling in infrastructure environments.
Suitable for
- InfiniBand links between servers and switches
- Network backbone and rack‑to‑rack connections
- High‑speed data centre interconnects
- Optical patch panels and cross‑connects with SC/FC ports
Key specifications
- Cable length: 5 m
- Fibre type: Single‑mode G.652D
- Core diameter: 9 µm
- Connectors: SC (one end) to FC (other end)
- Transmission: Full‑duplex
- Jacket colour: Yellow
- Weight: 0.09 kg
How to use
Inspect both SC and FC connector endfaces for cleanliness before installation and clean with appropriate fibre‑optic cleaning tools if necessary. Route the cable to avoid tight bends and protect it from mechanical stress; maintain bend radius recommended for single‑mode fibre. Insert the SC connector and FC connector into compatible ports until they engage securely, ensuring correct alignment for single‑mode links. Verify full‑duplex operation and link status with network test equipment after connection.
Usage recommendations
Store and handle the cable in a dry environment, avoid crushing or kinking, and use dust caps when connectors are not plugged in. For critical links perform end‑to‑end loss and continuity testing and keep connector endfaces clean to preserve signal quality and reduce bit‑error rates.
- Weight:
- 0.09 kg
- Full duplex:
- Yes
- Package weight:
- 93 g
- Cable length:
- 5 m
- Product colour:
- Yellow
- Package depth:
- 210 mm
- Package height:
- 255 mm
- Package width:
- 15 mm
- Package type:
- Polybag
- Connector 1:
- SC
- Connector 2:
- FC
- Cable diameter:
- 3 mm
- Insertion loss:
- 0.3 dB
- Fiber mode structure:
- Single-mode
- Core diameter:
- 9 µm
- Cladding diameter:
- 125 µm
- Jacket material:
- Low smoke zero halogen (LSZH)
- Connector 1 gender:
- Male
- Connector 2 gender:
- Male
- Quantity per pack:
- 1 pc(s)
- Fibre optic type:
- G.652D
- Return loss:
- 55 dB
- Connector polish type:
- UPC
