Fibre optic cable QOLTEC 54090 SC–SC/APC G.652D 9 µm 120 m Yellow
Short description
Cheapest delivery:
Unisend LV
Product information
Description

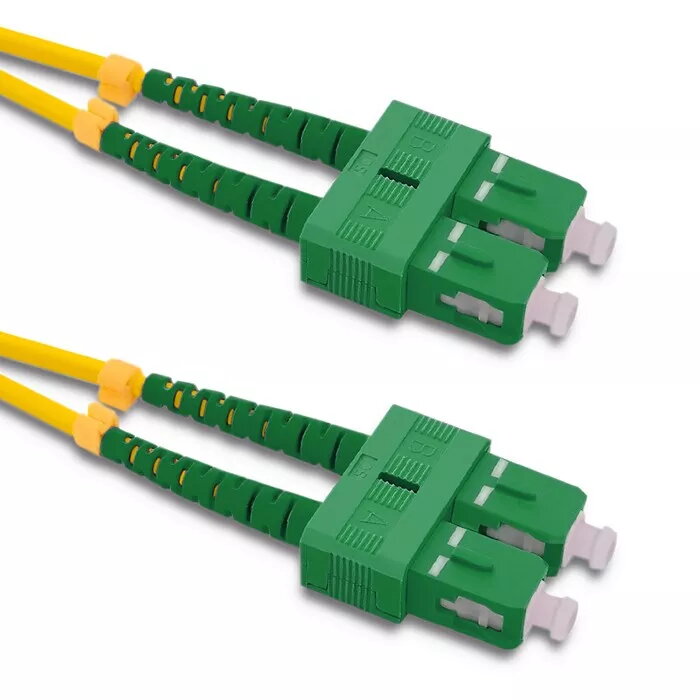

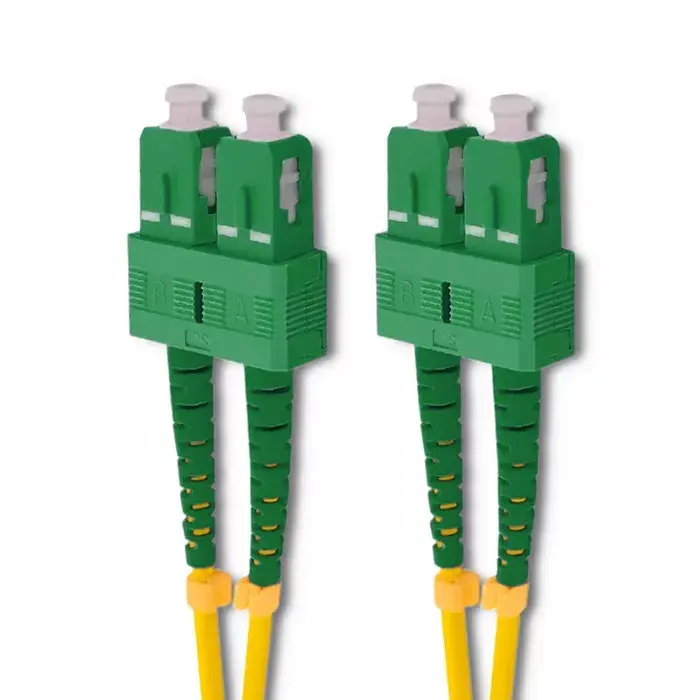

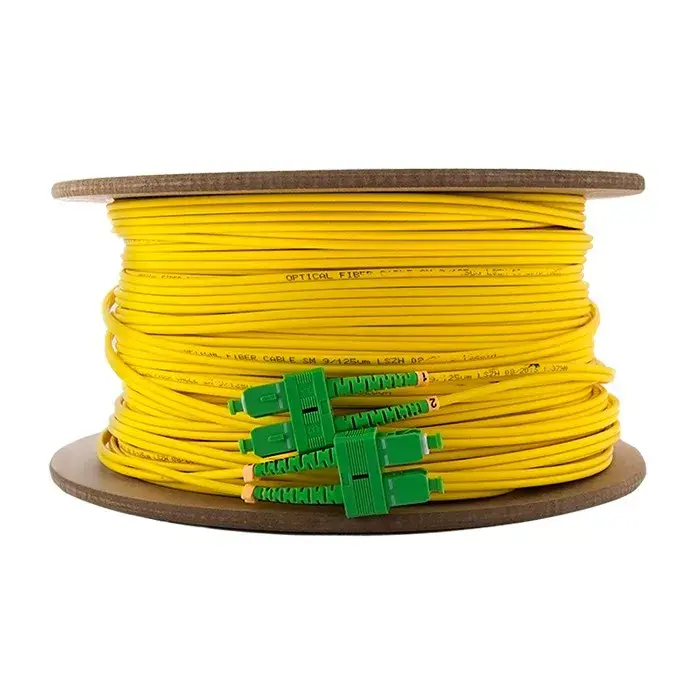

QOLTEC 54090 SC–SC/APC G.652D is a 120 m full-duplex single-mode fibre optic cable designed for reliable long-distance optical links. The cable features SC connectors on both ends with SC/APC termination and uses G.652D fibre with a 9 µm core diameter. Its yellow jacket denotes single-mode fibre and helps with quick identification in backbone, data centre and telecom installations.
Advantages
The QOLTEC 54090 offers low attenuation and stable single-mode transmission characteristics thanks to G.652D fibre, enabling effective signal propagation over extended distances. SC/APC terminations provide reduced back reflection for improved performance in systems sensitive to return loss. The full-duplex configuration with matched SC connectors on both ends simplifies installation and connection in standard networking equipment.
Suitable for
- Backbone optical links within buildings and between equipment rooms
- Data centre interconnects and rack-to-rack connections
- Telecommunication links and long-distance point-to-point connections
- InfiniBand or other high-speed optical fabric requiring single-mode fibre
Key specifications
- Fibre type: single-mode G.652D
- Core diameter: 9 µm
- Connector type: SC–SC with SC/APC termination
- Configuration: full-duplex (paired fibres)
- Length: 120 m
- Jacket colour: yellow (single-mode identification)
- Weight: 21.71 kg
How to use
Route the QOLTEC 54090 cable along the planned pathway, avoiding sharp bends and mechanical stress that can increase attenuation. Prepare equipment SC ports by ensuring they are clean and free of dust; connect each SC connector to the corresponding SC port until it clicks into place. For full-duplex operation, ensure the correct transmit/receive orientation is observed. Test the link with appropriate optical test equipment to verify insertion loss and continuity after installation.
Usage recommendations
Maintain bend radii above the manufacturer’s minimum (avoid tight loops), keep connectors covered until installation to prevent contamination, and use appropriate cable management to reduce strain. For applications requiring minimal back reflection, ensure SC/APC connectors are mated with APC-compliant ports. Periodically inspect and clean connectors with suitable fibre cleaning tools to preserve link quality.
- Weight:
- 21.71 kg
- Full duplex:
- Yes
- Package weight:
- 22730 g
- Cable length:
- 120 m
- Cable type:
- SC/APC
- Product colour:
- Yellow
- Package depth:
- 240 mm
- Package height:
- 240 mm
- Package width:
- 110 mm
- Connector 1:
- SC
- Connector 2:
- SC
- Cable diameter:
- 3 mm
- Insertion loss:
- 0.3 dB
- Fiber mode structure:
- Single-mode
- Core diameter:
- 9 µm
- Cladding diameter:
- 125 µm
- Jacket material:
- Low smoke zero halogen (LSZH)
- Connector 1 gender:
- Male
- Connector 2 gender:
- Male
- Quantity per pack:
- 1 pc(s)
- Fibre optic type:
- G.652D
- Return loss:
- 60 dB
- Connector polish type:
- APC
