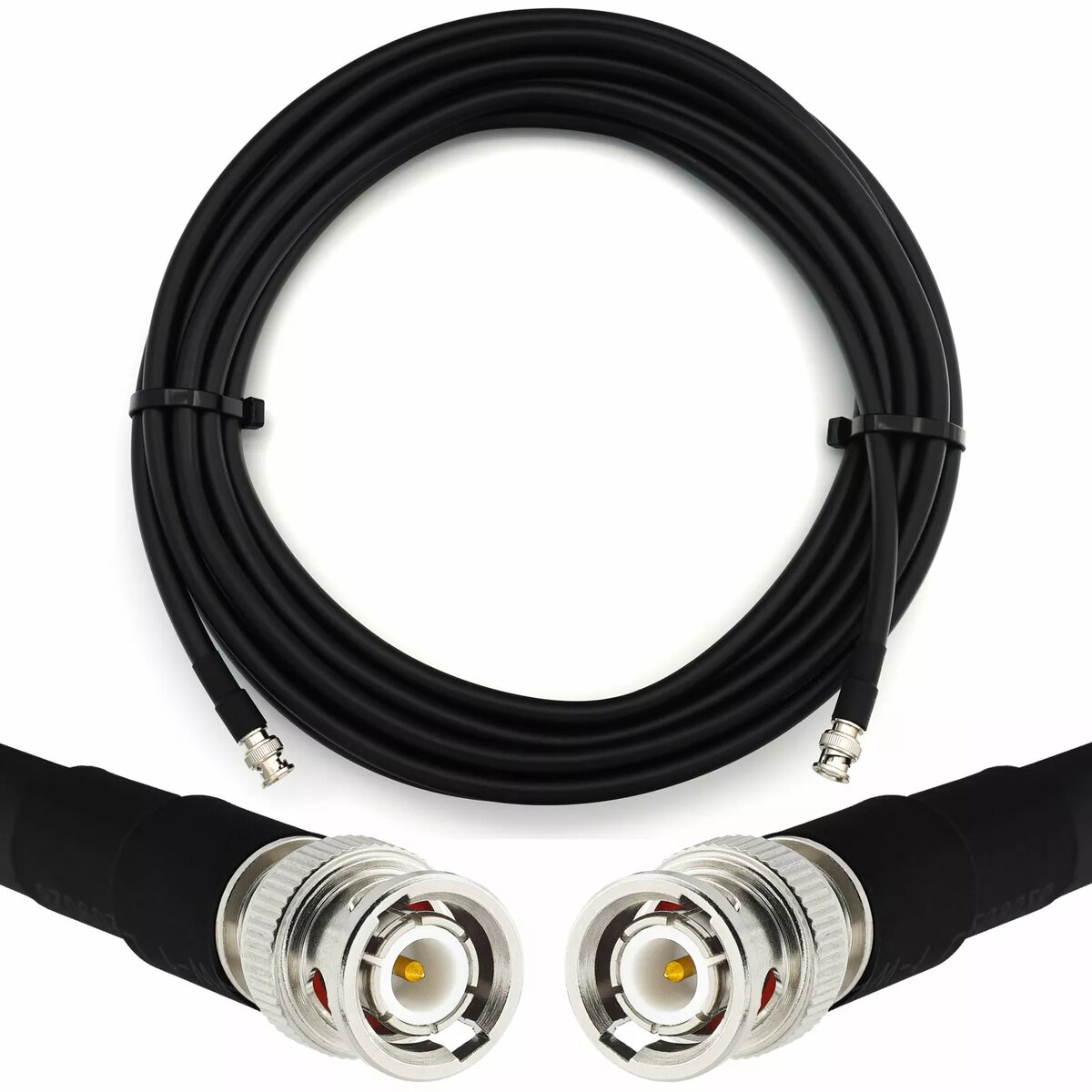

Coaxial cable Rangeful HF400 BNC male–BNC male, 50 Ω, full copper, 1 m

Rangeful HF400 coaxial cable with BNC male–BNC male connectors is a 1 m, 50 Ω interconnect with full copper conductors designed for RF and video signal transmission, test equipment connections and laboratory bench setups. The cable provides a short, flexible link for instruments and devices that require a 50-ohm connection and low insertion loss over short distances.

Advantages

This 1 m HF400 cable uses full copper conductors and a 50-ohm characteristic impedance to maintain signal integrity for RF and video applications. BNC male connectors on both ends ensure secure, quick-connect mating with common test gear, oscilloscopes, signal generators and video equipment. The cable’s flexibility makes it convenient for bench setups and short interconnect runs while minimizing stress on connectors.

Suitable for

• Connecting RF test equipment (signal generators, spectrum analyzers) to devices under test
• Linking video equipment and monitoring systems that use BNC 50 Ω connections
• Short interconnects on laboratory benches and prototyping workstations
• Audio/video test rigs and broadcast test setups requiring controlled impedance

Key specifications

• Connector type: BNC male to BNC male
• Characteristic impedance: 50 Ω
• Conductor material: full copper
• Length: 1 m
• Cable type: coaxial (HF400 series)

How to use

Ensure mating connectors on both devices are BNC female and in good condition before connecting. Align the BNC male connector, push onto the female socket and rotate the coupling nut until it locks to provide a secure mechanical and electrical connection. For test setups, route the cable to avoid tight bends or sharp kinks; maintain gentle bend radii to preserve impedance characteristics. When disconnecting, unlock the coupling nut and pull straight out to avoid stressing the connector.

Usage recommendations

Use this 1 m Rangeful HF400 BNC male–BNC male cable for short, low-loss interconnects where 50 Ω impedance is required. Avoid prolonged exposure to excessive tension, extreme temperatures, or crushing loads to maintain connector and cable performance.
