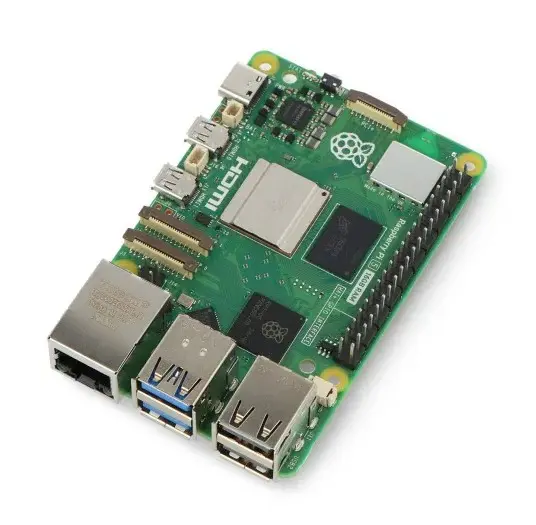

Single-board computer Raspberry Pi 5 development board — 2400 MHz Arm Cortex-A76, up to 16 GB LPDDR4x, MicroSD, USB 3.2, Wi‑Fi 5

Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.

2400 MHz

USB powered: The device can be powered via a USB connection.

Yes

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes

64-bit computing: The use of processors that have datapath widths, integer size, and memory addresses widths of 64 bits (eight octets). In 2003 64-bit CPUs were introduced to the (previously 32-bit) mainstream personal computer arena in the form of the x86-64 and 64-bit PowerPC processor architectures and in 2012 even into the ARM architecture targeting smartphones and tablet computers, first sold on September 20, 2013 in the iPhone 5S powered by the ARMv8-A Apple A7 SoC.

Yes

USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: The number of USB 3.0 ports (sockets). USB 3.0 was released in November 2008. The standard defines a new SuperSpeed mode with a signaling speed of 5 Gbit/s and a usable data rate of up to 4 Gbit/s. A USB 3.0 port is usually colored blue, and is backwards compatible with USB 2.0.

2

DC input voltage:

5

PCI version:

2.0

PCI Express interface data lanes:

x1

Processor cache:

512 KB

Board dimensions:

85 x 49

MPI CSI interface:

Yes

MPI DSI interface:

Yes

On/off button:

Yes

Bluetooth Low Energy (BLE):

Yes

Other features

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

4

Integrated LAN:

Yes

Weight & dimensions

Depth: The distance from the front to the back of something.

49 mm

Width: The measurement or extent of something from side to side.

85 mm

Power

Input current:

5

BIOS

Real-time clock (RTC):

Yes

Storage

Compatible memory cards: Types of memory cards which can be used with this product.

MicroSD (TransFlash)

Processor

Processor model: The model number for the processor in a computer.

Arm Cortex-A76

Processor manufacturer: The manufacturer that produced the processor.

ARM

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

USB version: Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

2.0/3.2 Gen 1 (3.1 Gen 1)

USB ports quantity:

2

Network

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.0

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 5 (802.11ac)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Memory

Maximum internal memory: The maximum internal memory which is available in the product.

16 GB

Internal memory type: The type of internal memory such as RAM, GDDR5.

LPDDR4x-SDRAM
