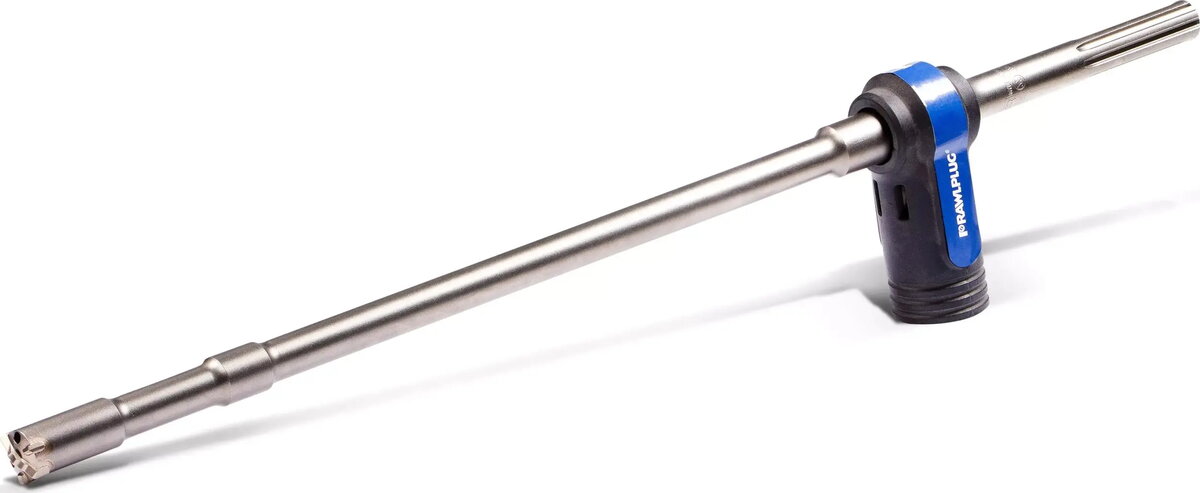

Drill bit RAWLPLUG TURBODRILL SDS Max 32 x 540/690 mm

RAWLPLUG TURBODRILL SDS Max 32 x 540/690 mm is a solid carbide-tipped rotary drilling tool designed for heavy-duty concrete, masonry and stone applications. The 32 mm diameter with a 540 mm working length and 690 mm overall length provides reach for deep anchoring and through-holes. The SDS Max shank ensures secure engagement in compatible rotary hammers and efficient transmission of impact energy for reliable drilling performance on construction and installation sites.

Advantages

The RAWLPLUG TURBODRILL SDS Max combines a robust carbide tip with a flute geometry optimised for rapid dust evacuation, reducing clogging and improving drilling speed. The long working length allows deeper holes without changing tools, while the SDS Max shank ensures quick mounting and firm retention in rotary hammers. The drill bit is built to withstand repeated impact drilling into reinforced concrete and natural stone, offering consistent hole dimensions and extended tool life when used as recommended.

Suitable for

• Drilling deep anchor holes in concrete and masonry
• Through-drilling for pipe and cable passages
• Installation of chemical and mechanical anchors
• Work on reinforced concrete and natural stone

Key specifications

• Diameter: 32 mm
• Working length: 540 mm
• Overall length: 690 mm
• Shank type: SDS Max compatible
• Tip: carbide-tipped for masonry and concrete
• Flute design: optimised for dust removal during rotary impact drilling

How to use

Install the bit into an SDS Max rotary hammer according to the tool manufacturer's instructions, ensuring the shank locks securely. Select rotary or rotary-percussion mode depending on the material and application. Start drilling at low speed to establish a centered hole, then increase speed and apply steady, moderate pressure; avoid excessive force that can overheat the tip. Periodically withdraw the bit to clear dust and debris, especially for deep holes. After use, clean the flutes and tip and store the bit in a dry place to prevent corrosion.

Usage recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection, dust mask) and secure workpieces before drilling. Match drill speed, hammer energy and feed pressure to the base material; reduce impact mode for brittle stone and use full rotary-percussion for reinforced concrete. For through-holes, drill from both sides when possible to reduce blowout and improve hole quality.
