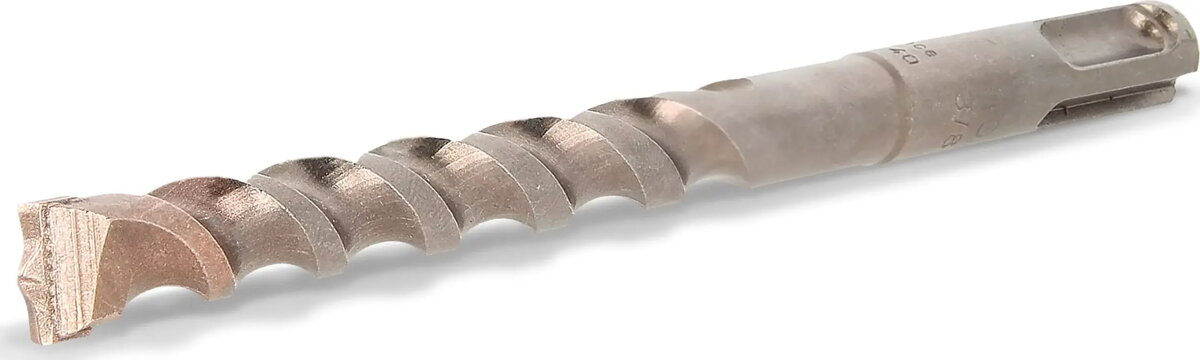

Drill Bit RAWLPLUG TURBODRILL SDS Max 45 x 400 x 540 mm

RAWLPLUG TURBODRILL SDS Max 45 x 400 x 540 mm is a long masonry drill bit designed for use with SDS Max rotary hammers. With a 45 mm diameter, 400 mm working length and 540 mm overall length, it enables deep anchoring, through-holes and large-diameter drilling in concrete, stone and masonry. The SDS Max shank ensures secure engagement with compatible power tools and reliable power transfer for heavy-duty rotary-percussion applications.

Advantages

This TURBODRILL bit combines a robust carbide tip and reinforced flute geometry to provide stable drilling performance in reinforced and non-reinforced concrete. The long working length allows deep installations without the need for extensions, while the SDS Max connection delivers quick, secure fitting and efficient energy transfer. The bit is engineered for durability under sustained load, reducing the frequency of replacements on demanding jobsites.

Suitable for

• Drilling large-diameter holes in concrete and reinforced concrete
• Creating through-holes in masonry and stone
• Deep anchoring for heavy-duty fixtures and structural anchors
• Preparation of holes for installation of sleeves, pipes and conduits

Key specifications

• Diameter: 45 mm
• Working length: 400 mm
• Overall length: 540 mm
• Shank type: SDS Max
• Application materials: concrete, reinforced concrete, stone and masonry

How to use

Install the bit into an SDS Max compatible rotary hammer according to the tool manufacturer's instructions, ensuring the tool is switched off and unplugged or battery removed during fitting. Mark the drilling position, start at low speed to establish the hole, then apply steady pressure with the hammer in rotary-percussion mode appropriate for masonry. Clear dust regularly from the hole to maintain drilling efficiency and prevent bit overheating. After completing the hole, withdraw the bit while the tool is running briefly to clear remaining debris.

Usage recommendations

Use appropriate personal protective equipment including safety glasses, hearing protection and dust mask. For reinforced concrete, start with a pilot point and use controlled pressure to avoid bit bending. Match drill speed and hammer settings to the base material and pause periodically when performing prolonged drilling to allow the bit to cool and to remove chips.
