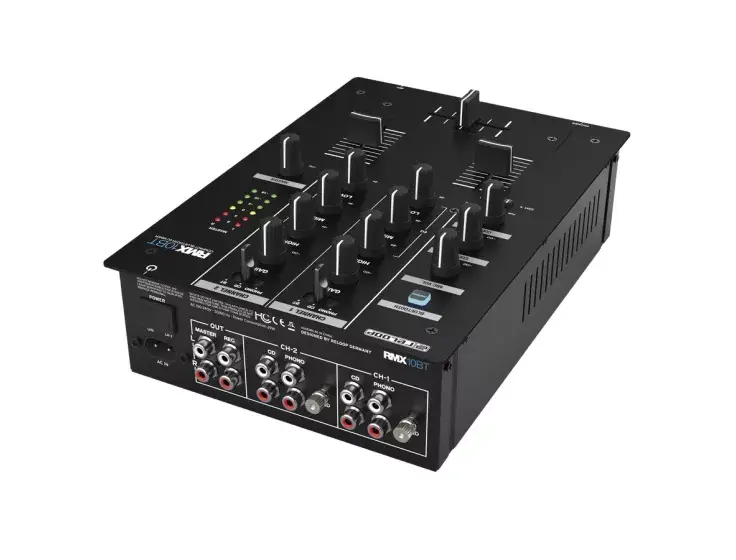

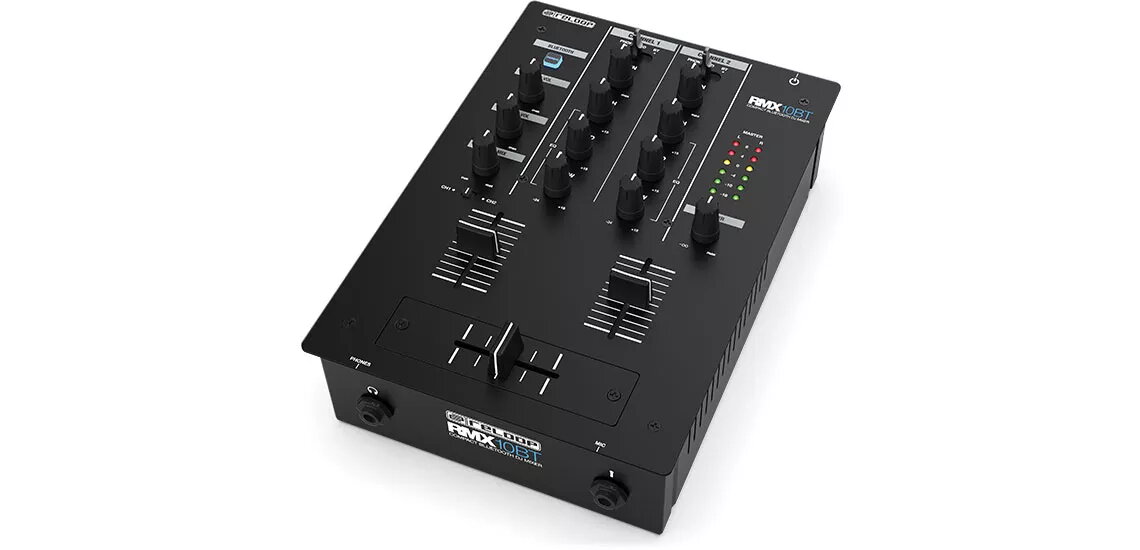

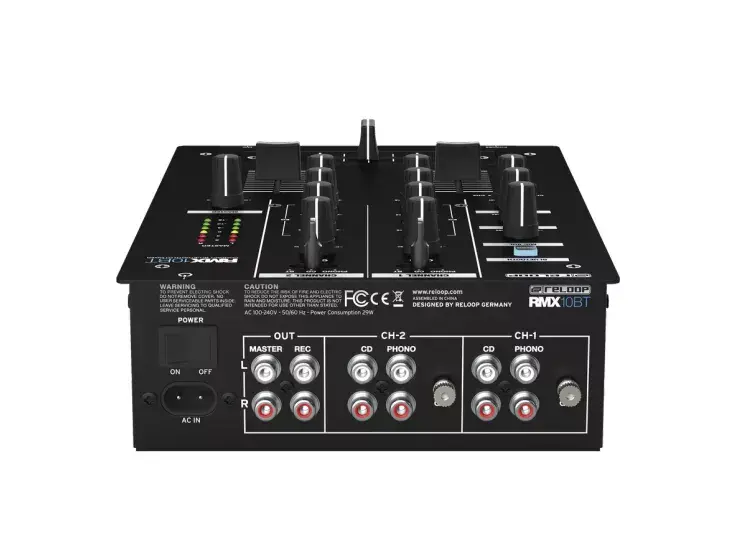

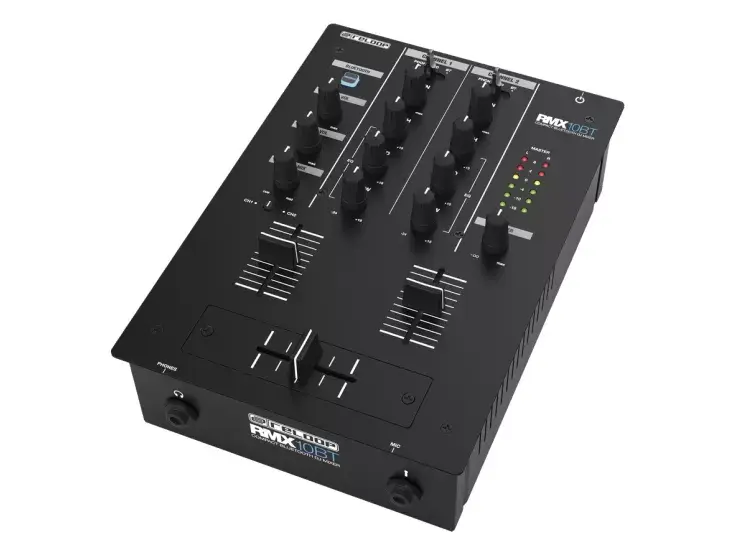

Audio mixer Reloop RMX-10 BT, 2-channel mixer with Bluetooth, 6.3 mm headphone output

The Reloop RMX-10 BT is a compact 2-channel audio mixer designed for small DJ setups, desktop mixing and podcast production. It integrates Bluetooth for wireless playback from smartphones or tablets and provides a dedicated 6.3 mm headphones output with volume and cue-mix control. The mixer includes two line channels with gain and 3-band EQ, a user-replaceable 45 mm crossfader, smooth 45 mm line faders, a 6.3 mm microphone input with independent level control, LED level meters for the master output and a robust all-metal housing. The unit operates from AC mains (100–240 V, 50–60 Hz) and features phantom power support for compatible microphones.

Advantages

The integrated Bluetooth interface allows wireless audio streaming directly to the mixer and can route the signal to both channels for flexible source management. Physical controls include individual gain knobs and a three-band EQ per channel for precise tonal shaping at 100 Hz, 1 kHz and 10 kHz, while smooth line faders and a user-replaceable 45 mm crossfader support reliable hands-on mixing. A 6.3 mm headphones output with dedicated volume and cue-mix makes monitoring straightforward, and the metal construction adds durability for desktop and portable use.

Suitable for

• Small DJ booths and mobile DJ setups
• Home and desktop DJ practice
• Podcast recording and live streaming with multiple sources
• Background music playback with smartphone or tablet via Bluetooth
• Microphone-based applications requiring phantom power

Key specifications

• Channels: 2 line channels with individual gain control
• EQ: 3-band per channel (100 Hz, 1 kHz, 10 kHz)
• Bluetooth: integrated wireless playback, routable to both channels
• Faders: smooth line faders and 45 mm user-replaceable crossfader
• Headphones: 6.3 mm output with volume control and cue-mix function
• Microphone input: 6.3 mm jack with separate level control and phantom power capability
• Power: AC operation, 100–240 V input, 50–60 Hz, typical consumption 3.5 W
• Construction: all-metal chassis with LED master level indicators
• Dimensions: 180 × 260 × 70 mm

How to use

Connect the mixer to AC mains and switch it on. Pair a smartphone or tablet via the integrated Bluetooth interface and select the mixer as the playback device; the Bluetooth signal can be routed to either or both channels depending on your source routing. Connect turntables, media players or line-level devices to the line inputs and set each channel’s gain and 3-band EQ to achieve the desired tonal balance. Use the crossfader and line faders for mixing between channels and monitor the output using the 6.3 mm headphones output with the cue-mix control. If using a condenser microphone, enable phantom power and adjust the mic input level accordingly. Monitor master output levels via the LED level indicators to avoid clipping.

Usage recommendations

For reliable Bluetooth performance, keep the paired device within a clear line of sight and minimize interference from other wireless devices. Use the gain controls and LED meters to set clean input levels before applying EQ or effects. Replace the crossfader with a compatible user-replaceable unit if you require a different curve or wear replacement. When using condenser microphones, confirm phantom power requirements and switch phantom power on only when a compatible microphone is connected.
