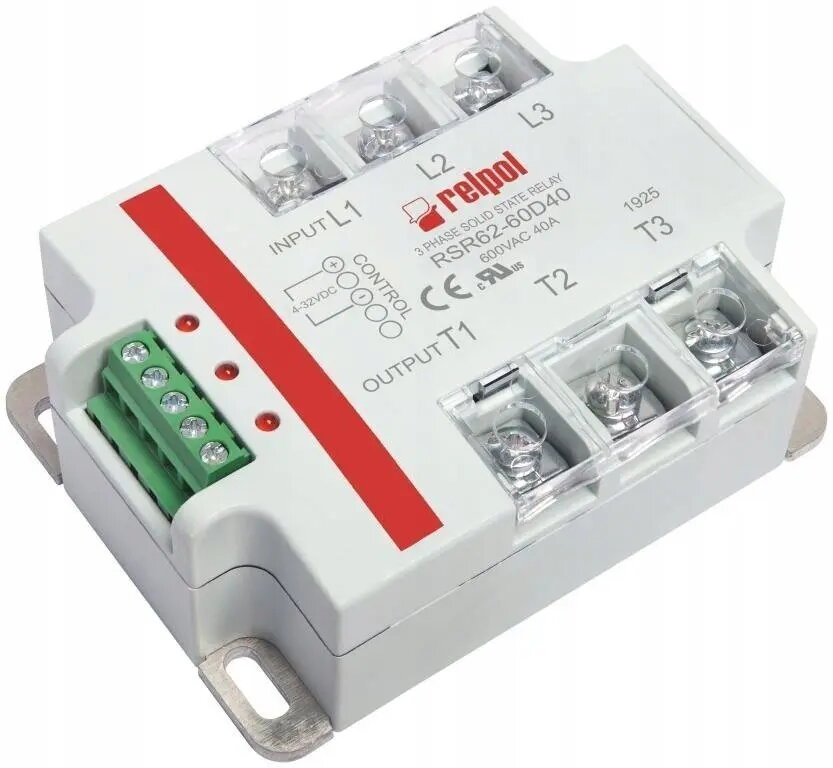

The Relpol RSR62-60D40 is a high-performance three-phase solid state relay engineered for robust and reliable switching in industrial environments. Designed to handle demanding electrical loads, this relay provides efficient control for three-phase systems, ensuring consistent performance and long-term durability in automation applications.
Advantages
This solid state relay offers significant benefits due to its lack of moving parts, which results in a much longer operational lifespan compared to traditional electromechanical relays. It provides high-speed switching capabilities and silent operation, making it an excellent choice for noise-sensitive environments. The device ensures excellent electrical isolation between the control and load circuits, enhancing safety and protecting sensitive control electronics from voltage spikes or interference.
Suitable for
- Industrial automation and control systems
- Heating element control in three-phase circuits
- Motor starting and control applications
- Lighting control systems
- Process control equipment
When it may not be suitable
This relay is not suitable for switching DC loads, as it is specifically designed for AC voltage applications. Additionally, it should not be used in environments where the ambient temperature exceeds the manufacturer's specified thermal limits without adequate cooling measures, as this could lead to premature failure.
Key specifications
- Output voltage: 600V AC
- Control voltage: 4-32V DC
- Phase configuration: Three-phase
- Switching type: Solid state
How to use
Installation should be performed by qualified personnel in accordance with local electrical regulations. Connect the control signal wires to the input terminals, ensuring the polarity is correct within the 4-32V DC range. Connect the three-phase load to the output terminals. It is essential to mount the relay on a suitable heat sink to dissipate heat generated during operation, as solid state relays can become hot under load.
What to consider before purchase
- Verify that your load current does not exceed the relay's rated capacity.
- Ensure that a compatible heat sink is available for your mounting configuration.
- Confirm that the control signal source provides a stable DC voltage within the specified range.
- Check the environmental conditions to ensure they are within the operating temperature limits.
Usage recommendations
To maximize the service life of the Relpol RSR62-60D40, always ensure proper ventilation and use an appropriately sized heat sink. Regularly inspect electrical connections to ensure they remain tight and free from oxidation.
