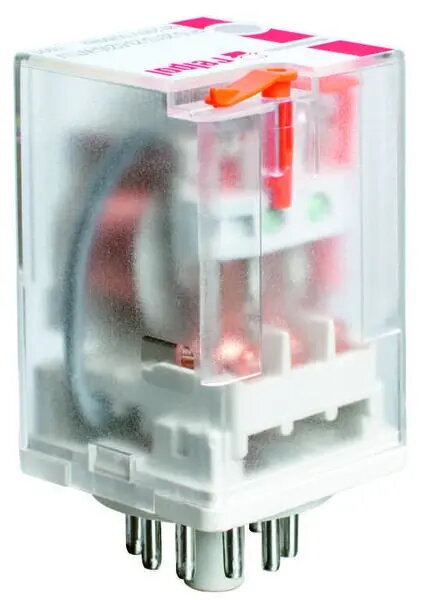

Industrial relay Relpol R15-2012-23-5230-WT 2P 10A 230V AC

Relpol R15-2012-23-5230-WT is an industrial electromagnetic control relay with a compact 2-pole design. It provides reliable switching of mains-voltage loads and is intended for use in control panels and automation equipment that require a small footprint and straightforward installation. The relay is designed for a 230 V AC coil and has a rated switching current suitable for common control and switching tasks.

Advantages

The relay combines a compact housing with a clear contact configuration that simplifies wiring in densely populated control cabinets. Its construction is intended to provide stable operation under typical industrial conditions, with a rated switching current that covers many standard loads. The 2-pole contact arrangement enables switching of two circuits or provides changeover capability in control schemes. The product is compatible with standard relay sockets and mounting solutions used in industrial automation.

Suitable for

• Industrial control panels and switchboards
• Automation systems and programmable controllers
• Switching of resistive and small inductive mains-voltage loads
• Signal isolation and circuit changeover tasks

Key specifications

• Contact configuration: 2-pole (2P)
• Rated switching current: 10 A
• Coil voltage: 230 V AC
• Actuation type: electromagnetic
• Intended mounting: socket or panel-mounted relay holders (standard industrial footprint)
• Typical use environment: industrial control and automation

How to use

Install the relay into a compatible relay socket or holder following the socket manufacturer's instructions. Ensure the control circuit supplies the correct 230 V AC coil voltage and verify wiring to the contact terminals according to the system schematic. Use appropriate protective devices such as fuses or circuit breakers for connected loads and observe safe isolation procedures before servicing. Verify proper operation by energizing the coil briefly and checking contact switching under no-load conditions, then test with the intended load.

Usage recommendations

For reliable long-term operation, avoid exceeding the rated switching current of 10 A and use suppression components when switching highly inductive loads. Maintain clean contact environments and ensure proper socket retention and mounting in control cabinets to reduce vibration-related wear.
