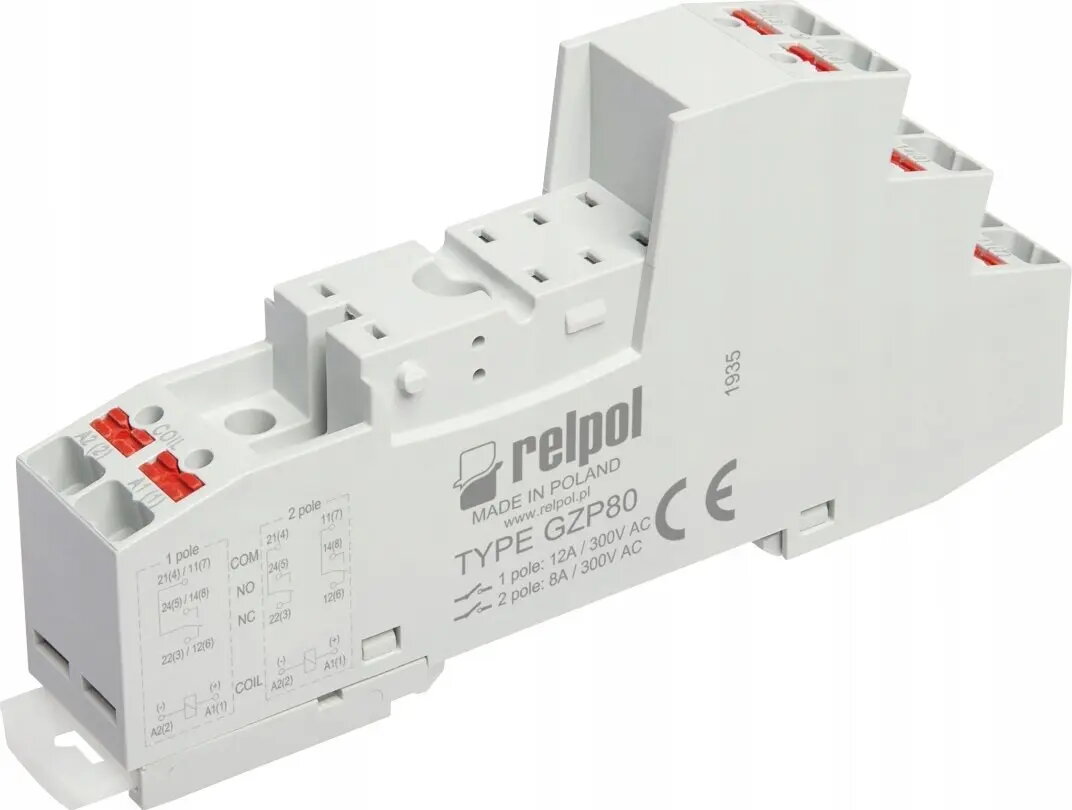

The Relpol GZP80 is a professional-grade relay socket engineered for seamless integration with RM84, RM85, and RM85 Inrush series relays. Featuring advanced Push-in terminal technology, this socket facilitates rapid and tool-free wiring, significantly reducing installation time while maintaining high connection integrity. Its compact and durable design is specifically tailored for demanding industrial environments, ensuring stable performance and long-term reliability in electrical control panels and automation systems.
Advantages
The primary benefit of the GZP80 socket is its Push-in connection system, which allows for direct insertion of rigid or ferruled wires without the need for screwdrivers. This design not only accelerates the assembly process but also provides excellent vibration resistance, ensuring that connections remain secure even in high-movement environments. The robust housing material offers high thermal stability and electrical insulation, protecting the relay and the circuit from environmental stressors. Furthermore, the socket is designed for easy mounting on standard DIN rails, simplifying the organization of complex control cabinets.
Suitable for
- Industrial automation control systems
- Electrical panel assembly and cabinet wiring
- HVAC control equipment
- Building automation and lighting control
- General-purpose relay switching applications
This socket may not be suitable for applications requiring high-current connections beyond the rated capacity of the RM84/RM85 relay series. Additionally, it is not intended for use in environments with extreme moisture or corrosive gases unless housed within an appropriate IP-rated enclosure.
Key specifications
- Compatible relay series: RM84, RM85, RM85 Inrush
- Connection type: Push-in terminals
- Mounting style: DIN rail mount
- Material: High-grade flame-retardant plastic
- Design: Compact, space-saving footprint
To use the GZP80, mount the socket securely onto a standard 35mm DIN rail. Once positioned, insert the relay into the designated slots until it clicks into place. Connect your control and load wires by pushing them directly into the corresponding Push-in terminals. Ensure that the wire gauge used is within the manufacturer's specified range for optimal contact pressure and electrical conductivity.
What to consider before purchase
- Verify compatibility with your specific relay model (RM84 or RM85 series)
- Check the wire gauge requirements for the Push-in terminals
- Ensure the DIN rail space is sufficient for the socket dimensions
- Confirm the environmental conditions of the installation site
For optimal performance, ensure that all wires are stripped to the correct length before insertion into the Push-in terminals. Regularly inspect the connections during routine maintenance to ensure they remain free of debris and that the relay is firmly seated in the socket.
